Features
- Wide steps ensures safety, convenience and reduces fatigue when drives get on and off the forklift.
- The forklift interior is specially designed with plastic storage compartments for convenient storage of items such as water bottles, notebooks, etc.
- The removable side panel simplifies maintenance and inspections, while the integrated layout of electrical and other systems ensures streamlined upkeep and accessibility.
- Designed for high sensitivity, accuracy, reliability, and low power consumption, this forklift delivers a smarter, safer, and more efficient driving experience.
Forklift Truck Components

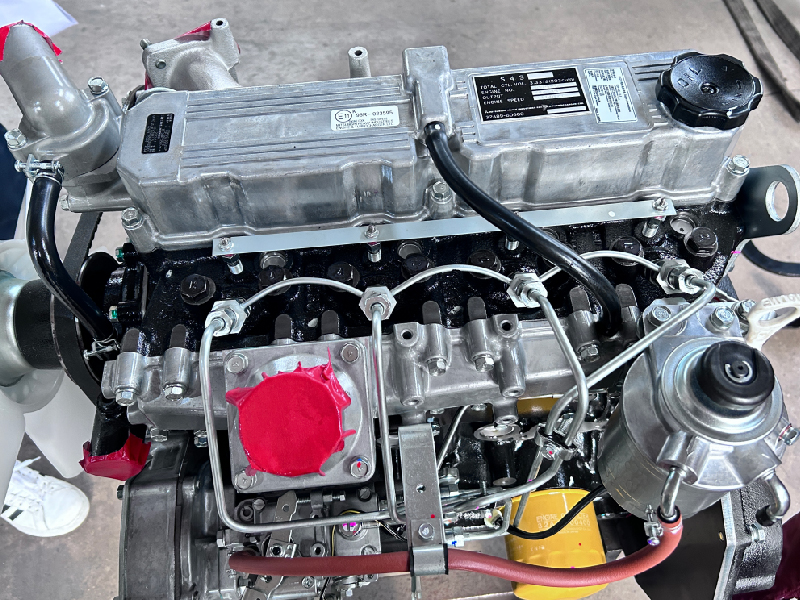

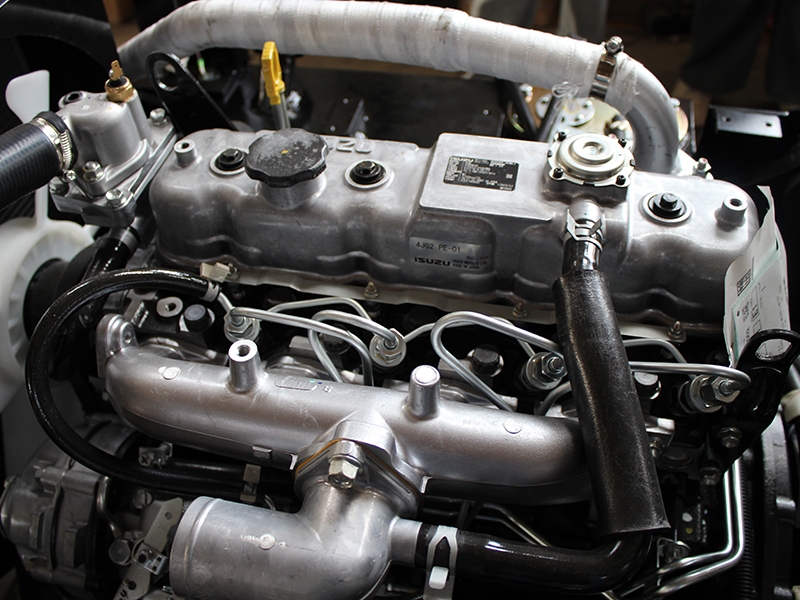

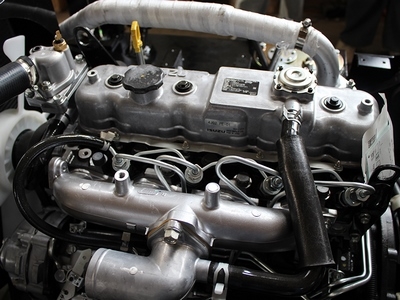

Engine (Optional)
With the option of advanced ISUZU, Mitsubishi, Yanmar, Kubota and Euro3/5 engines, it combines environmentally friendly performance with fuel efficiency and durability, ensuring reliable, long-lasting operation.

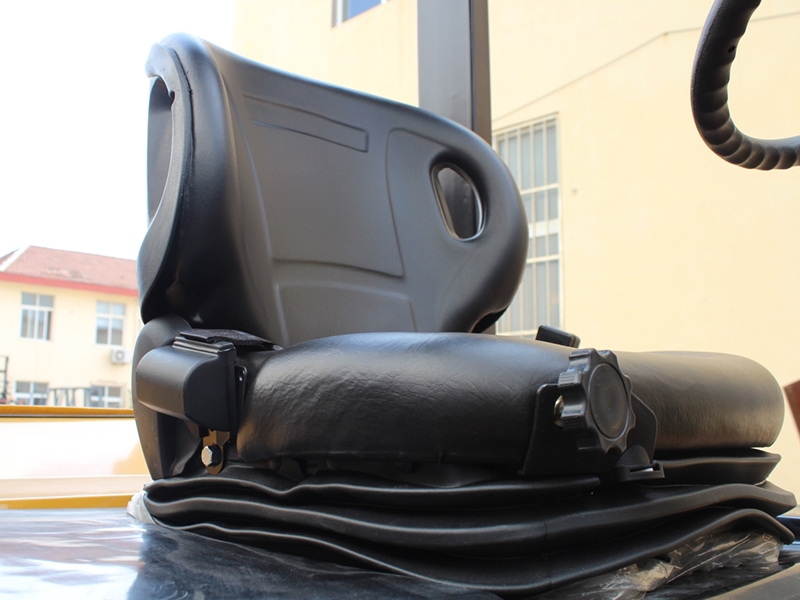

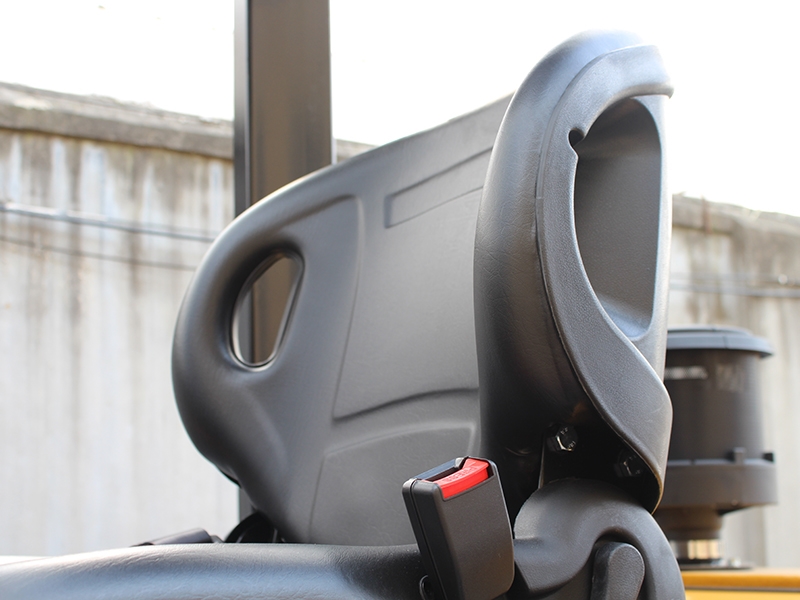

Seat (Optional)
Featuring an OPS system with ergonomic adjustments, it offers multiple settings to enhance operator comfort and reduce fatigue during long hours of operation.

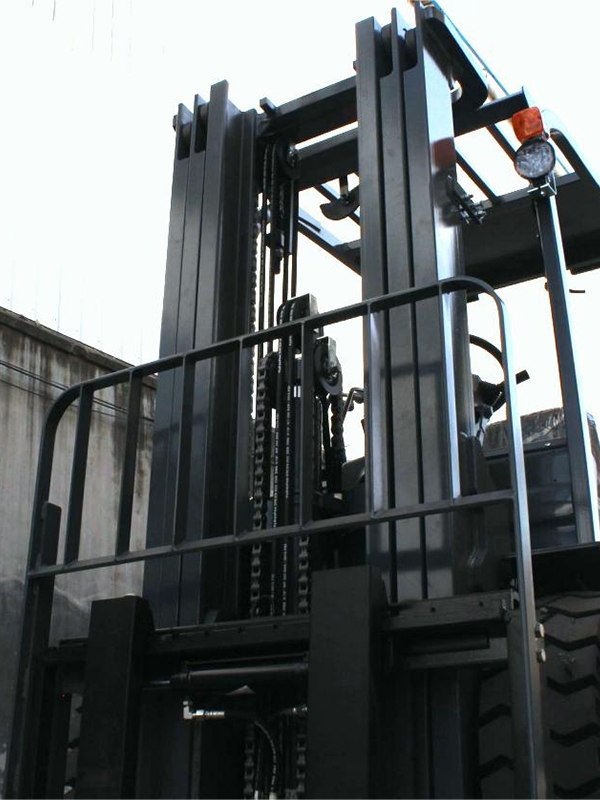

Mast (Optional)
Available with 2-3 stage standard masts and multi-stage full free lift masts, offering extensive customization options to meet a wide range of operational needs.

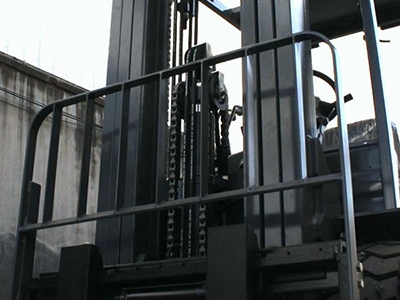

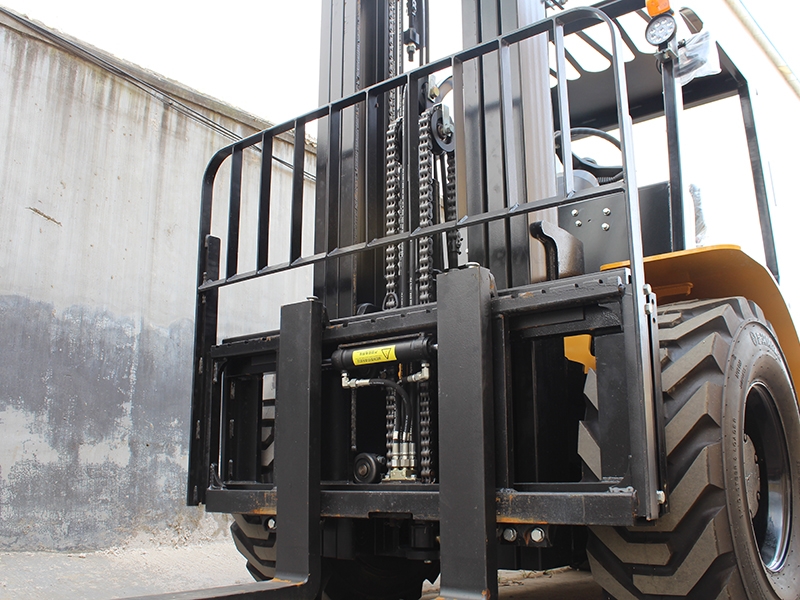

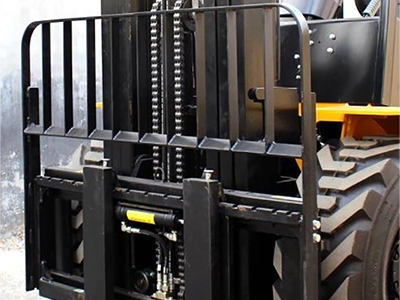

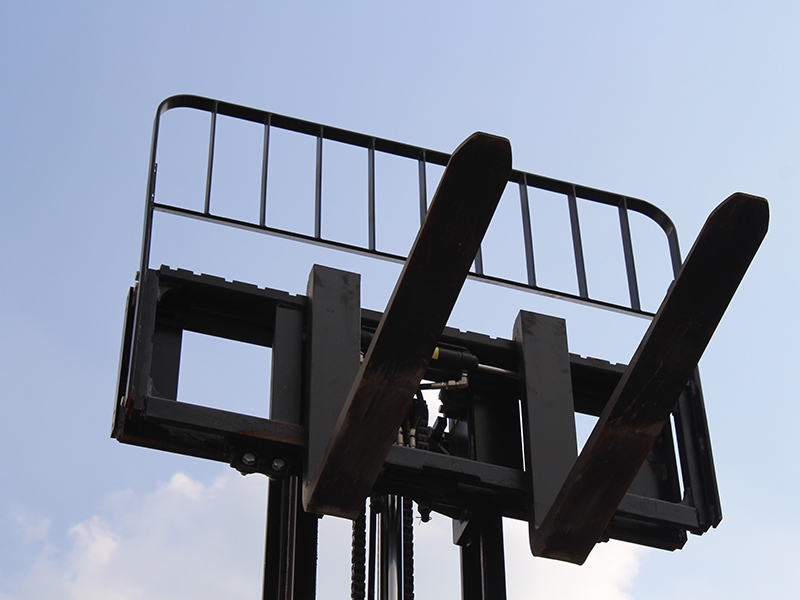

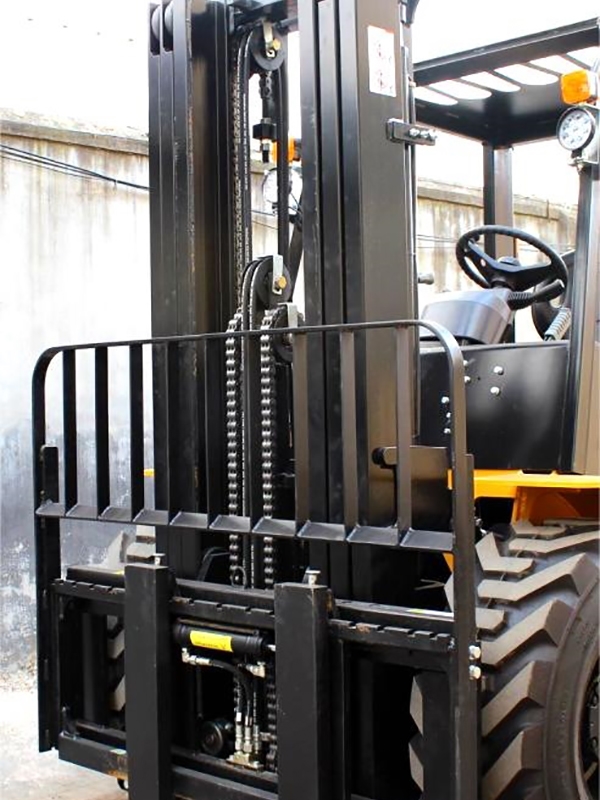

Load-Backrest
Designed with a load-backrest, this feature prevents cargo from slipping, enhancing safety during operation.

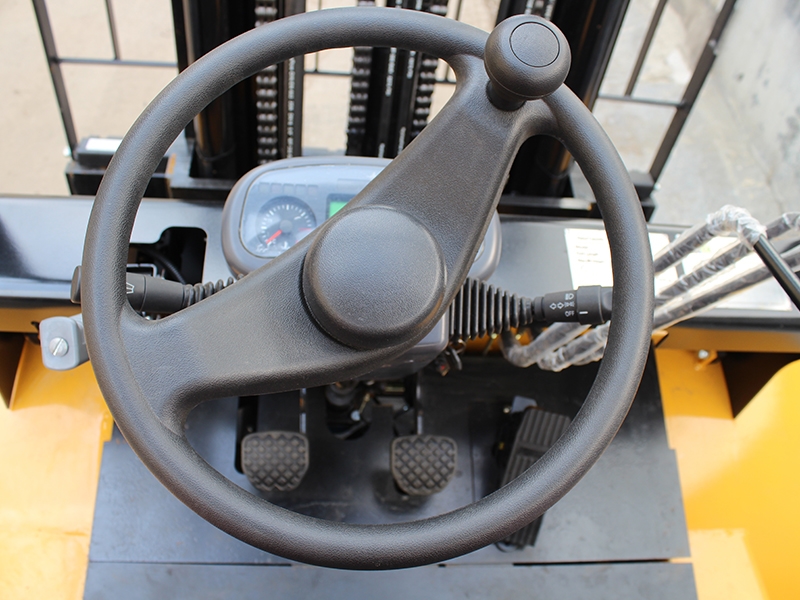

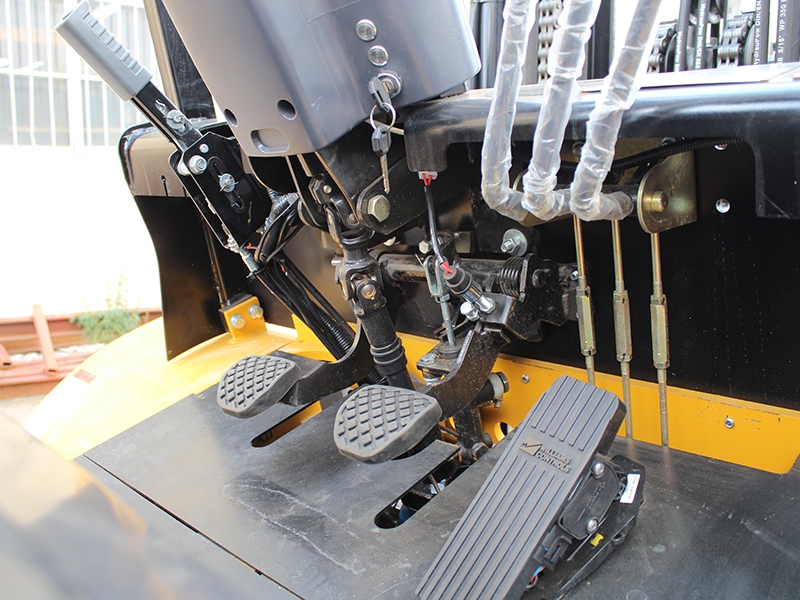

Control System (Optional)
The integrated dashboard, paired with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation for the driver.

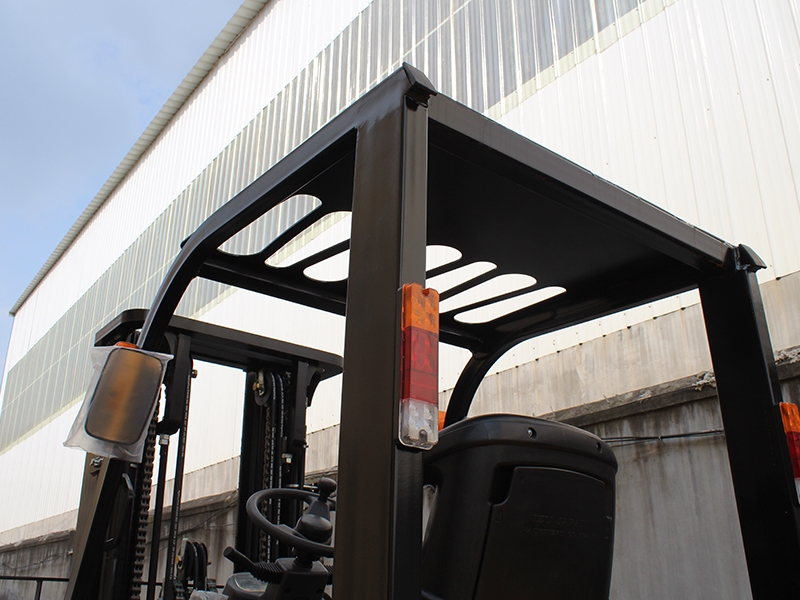

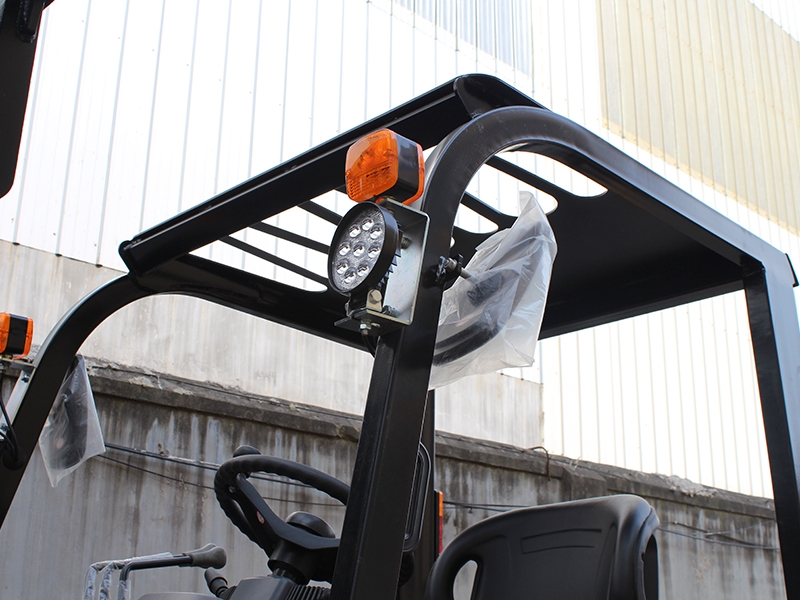

Overhead Guard
With driver safety at the forefront, it is offered with customizable options for extended width and height to meet specific operational needs, ensuring both safety and adaptability.

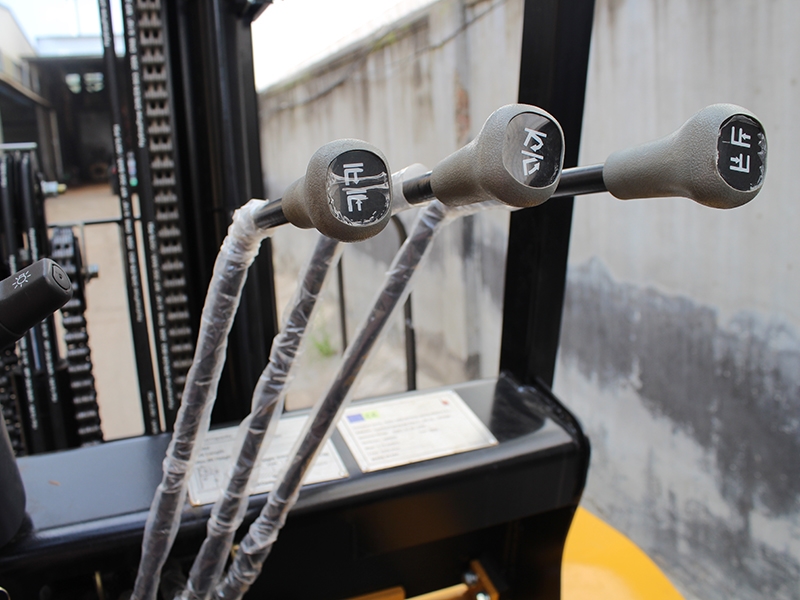

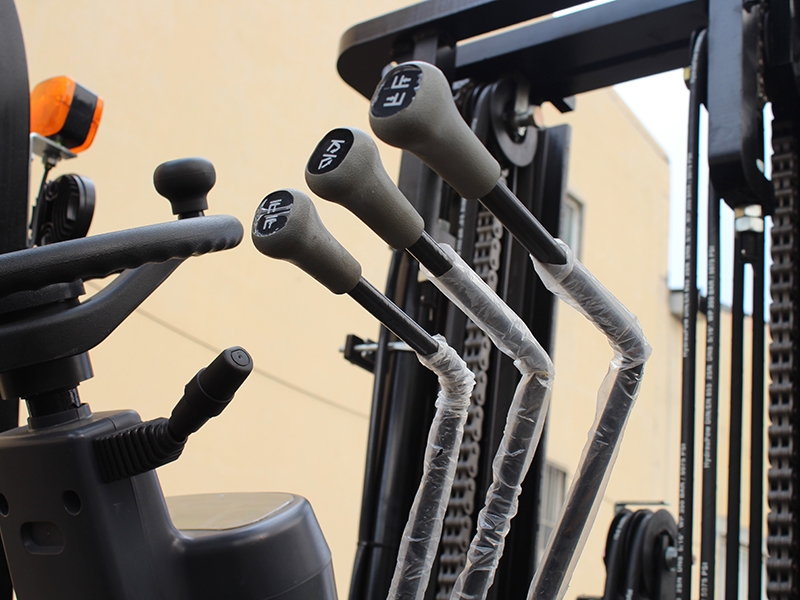

Control Valve
It is smartly designed, easy to use, and supports customization to meet each buyer's operational needs.

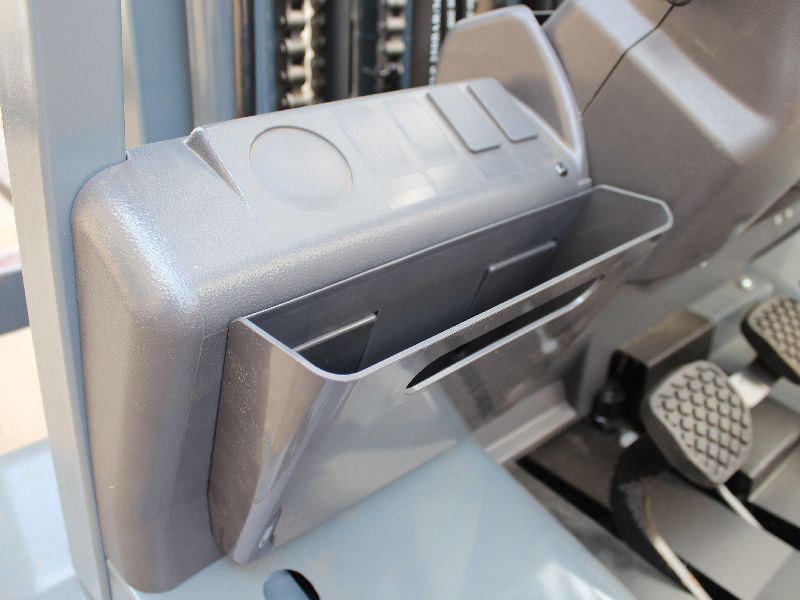

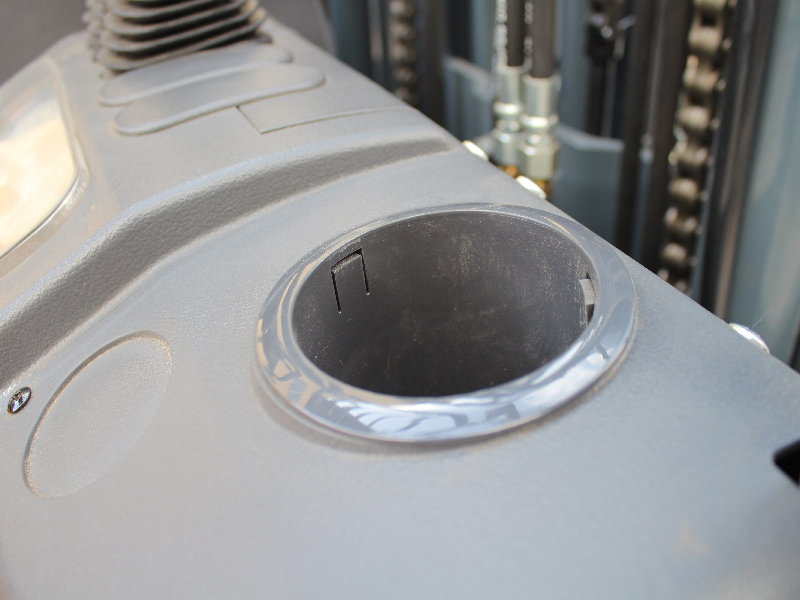

Storage Compartment
Designed with convenient storage, it includes compartments for small items like water bottles, documents, and pens, making them easily accessible during operation.
Applications
Material handling in limited space, such as factories and workshops.

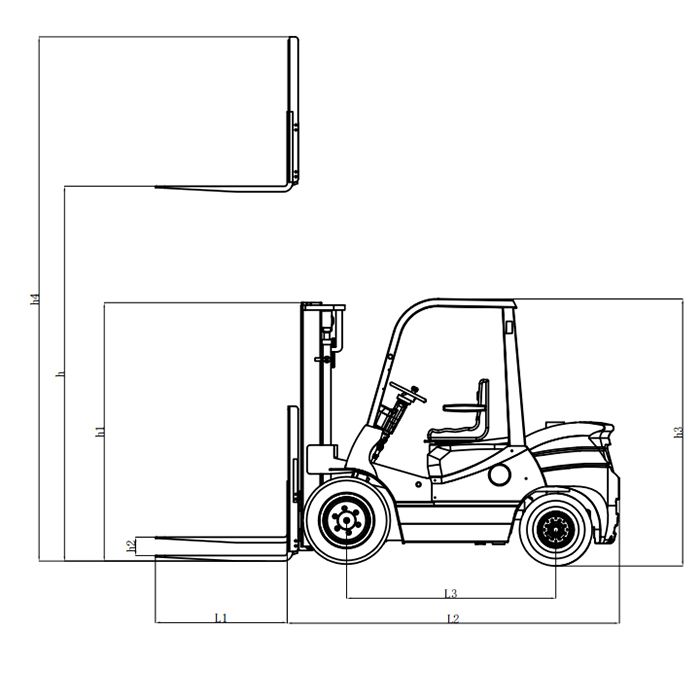

Technical Specifications

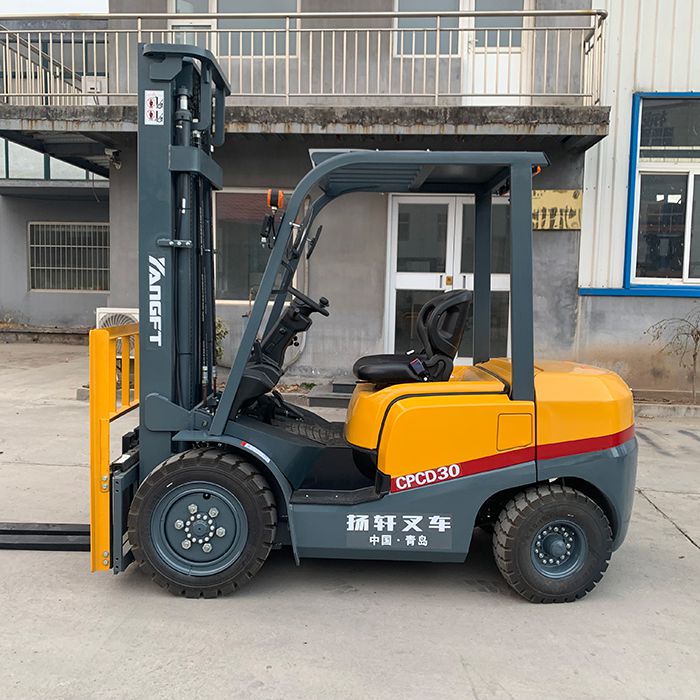

Model |
CPC(D)20
|
CPC(D)25
|
CPC(D)30
|
CPC(D)35
|
CPC(D)40
|
Characteristics |
Power |
|
|
|
Diesel |
Capacity |
|
|
kg |
2000 |
2500 |
3000 |
3500 |
4000 |
Load Centre |
|
|
mm |
500 |
500 |
500 |
500 |
500 |
Lift Height |
|
h |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |

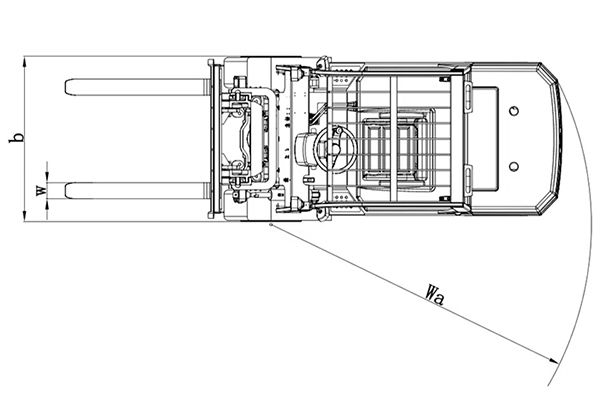

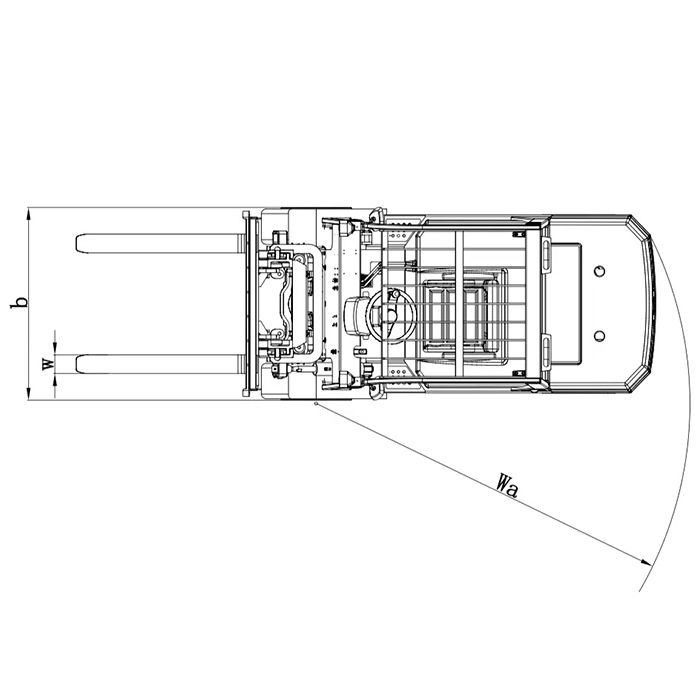

Min. Turning Radius |
|
Wa |
mm |
2240 |
2240 |
2445 |
2495 |
2530 |
Performance |
Travel Speed |
Load |
|
km/h |
17 |
17 |
19 |
19 |
19 |
Lift Speed |
Load |
|
mm/s |
500 |
500 |
450 |
450 |
380 |

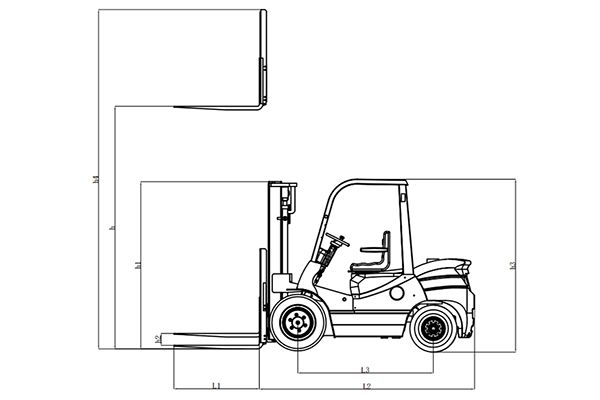

Dimensions |
Total Width |
|
b |
mm |
1160 |
1160 |
1225 |
1225 |
1250 |
Max. Lifting Height |
|
h4 |
mm |
4220 |
4220 |
4265 |
4265 |
4275 |
Mast Height |
|
h |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
Chassis |
Tyre |
Front |
|
|
7.00-12-12PR |
7.00-12-12PR |
28×9-15-12PR |
28×9-15-12PR |
250-15-16PR |
Rear |
|
|
6.00-9-10PR |
6.00-9-10PR |
6.50-10-10PR |
6.50-10-10PR |
6.50-10-10PR |
Wheelbase |
|
L2 |
mm |
1600 |
1600 |
1700 |
1700 |
1800 |
Service Weight |
No load |
|
kg |
3550 |
3750 |
4380 |
4680 |
5050 |
Power |
Engine |
Model |
|
|
ISUZU C240 |
ISUZU C240 |
ISUZU C240 |
ISUZU C241 |
ISUZU 4JG2 |
Rated power |
|
kW/r.p.m |
35.4/2500 |
35.4/2500 |
35.4/2500 |
35.4/2501 |
46/2450 |
Rated torque |
|
Nm/r.p.m |
138/1800 |
160/1800 |
138/1800 |
138/1800 |
186/1800 |
Number of cylinder |
|
|
4 |
4 |
4 |
4 |
4 |
What can light-duty forklifts transport?
- The light-duty forklifts can transport paper-making materials, tyres in automotive manufacturing plants and construction materials.
- Pay attention to the load capacity when using forklifts.
Which type of forklifts can be used in different work environments?
- Different types of forklifts feature different driving force, load capacity and efficiency. The proper utilization of them in different work environments can improve productivity and reduce labor costs.
- Please refer to our forklift recommendation for different industries, you may find the suitable choice.
