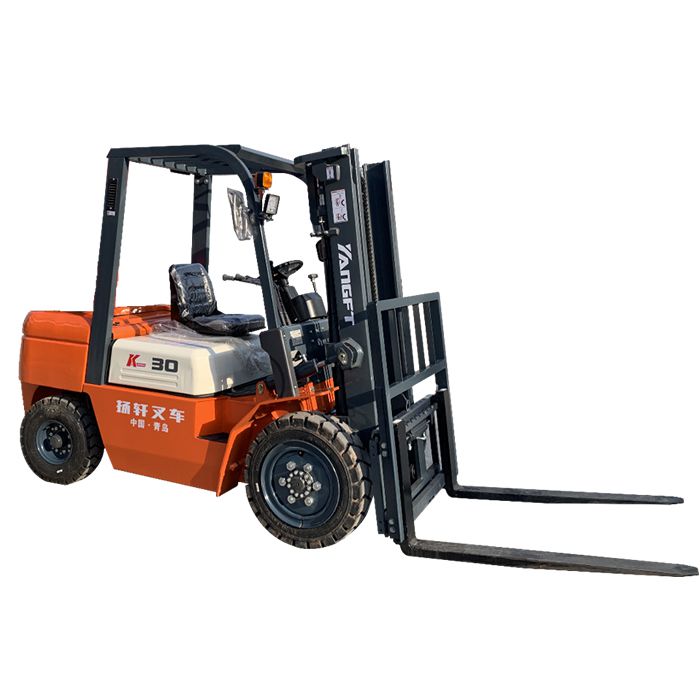

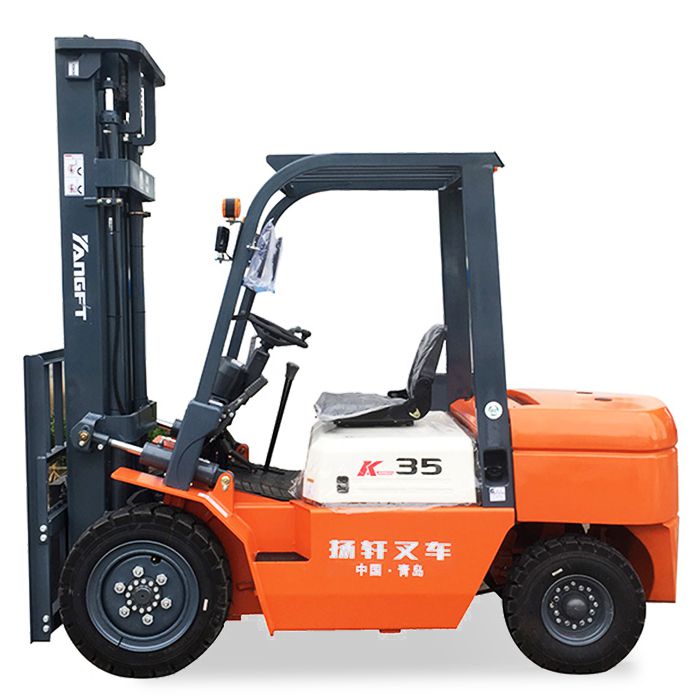

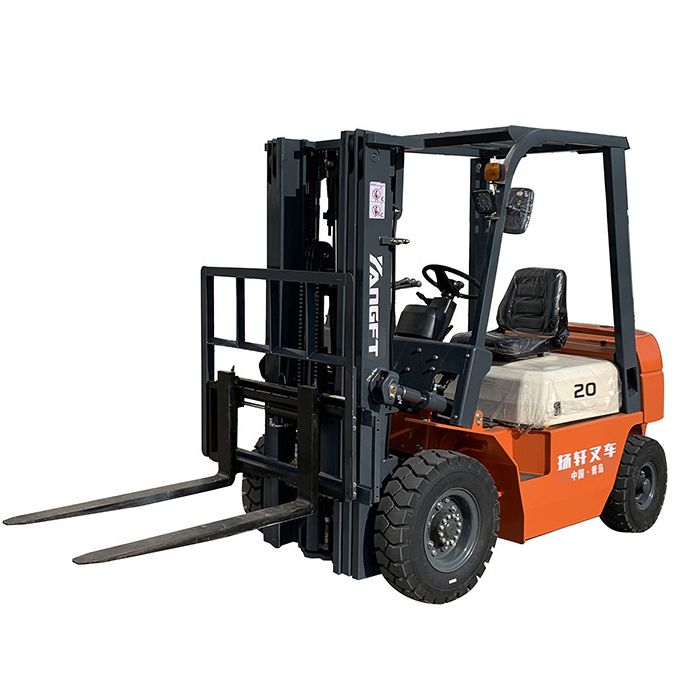

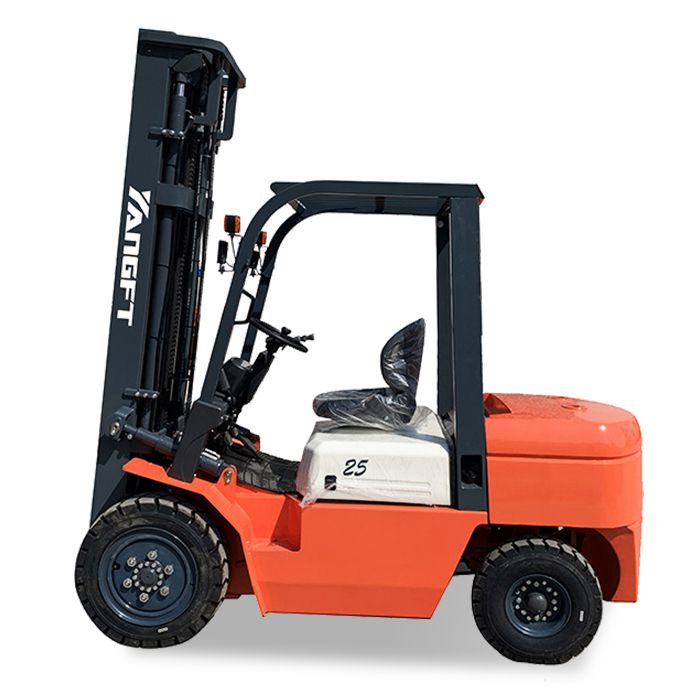

    K Series

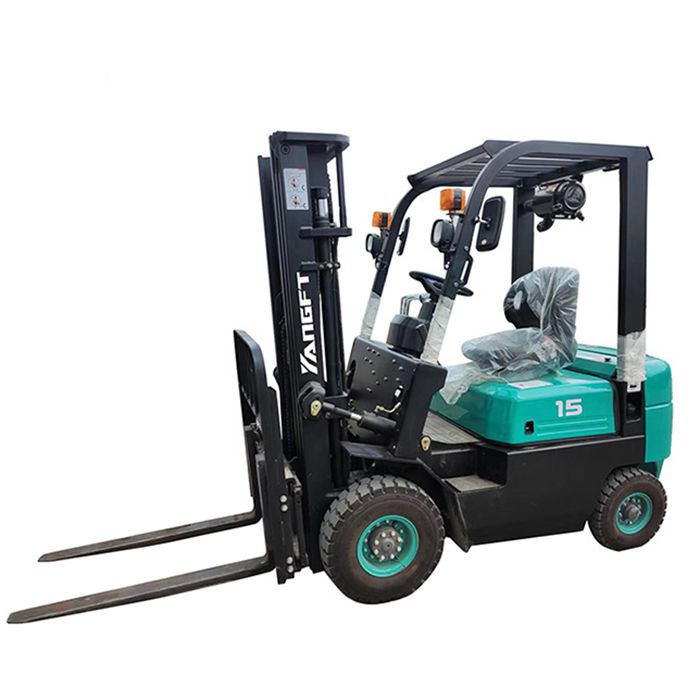

    The 4-cylinder diesel forklifts have the load capacity of 1.5 to 3.5 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 8 meters. This type of compact forklifts is widely used in limited space, such as factories and workshops.

    The K-series diesel forklifts merge modern design with high-performance capability, delivering value and efficiency at a competitive price.

    • Capacity1500-3500 kg
    • Lift Height3000 mm
    • Travel Speed19-20 km/h
    • Min. Turning Radius2190-2470 mm
    Request a Quote
    Features
    • The mast is enhanced to be durable and reliable, and designed to provide a wide vision that guarantees driving experience.
    • An LCD panel and a user-friendly interplay enable drivers to better control the forklift.
    • The new steering wheel adjustment mechanism greatly improves comfort and adjustment reliability.
    Applications

    Material handling operation in factories and workshops

    Forklift Truck Components
    • Engine (Optional)
    • Engine (Optional)

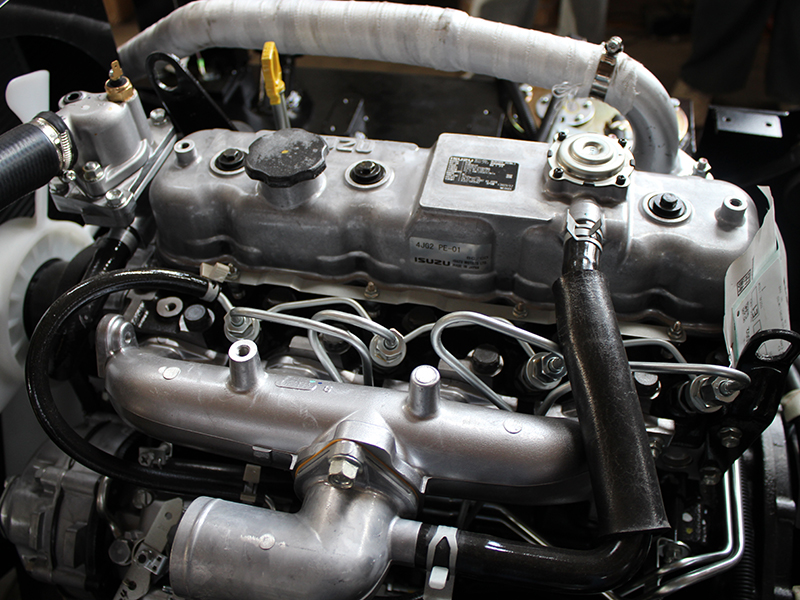

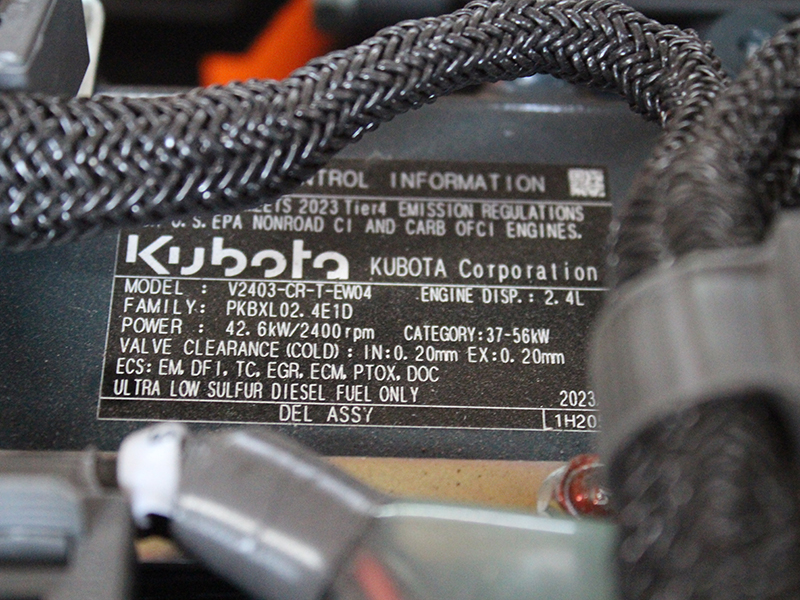

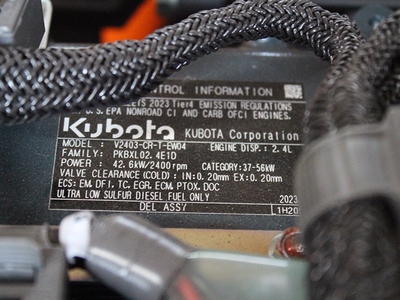

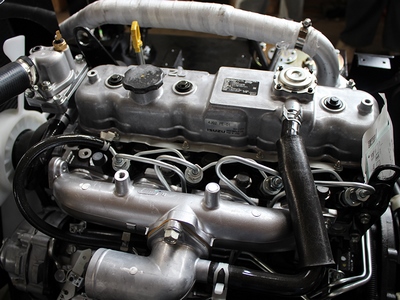

    Engine (Optional)

    Experience reliability and efficiency with optional advanced engine configurations, featuring renowned brands like ISUZU, Mitsubishi, Kubota, Yanmar, and Euro3/5. These engines deliver efficent performance with eco-conscious and cost-effective benefits. Built for easy maintenance, they’re designed to boost productivity with minimal downtime.

    • Seat (Optional)
    • Seat (Optional)

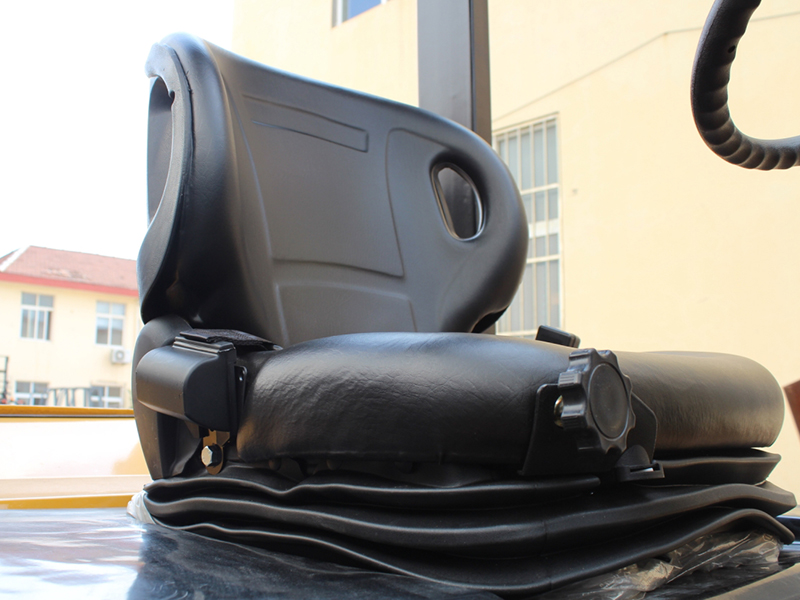

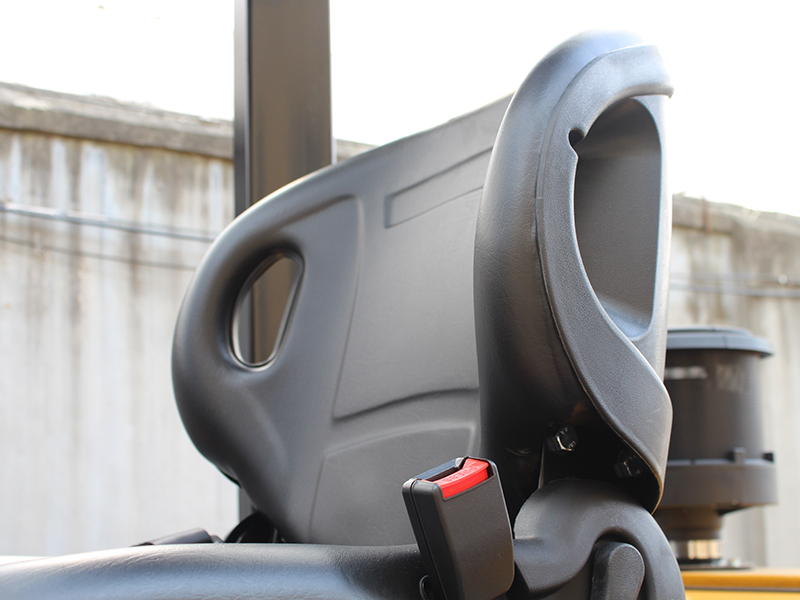

    Seat (Optional)

    Equipped with an OPS system and ergonomic design, this system offers multiple adjustable features to enhance comfort and reduce operator fatigue during extended use.

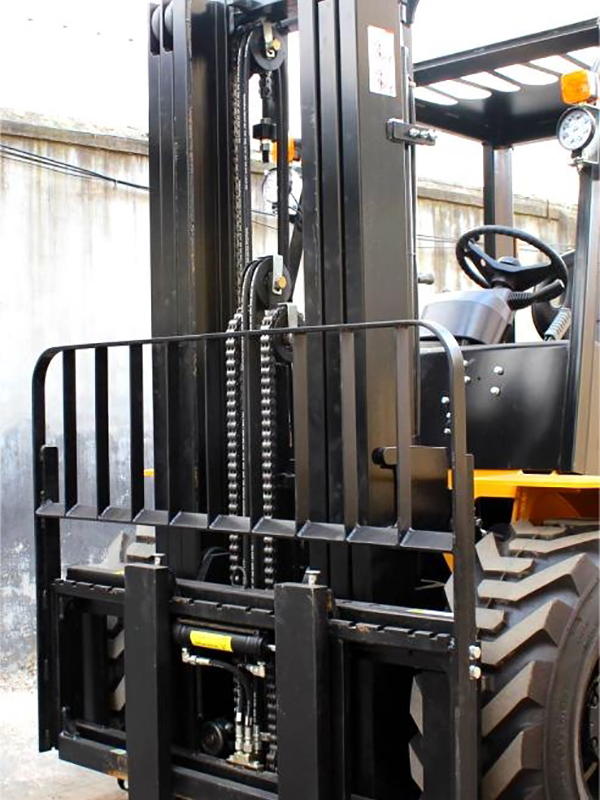

    • Mast (Optional)
    • Mast (Optional)

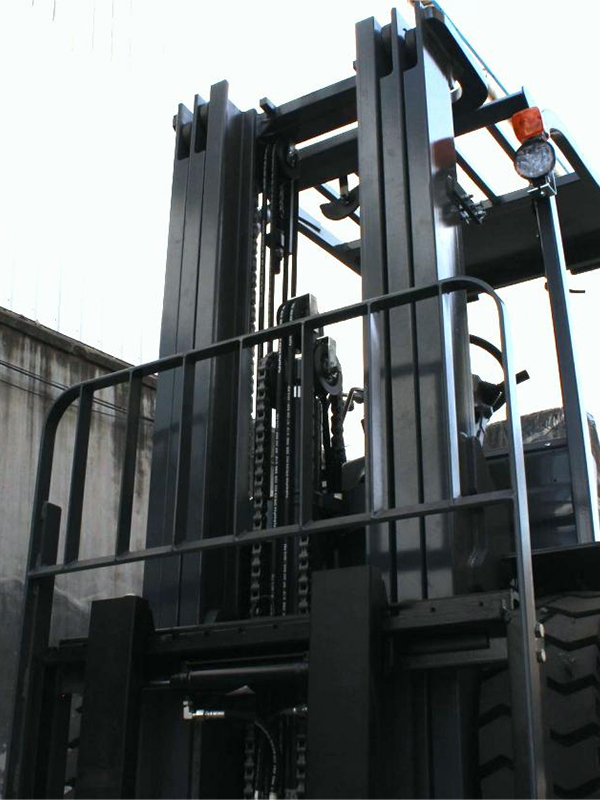

    Mast (Optional)

    Choose from our 2-3 stage standard mast or multi-stage full-free mast options, offering a high degree of customization to suit diverse operational needs.

    • Load-BackrestBackrest
    • Load-Backrest

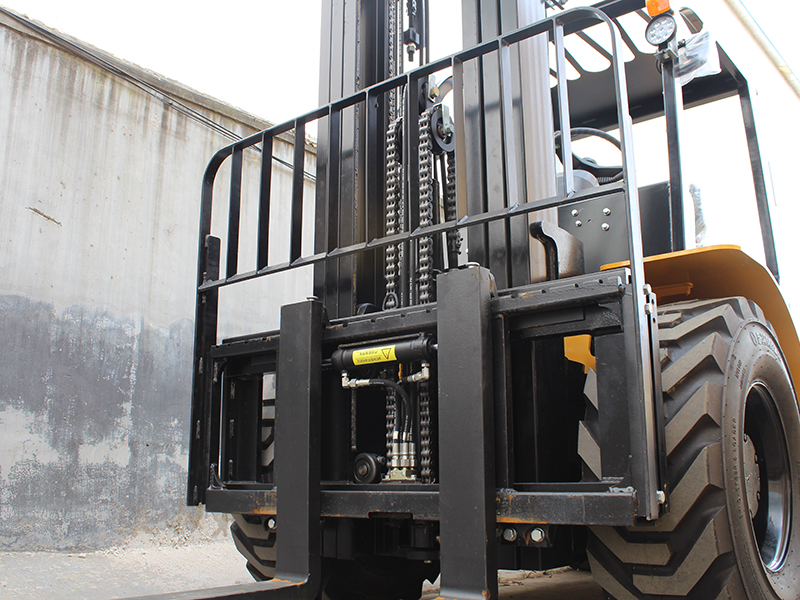

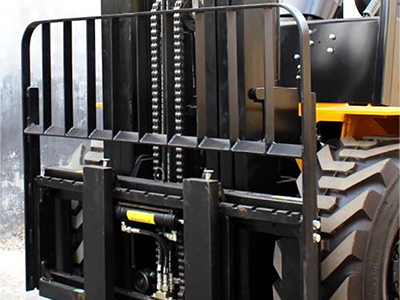

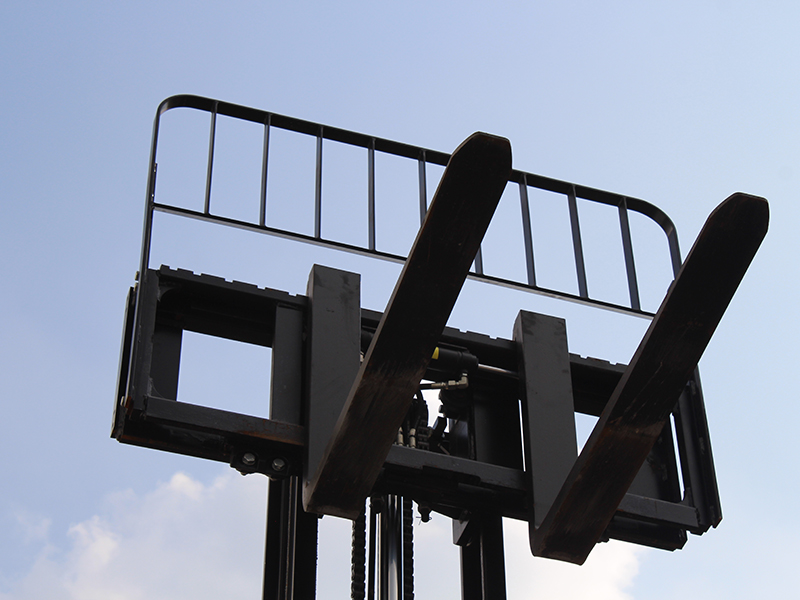

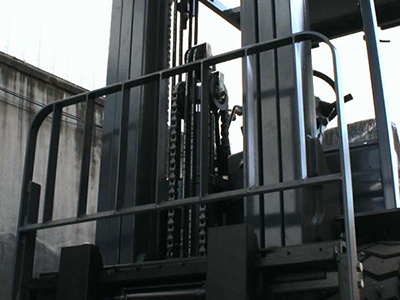

    Load-Backrest

    Designed to prevent cargo from slipping, this feature enhances safety throughout operation, providing greater stability and peace of mind.

    • Control system (Optional)
    • Control system (Optional)

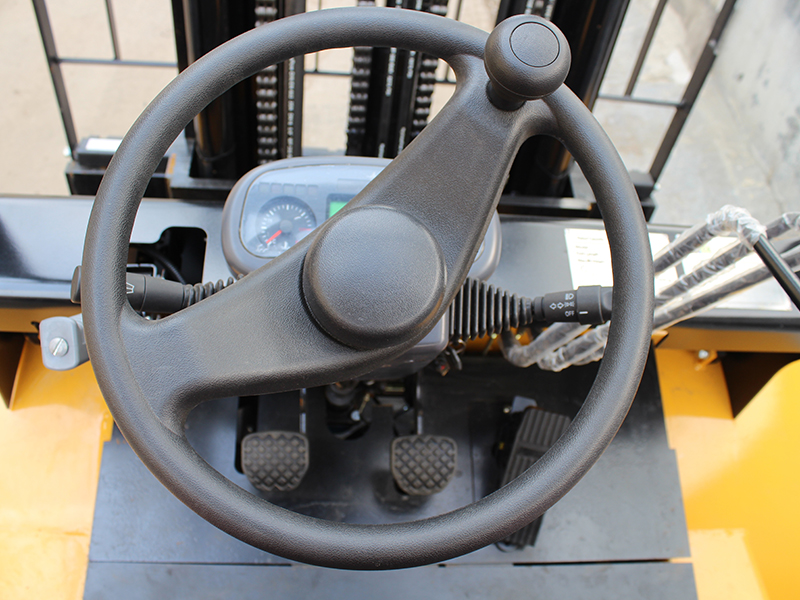

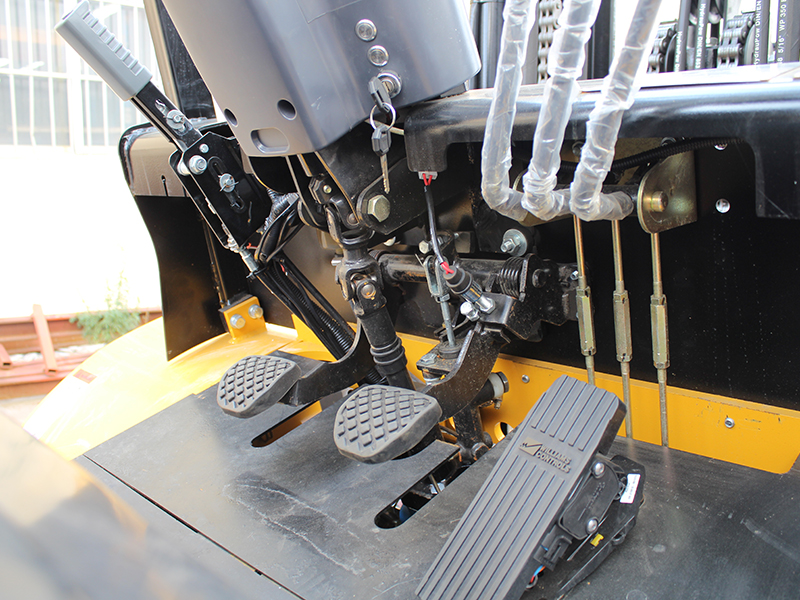

    Control System (Optional)

    The integrated dashboard, along with an ergonomic steering wheel and controls, offers safe and comfortable operation.

    • Overhead Guard
    • Overhead Guard

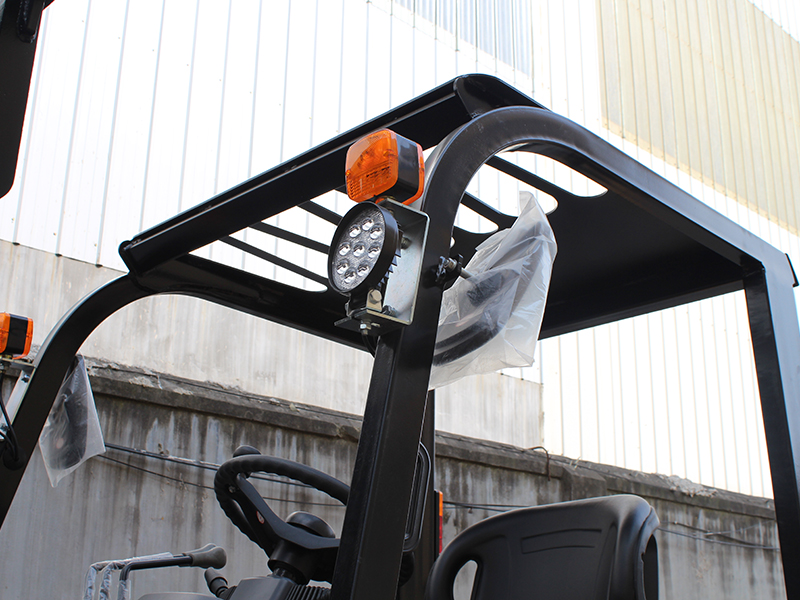

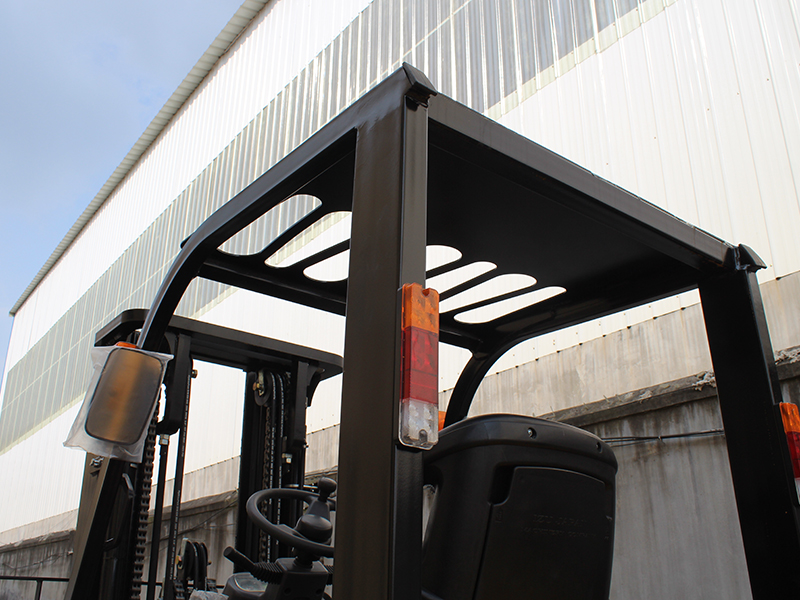

    Overhead Guard

    Engineered for enhanced driver safety, with options for extended width and height customization to meet specific operational requirements.

    • Control Valve
    • Control Valve

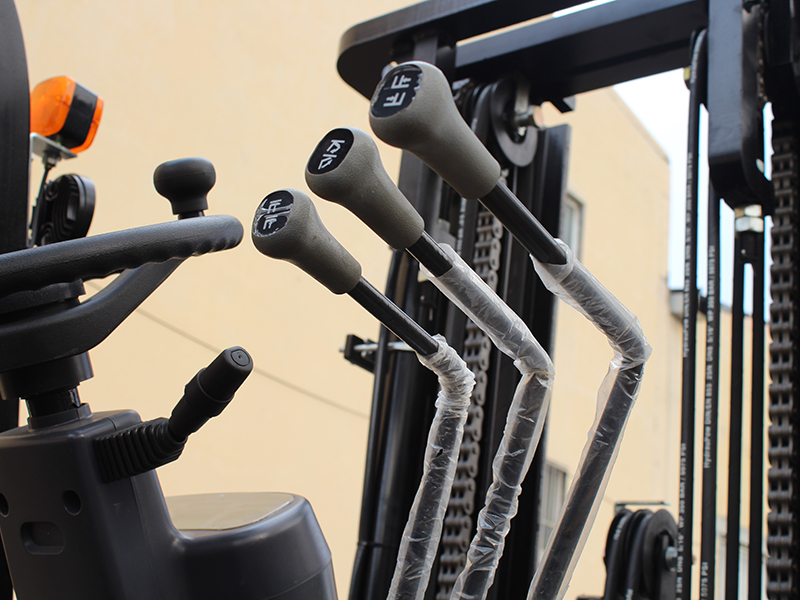

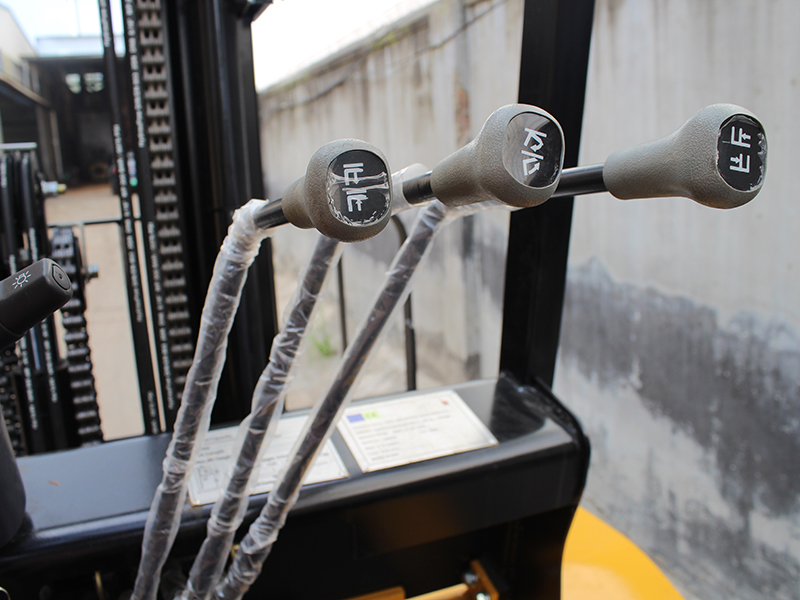

    Control Valve

    Built with a streamlined design for easy and intuitive operation, with customization options to fit unique needs.

    Technical Specifications
    Model CPC(D)15 CPC(D)20 CPC(D)25 CPC(D)30S CPC(D)30L CPC(D)35
    Characteristics Power Diesel
    Capacity kg 1500 2000 2500 3000 3300 3500
    Load Centre mm 500 500 500 500 500 500
    Lift Height mm 3000 3000 3000 3000 3000 3000
    Min. Turning Radius mm 2190 2190 2240 2400 2470 2470
    Performance Travel Speed Load km/h 19 19 19 20 20 20
    Lift Speed Load mm/s 500 500 500 480 480 480
    Max. Traction Power Load kW 17 17 18 20 22 22
    Dimensions Total Length With fork mm 3610 3600 3650 3770 3870 3870
    Without fork mm 2540 2530 2580 2700 2800 2800
    Total Width mm 1160 1160 1160 1225 1225 1225
    Max. Height mm 4220 4220 4220 4265 4265 4265
    Mast Height mm 2100 2100 2100 2100 2100 2100
    Chassis Tyre Front 7.00-12 7.00-12 7.00-12 28x9-15 28x9-15 28x9-15
    Rear 6.00-9 6.00-9 6.00-9 6.50-10 6.50-10 6.50-10
    Wheelbase mm 1600 1600 1600 1700 1800 1800
    Service Weight No load kg 3530 3530 3880 4350 4300 4605
    Power Engine Model Quanchai/Xinchai
    Rated power kW/r.p.m 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500
    Rated torque Nm/r.p.m 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900
    Cylinders 4 4 4 4 4 4
    What is the weight of diesel forklifts with load capacity of 2.5 tons?
    As a compact forklift, its kerb weight is 3880 kg.
    What are the advantages of diesel forklifts?
    Diesel forklifts produced by YangFT enjoy the advantages of strong driving force, low maintenance costs and long service life.
