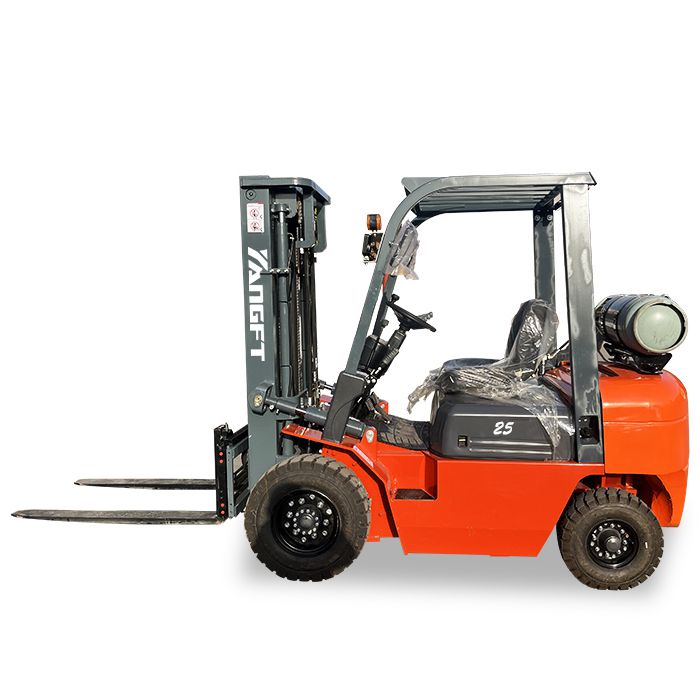

Gasoline/LPG Forklift 2-4 Tonne

Gasoline/LPG Forklift 2-4 Tonne

K Series

The 4-cylinder LPG forklifts have the load capacity of 2 to 4 tons. The standard lift height is 3 meters and the maximum customized lift height is 8 meters. This type of compact forklifts is widely used in limited space, such as factories and workshops.

The gasoline/LPG forklift combines globally recognized design with high-efficiency performance, offering value at a competitive price. Engineered to deliver high quality performance, this material handling equipment ensures superior cost-effectiveness, making it an ideal choice for maximizing your investment.

  • Capacity2000-4000 kg
  • Lift Height3000 mm
  • Travel Speed19-22 km/h
  • Min. Turning Radius2190-2470 mm
Request a Quote
Features
  • The wide-view reinforced mast design enhances the operator's field of vision, providing better visibility, durability, and high reliability.
  • Drivers can have better control over the forklift thanks to the LCD panel and user-friendly interface.
  • The new steering wheel structure greatly improves comfort and adjustment reliability.
Applications

Material handling in factories and workshops.

Forklift Truck Components
  • LPG & Gasoline Dual-Fuel Engine (Optional)
  • LPG & Gasoline Dual-Fuel Engine (Optional)

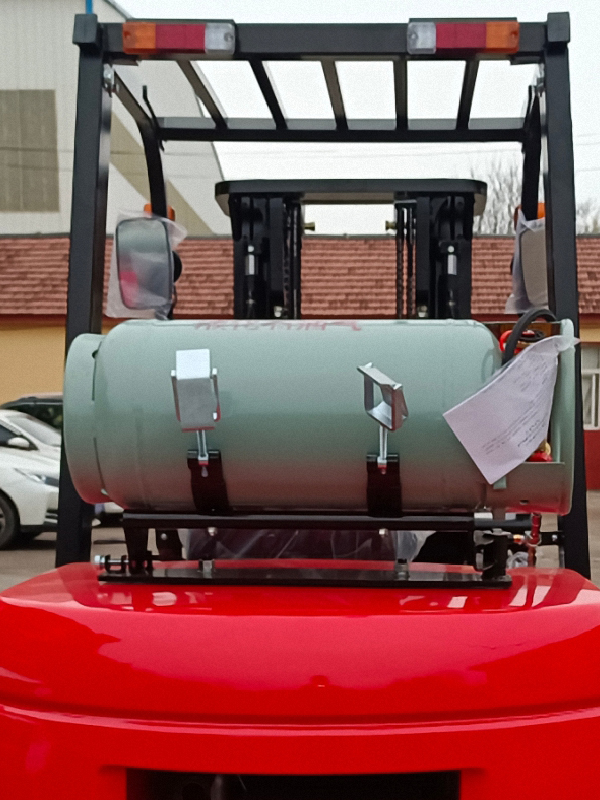

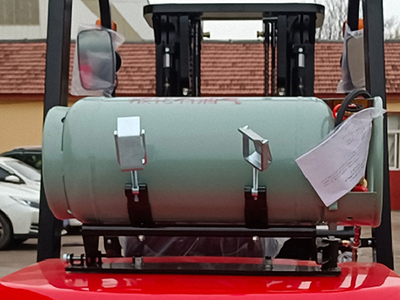

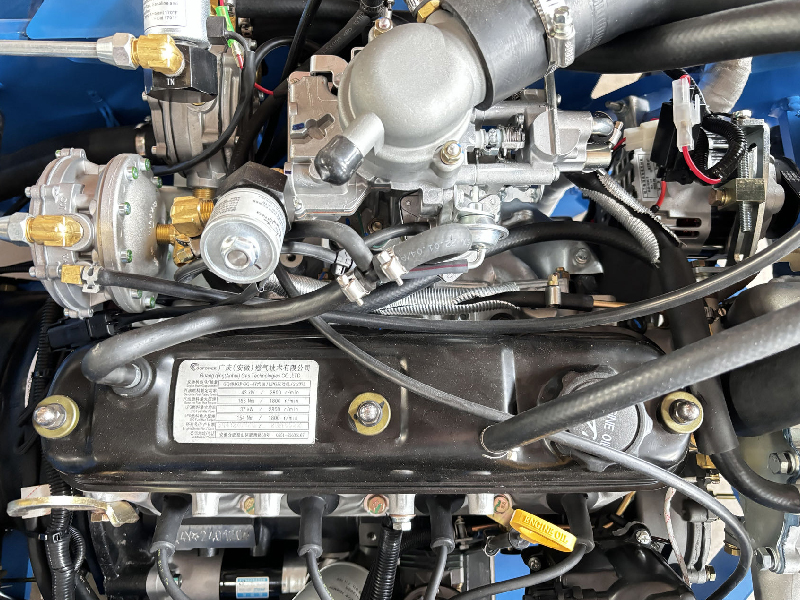

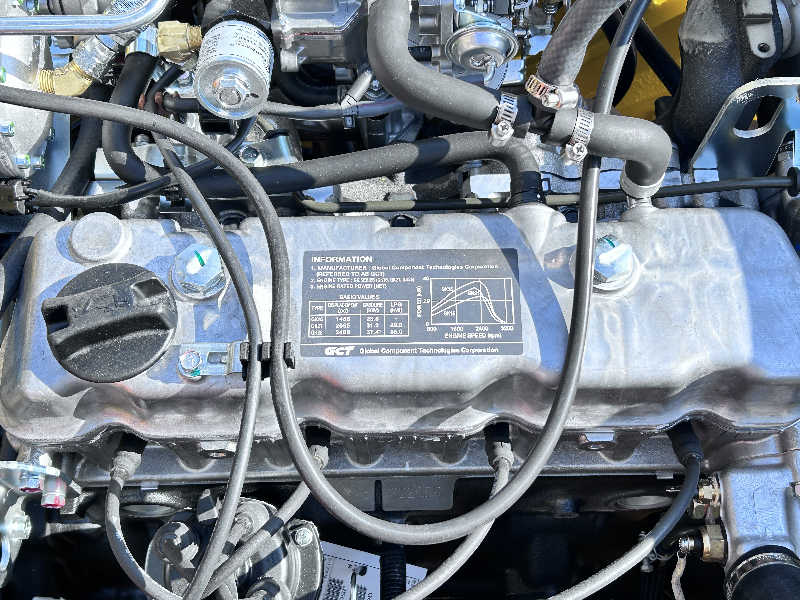

LPG & Gasoline Dual-Fuel Engine (Optional)

The advanced dual-fuel system offers flexible, safe, and efficient switching between fuel types. LPG fuel is clean, environmentally friendly, and cost-effective, adapting seamlessly to various environments and budget needs.

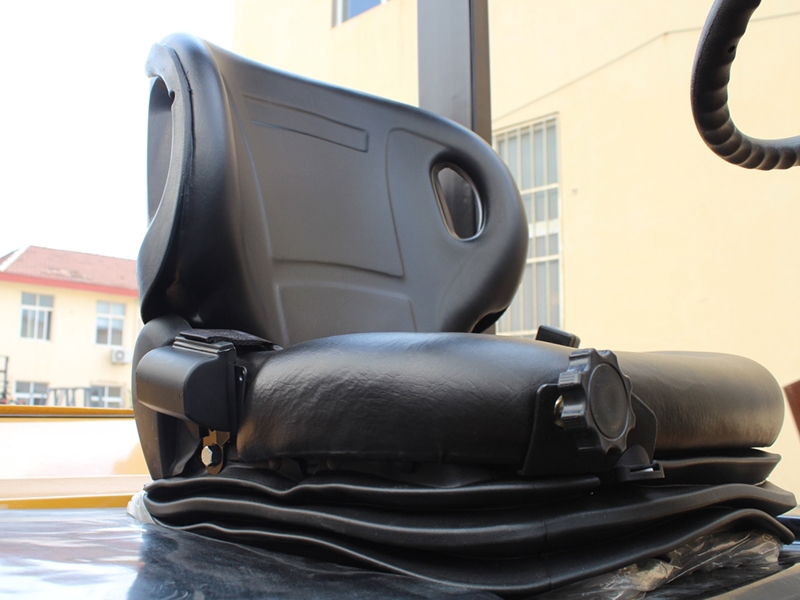

  • Seat (Optional)
  • Seat (Optional)

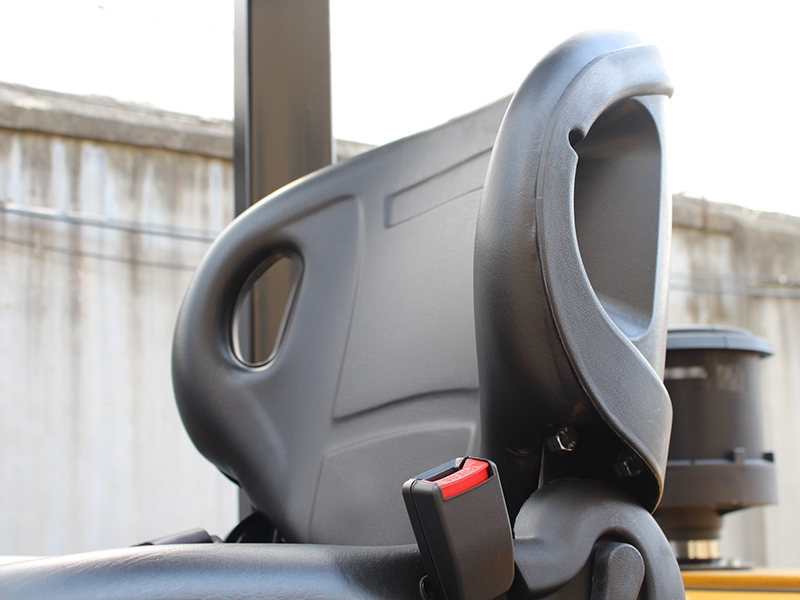

Seat (Optional)

Features an ergonomically designed OPS system with multiple adjustment options to minimize operator fatigue and ensure comfort during long shifts.

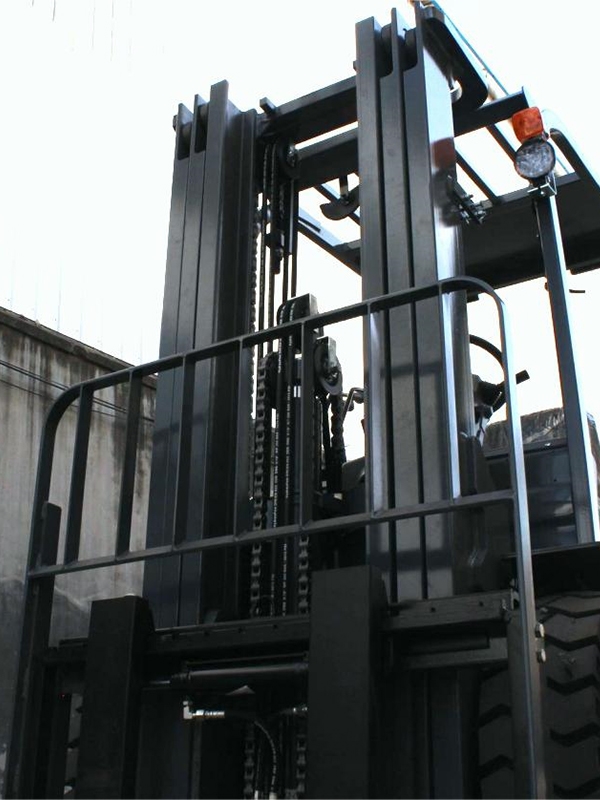

  • Mast (Optional)
  • Mast (Optional)

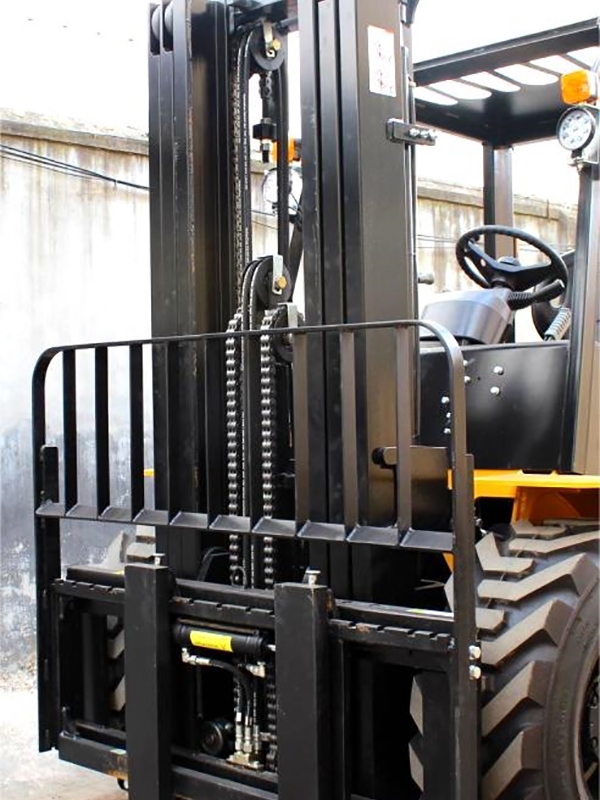

Mast (Optional)

Offers both 2-3 stage standard masts and multi-stage full free lift masts, allowing for high customization to meet diverse operational requirements.

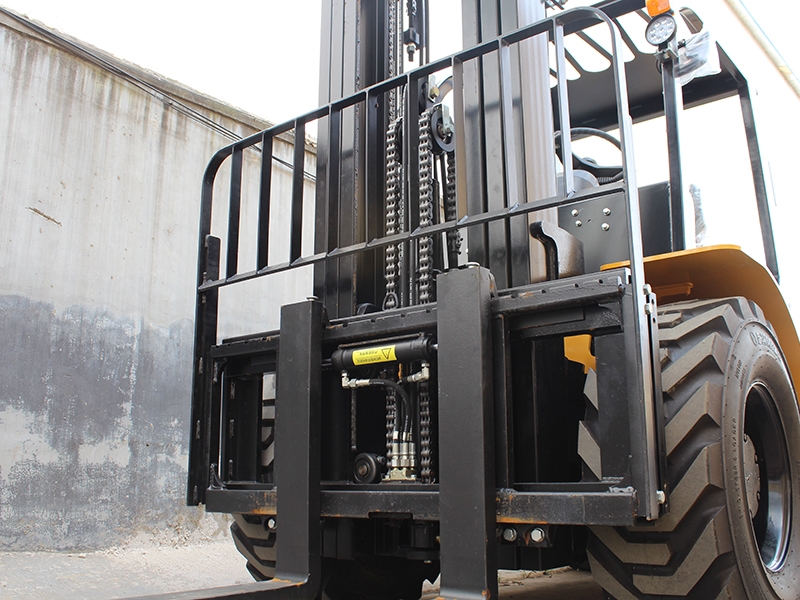

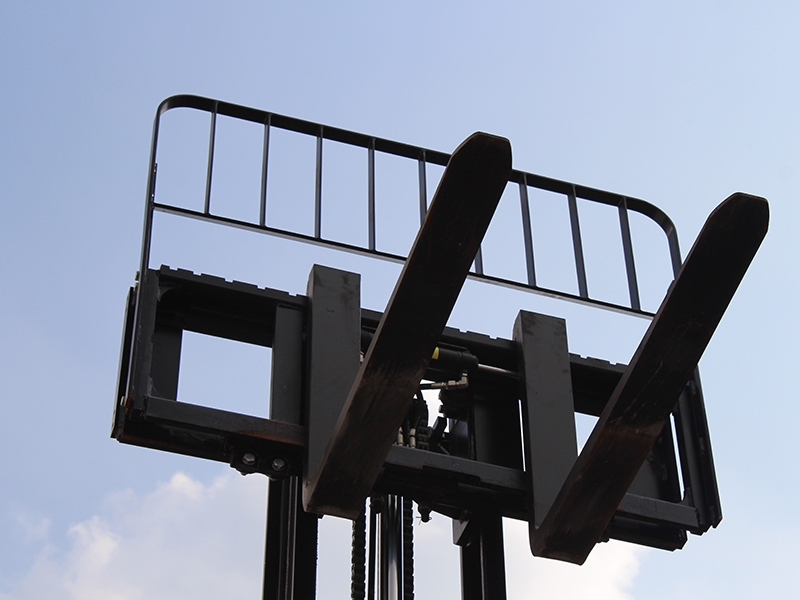

  • Load-BackrestBackrest
  • Load-Backrest

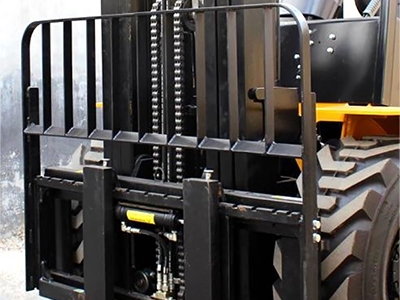

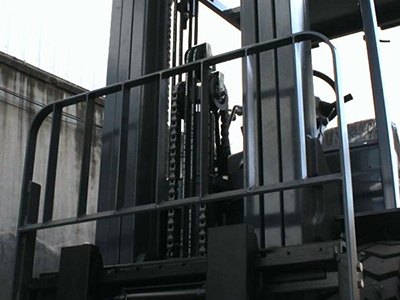

Load-Backrest

Equipped with a load-backrest to prevent cargo slippage, this feature enhances safety throughout the operation process.

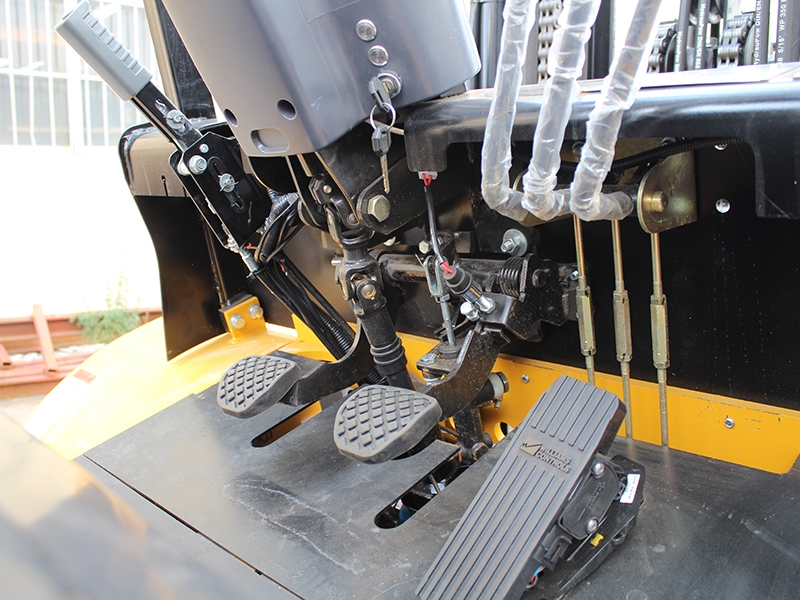

  • Control system (Optional)
  • Control system (Optional)

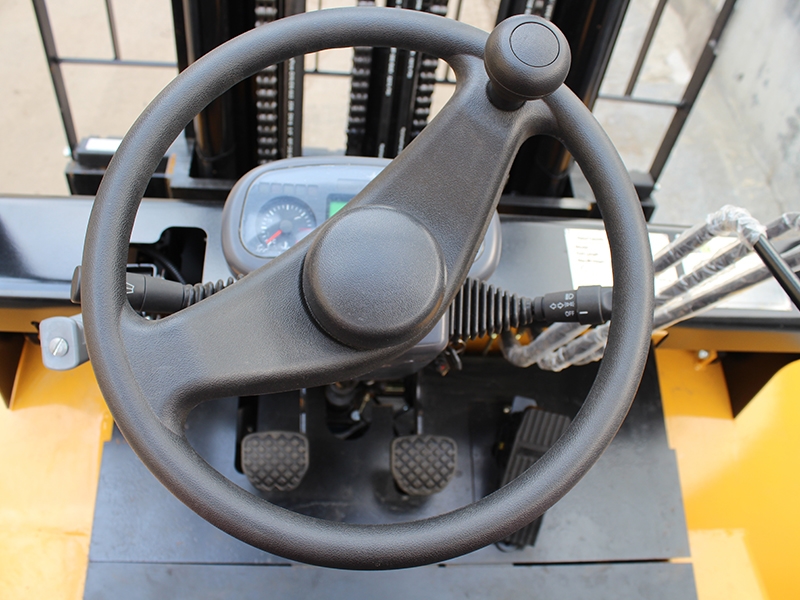

Control System (Optional)

The integrated dashboard, combined with ergonomically designed steering, throttle, and brake controls, provides safe, convenient, and comfortable handling for the operator.

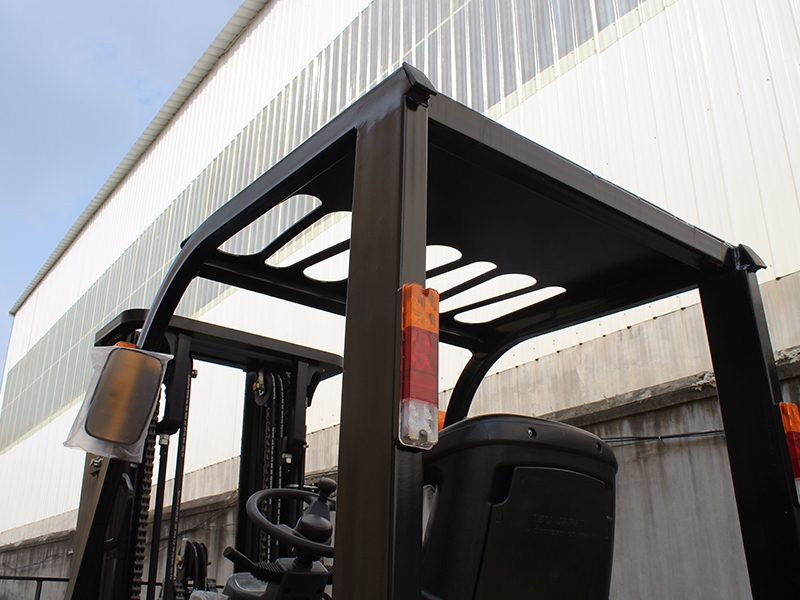

  • Overhead Guard
  • Overhead Guard

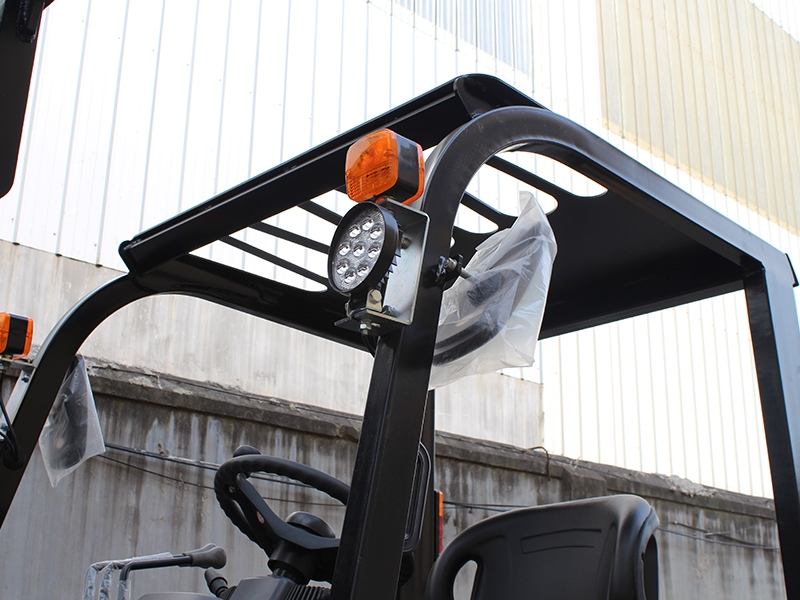

Overhead Guard

Designed to enhance the safety of the driver, it also supports custom width and height options to meet specific operational needs.

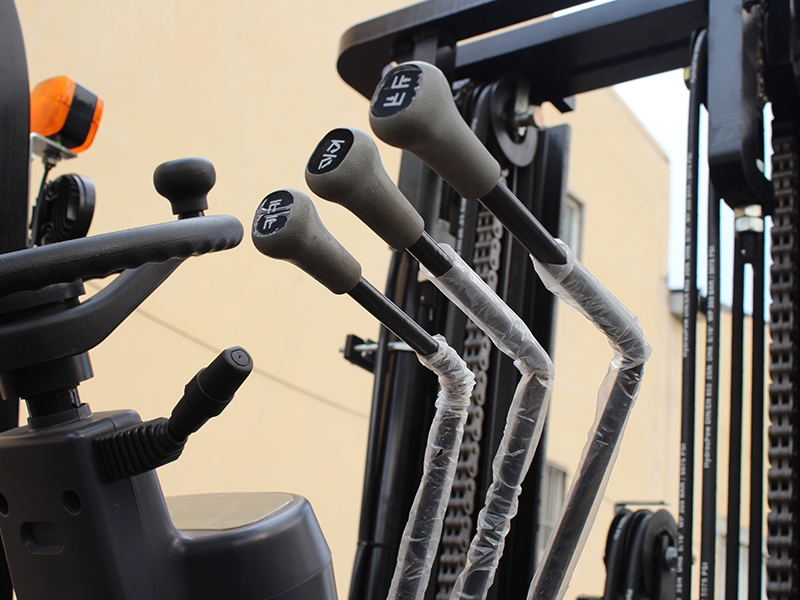

  • Control Valve
  • Control Valve

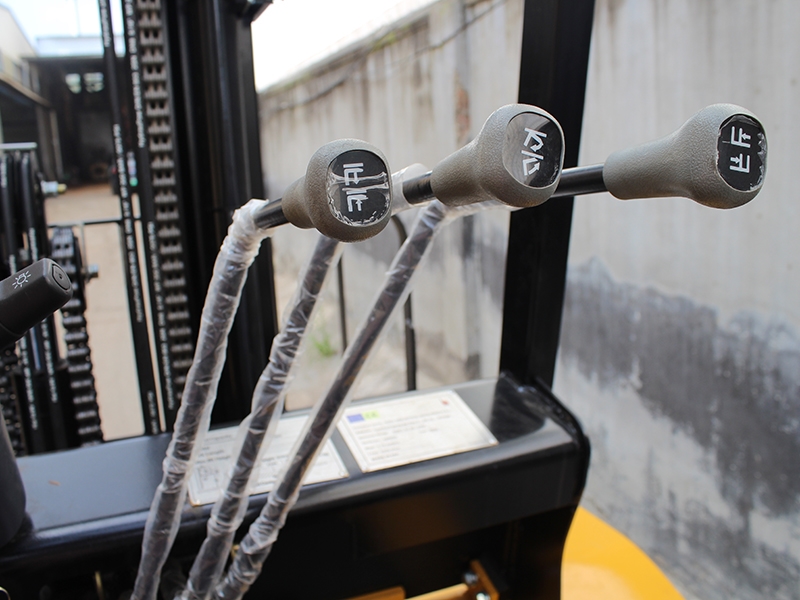

Control Valve

With a thoughtfully designed layout, it ensures simple, user-friendly operation and offers customization options to suit various requirements.

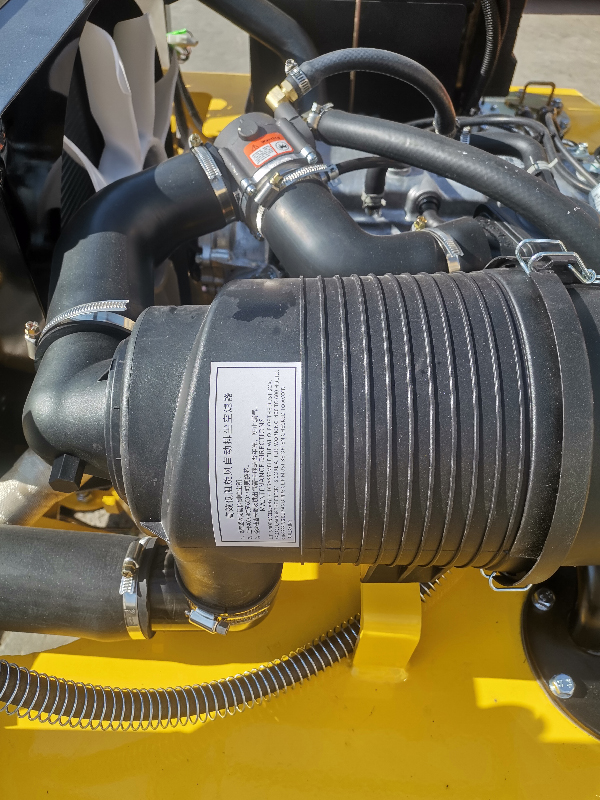

  • Air Filter & Air Tank
  • Air Filter & Air Tank

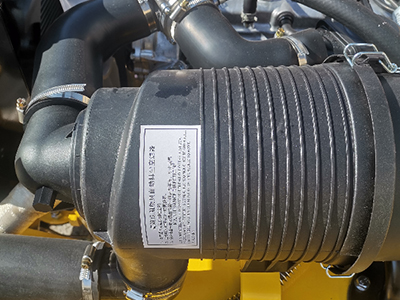

Air Filter & Air Tank

The air filter effectively removes impurities, enhancing engine efficiency and extending its lifespan. The air tank, crafted from high-strength, corrosion-resistant steel, offers excellent sealing for enhanced safety and durability.

Technical Specifications
Model CPC(D)20 CPC(D)25 CPC(D)30S CPC(D)30L CPC(D)35 CPC(D)40
Characteristics Power Gasoline/LPG
Capacity kg 2000 2500 3000 3300 3500 4000
Load Centre mm 500 500 500 500 500 500
Lift Height mm 3000 3000 3000 3000 3000 3000
Min. Turning Radius mm 2190 2240 2400 2470 2470 2470
Performance Travel Speed Load km/h 19 19 20 20 20 22
Lift Speed Load mm/s 500 500 480 480 480 480
Max. Traction Power Load KW 17 18 20 22 22 22
Dimensions Total Length With fork mm 3600 3650 3770 3870 3870 3970
Without fork mm 2530 2580 2700 2800 2800 2900
Total Width mm 1160 1160 1225 1225 1225 1225
Max. Height mm 4220 4220 4265 4265 4265 4265
Mast Height mm 2100 2100 2100 2100 2100 2100
Chassis Tyre Front 7.00-12 7.00-12 28x9-15 28x9-15 28x9-15 250-15
Rear 6.00-9 6.00-9 6.50-10 6.50-10 6.50-10 6.50-10
Wheelbase mm 1600 1600 1700 1800 1800 1900
Service Weight No load kg 3530 3880 4350 4300 4605 5020
Power Engine Model Xinchai
Rated power kW/r.p.m 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500
Rated torque Nm/r.p.m 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900 180-190/1800-2000 180-190/1800-2000
Cylinders 4 4 4 4 4 4
