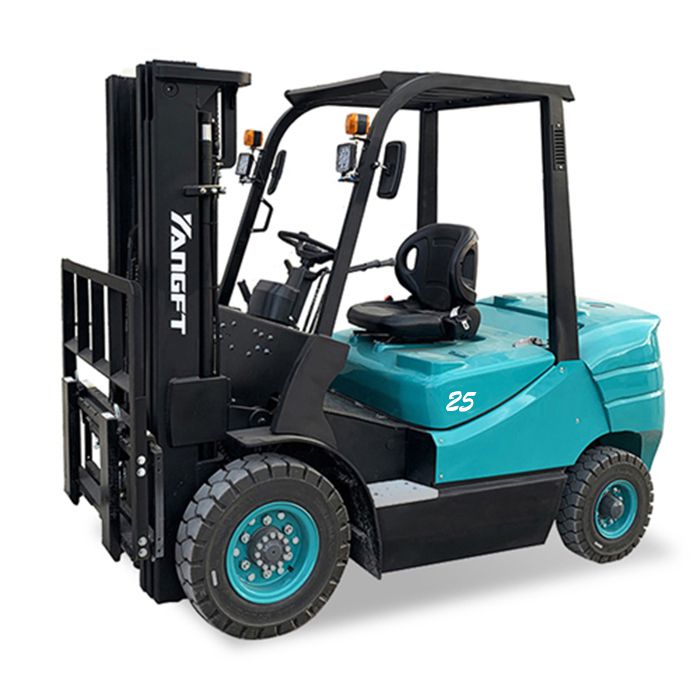

Features
- Streamlined design: a sleek, patented appearance with smooth handling.
- Hydraulic drive dystem: the C-series diesel forklift offers stable, efficient driving performance.
- High power and torque: with impressive load capacity and travel speed, it meets different operational demands.
- Optimized low center of gravity: computer-simulated modeling has allowed for the ideal low center of gravity, ensuring greater stability and safety, especially during transport, with a high-strength steel body.
Forklift Truck Components

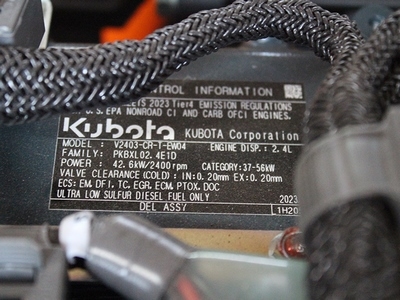

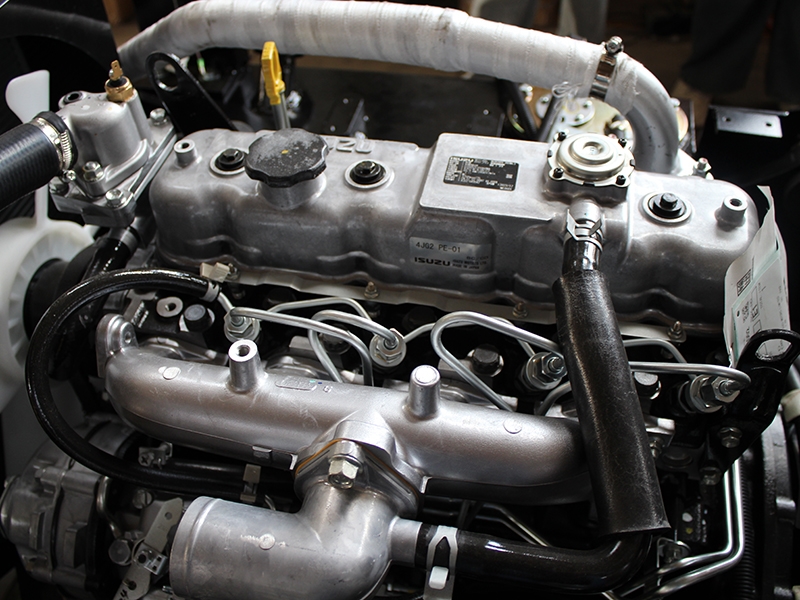

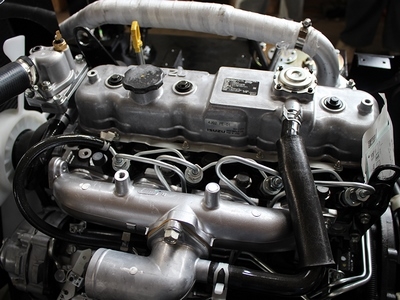

Engine (Optional)
With optional advanced engines from ISUZU, Mitsubishi, Kubota, Yanmar and Euro3/5, these engines combine fuel efficiency with environmental responsibility and reliable durability, ensuring long-lasting performance and easy maintenance.

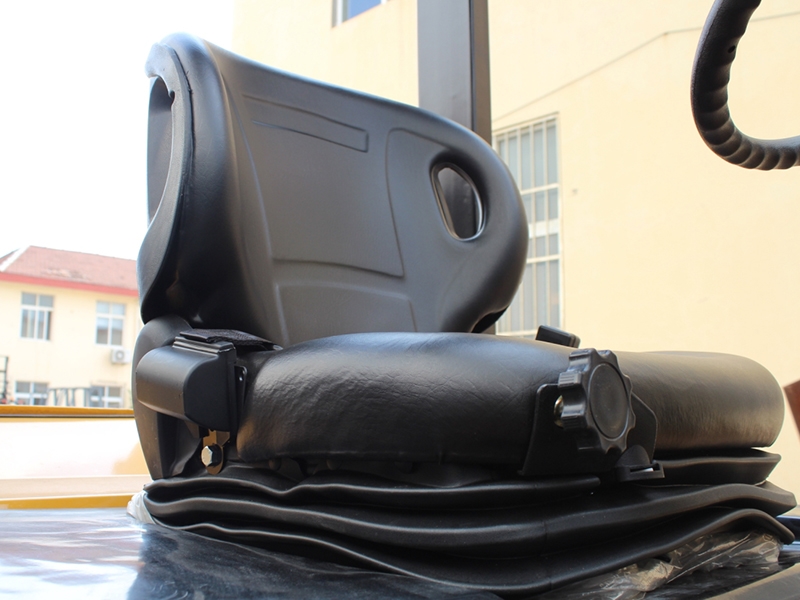

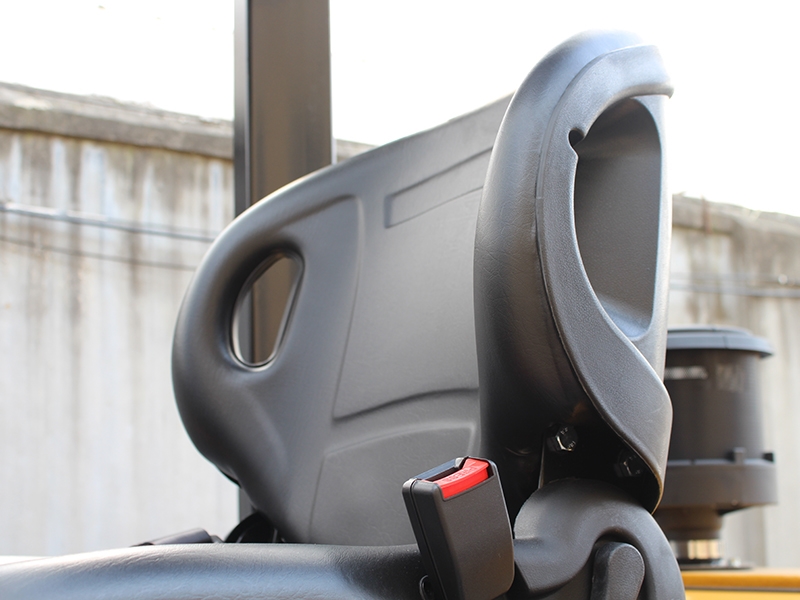

Seat (Optional)
Equipped with an OPS system and ergonomic features, this system offers multiple adjustable settings to reduce operator fatigue and ensure long-term comfort during extended use.

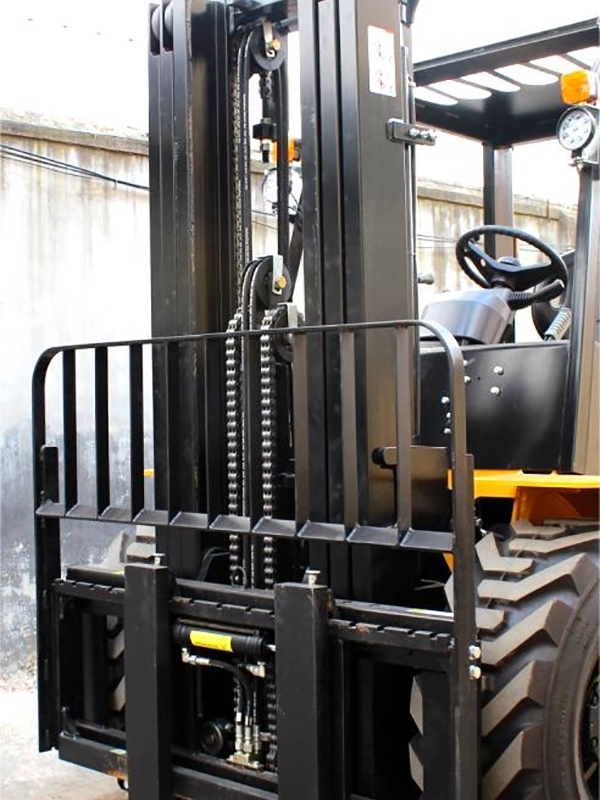

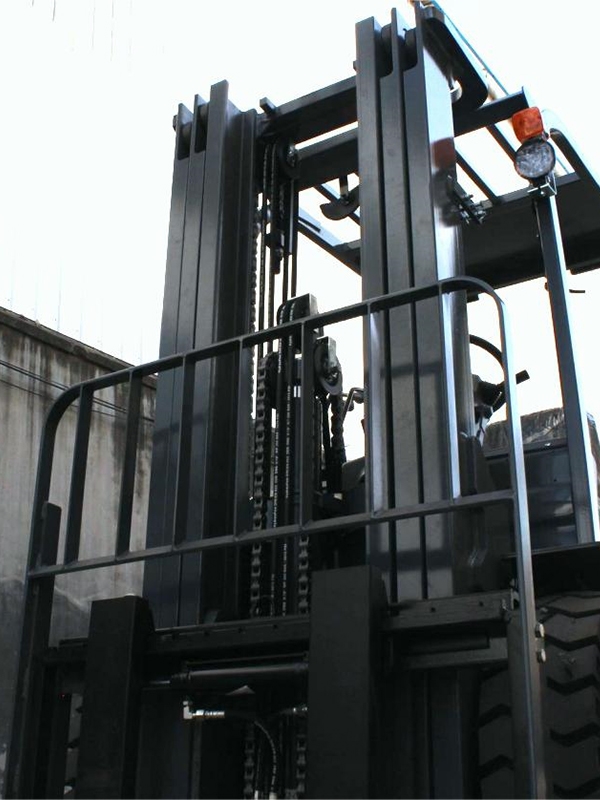

Mast (Optional)
Available with standard 2-3 stage masts and multi-stage full free lift masts, extensive customization options are available to meet a variety of operational requirements.

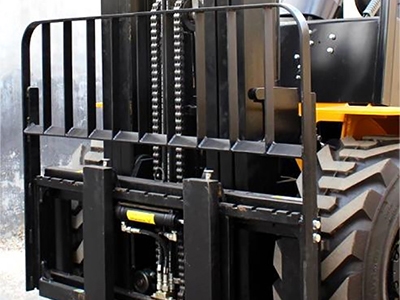

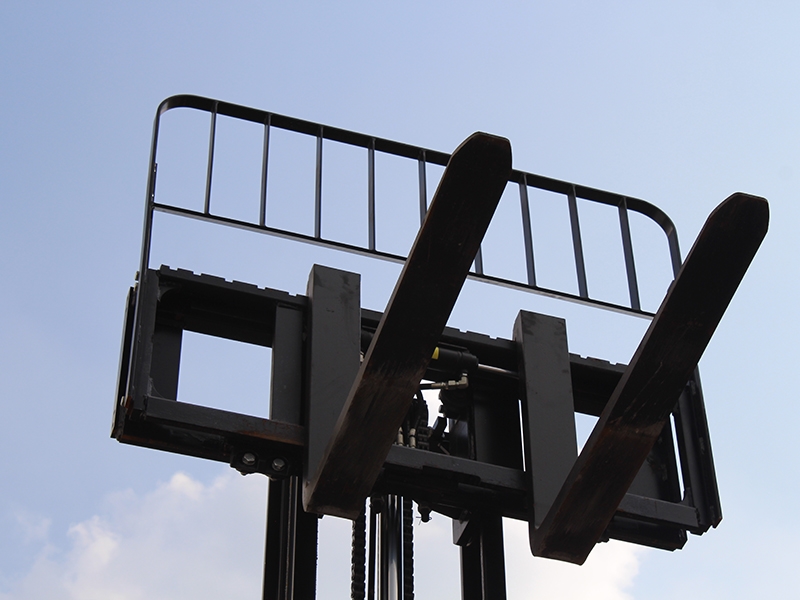

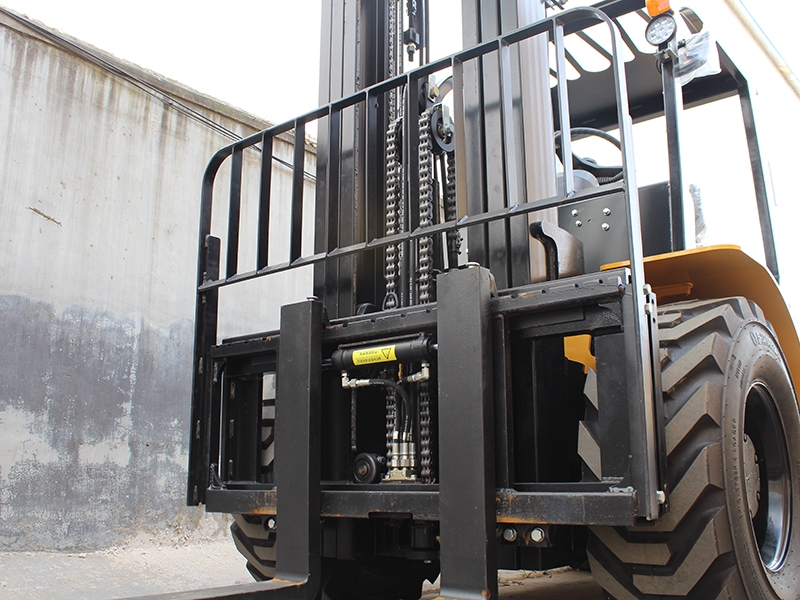

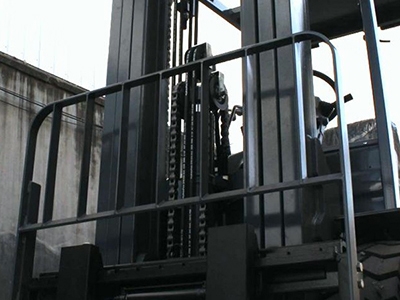

Load-Backrest
Designed with a load-backrest, which prevents cargo from slipping, ensuring enhanced safety during operation.

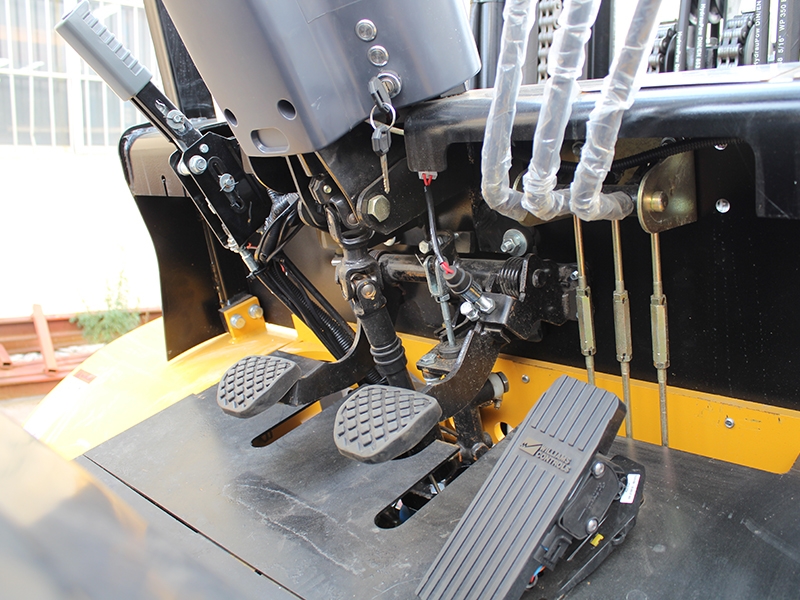

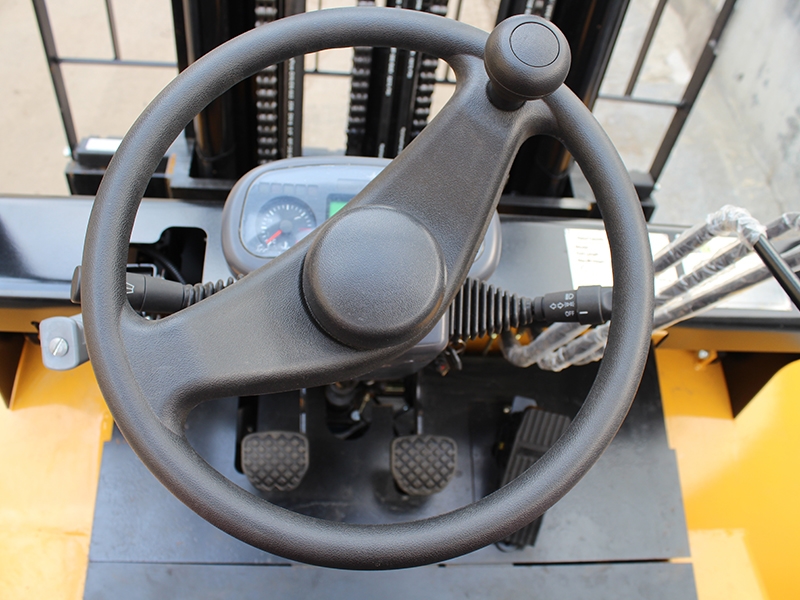

Control System (Optional)
Featuring an integrated dashboard and ergonomically designed steering, throttle, and brake controls, which ensures safe, easy, and comfortable operation for the driver.

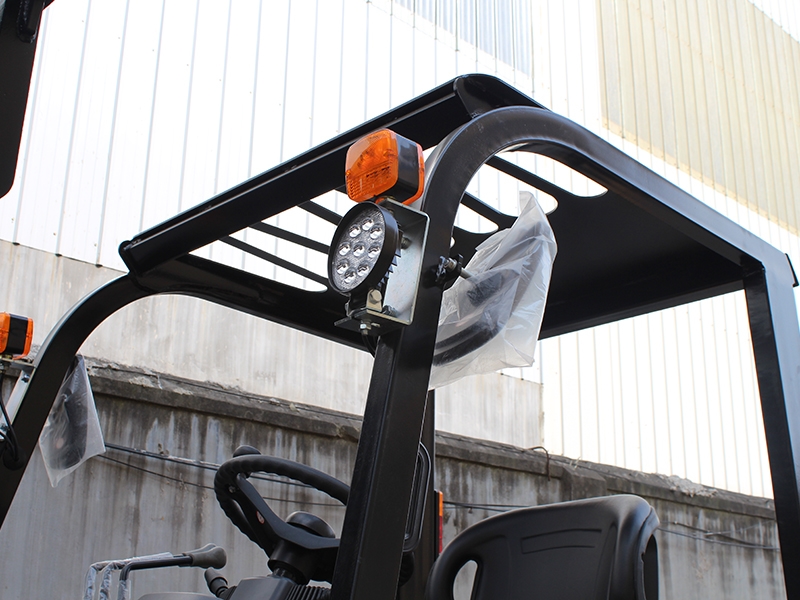

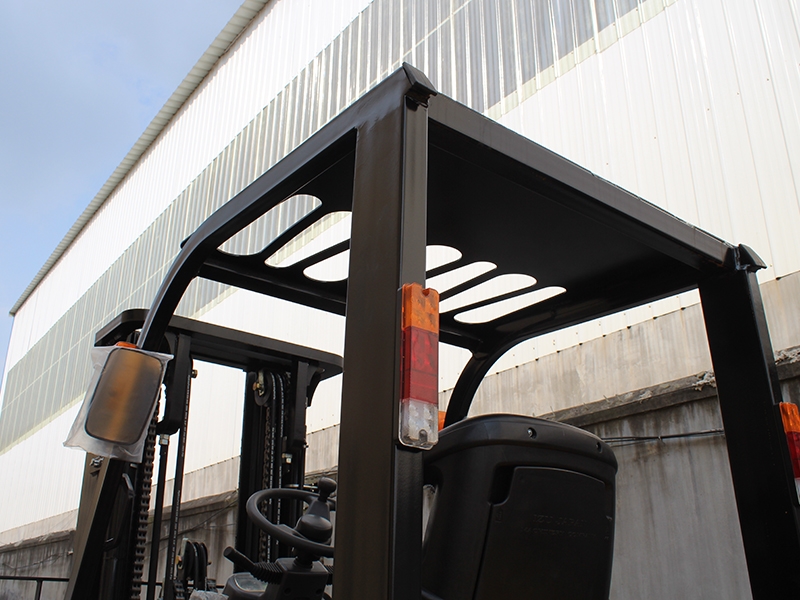

Overhead Guard
Prioritizing driver safety, this guard can also be customized with options for extended width and height to meet specific operational needs.

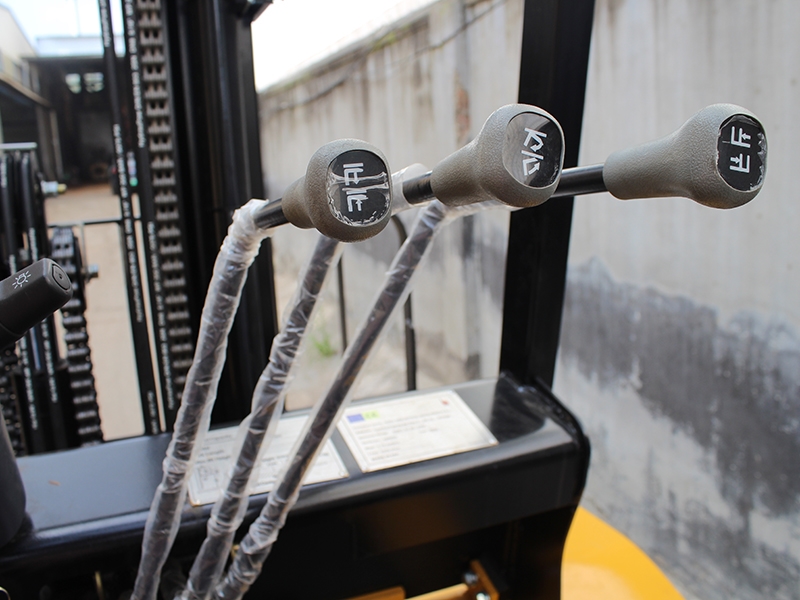

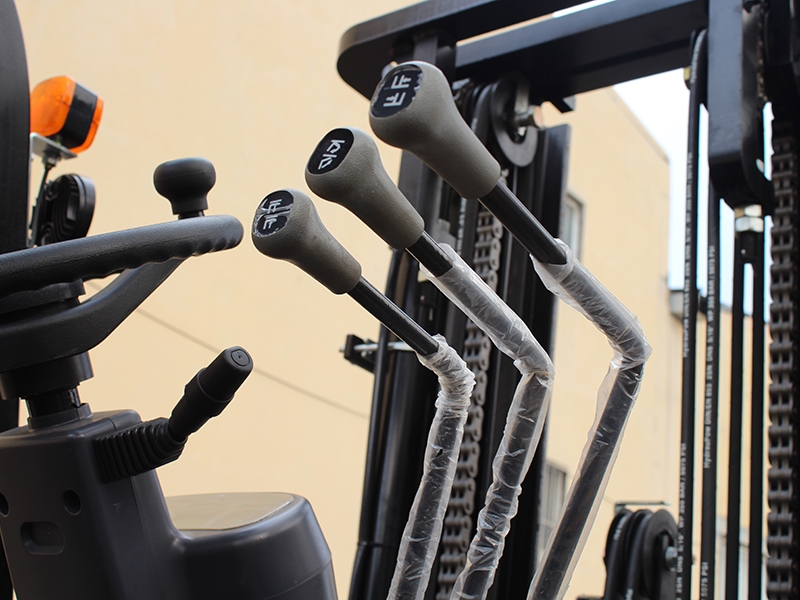

Control Valve
It is built with a user-friendly design, offering straightforward operation and customizable options to suit diverse requirements.
Applications
Material handling in limited space, such as factories and workshops.
Technical Specifications
Model |
CPCD20
|
CPCD25
|
CPCD30
|
CPCD35
|
CPCD40
|
Characteristics |
Power |
|
|
|
Diesel |
Capacity |
|
|
kg |
2000 |
2500 |
3000 |
3500 |
4000 |
Load Centre |
|
|
mm |
500 |
500 |
500 |
500 |
500 |
Lift Height |
|
h |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |

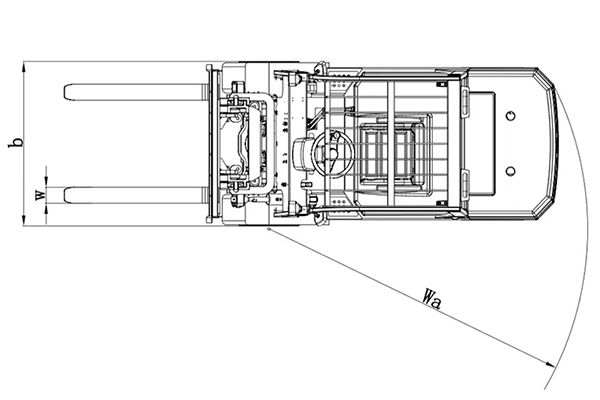

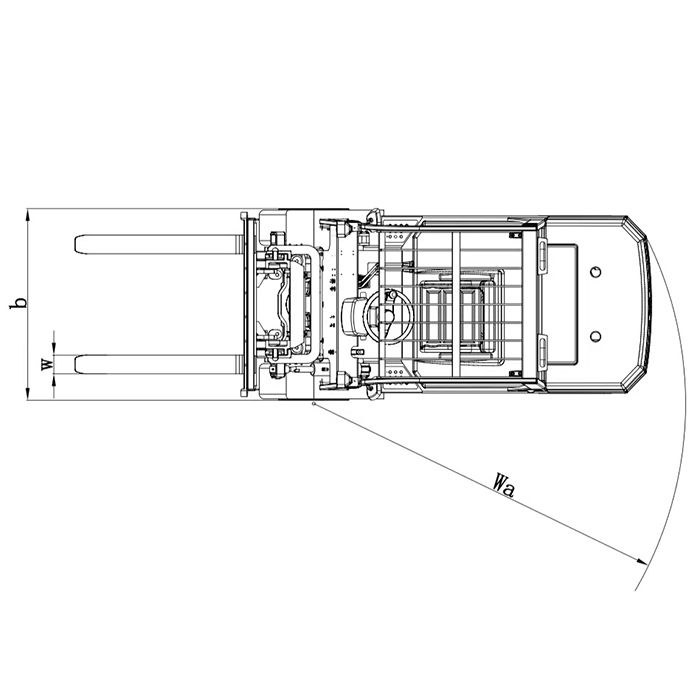

Min. Turning Radius |
|
Wa |
mm |
2410 |
2410 |
2410 |
2410 |
2850 |
Performance |
Travel Speed |
Load |
|
km/h |
19 |
19 |
20 |
20 |
19 |
Lift Speed |
Load |
|
mm/s |
500 |
500 |
480 |
480 |
400 |

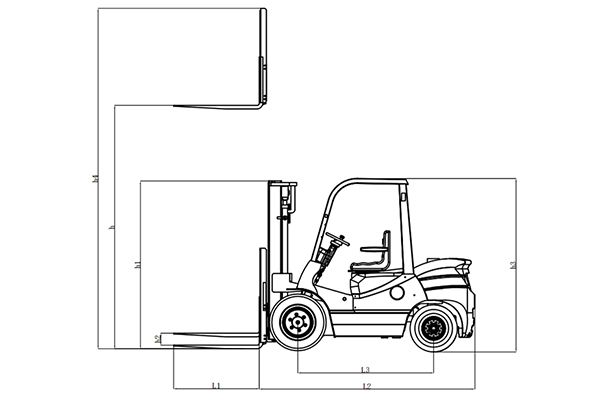

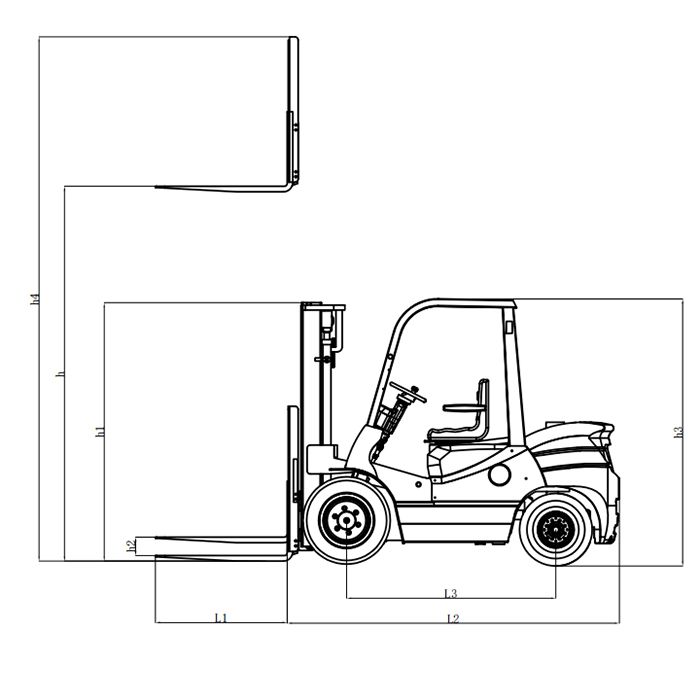

Dimensions |
Total Length |
With fork |
L1+L2 |
mm |
3750 |
3750 |
3770 |
3770 |
4055 |
Without fork |
L2 |
mm |
2680 |
2680 |
2700 |
2700 |
2985 |
Total Width |
|
b |
mm |
1160 |
1160 |
1225 |
1225 |
1360 |
Max. Height |
|
h4 |
mm |
4245 |
4245 |
4265 |
4265 |
4315 |
Mast Height |
|
h1 |
mm |
2085 |
2085 |
2100 |
2100 |
2195 |
Chassis |
Tyre |
Front |
|
|
7.00-12-12PR |
7.00-12-12PR |
28x9-15-12PR |
28x9-15-12PR |
250-15-20PR |
Rear |
|
|
6.00-9-10PR |
6.00-9-10PR |
6.50-10-10PR |
6.50-10-10PR |
7.00-12-12PR |
Wheelbase |
|
L3 |
mm |
1700 |
1700 |
1700 |
1700 |
1860 |
Service Weight |
No load |
|
Kg |
3600 |
3850 |
4300 |
4600 |
5100 |
Power |
Engine |
Model |
|
|
C240 |
C240 |
C240 |
C240 |
4JG2 |
Rated power |
4JG2 |
kW/r.p.m |
35.4/2500 |
35.4/2500 |
35.4/2500 |
35.4/2500 |
46.0/2450 |
Rated torque |
|
Nm/r.p.m |
138/1800 |
138/1800 |
138/1800 |
138/1800 |
186/1800 |
Cylinders |
|
|
4 |
4 |
4 |
4 |
4 |
Do drivers need to take training before driving light-duty forklifts?
Yes, drivers need to take training before driving forklifts. It’s important to know how to operate forklifts correctly to increase productivity and prevent accidents.
How to maintain industrial forklifts?
- Inspecting forklifts before use can help you identify problems early and ensure safety.
- Regularly cleaning and lubricating components can improve service life of forklifts.
- It’s also important to make a maintenance timetable, regularly inspect and replace components based on the maintenance recommendations.
