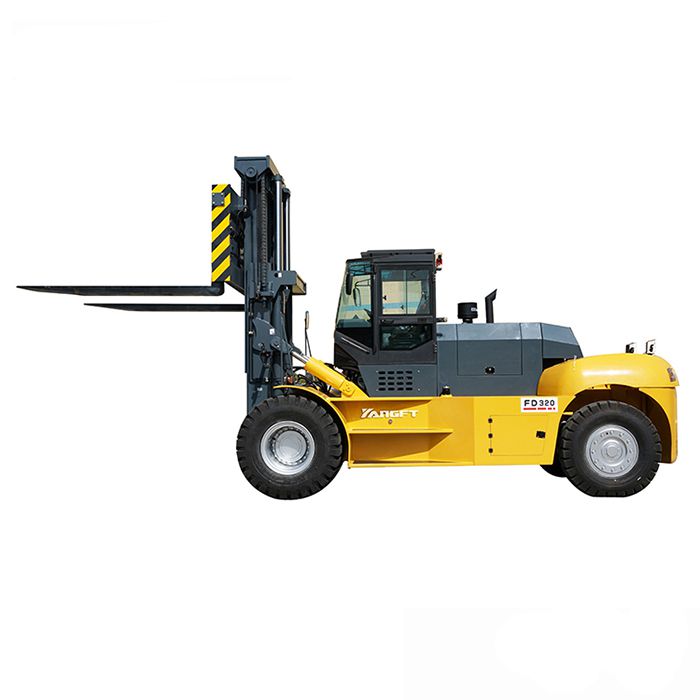

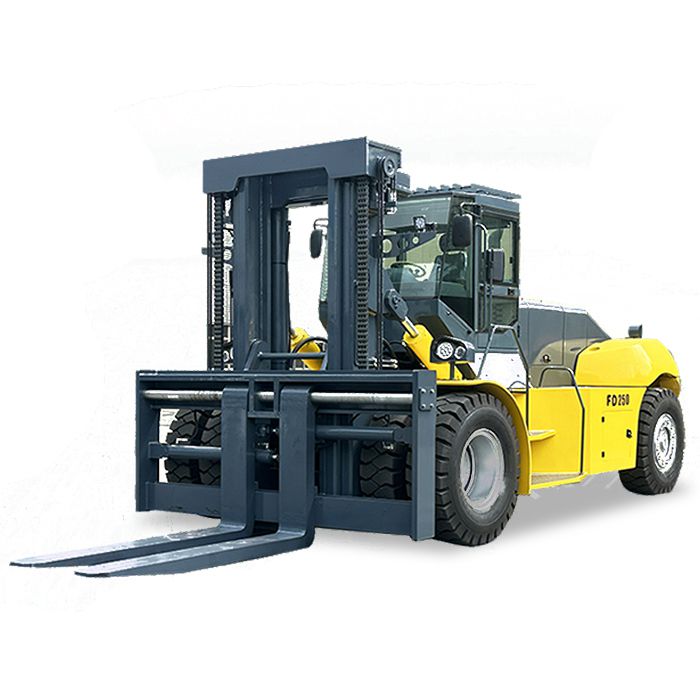

    K Series

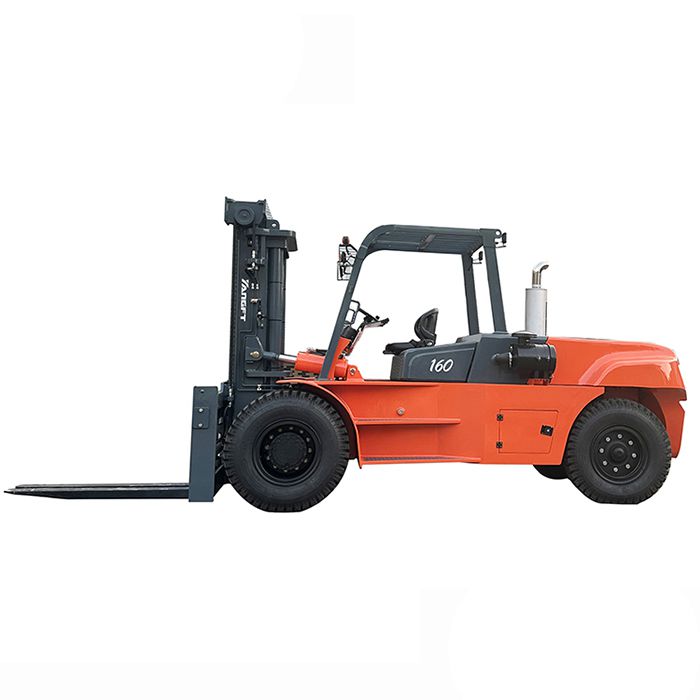

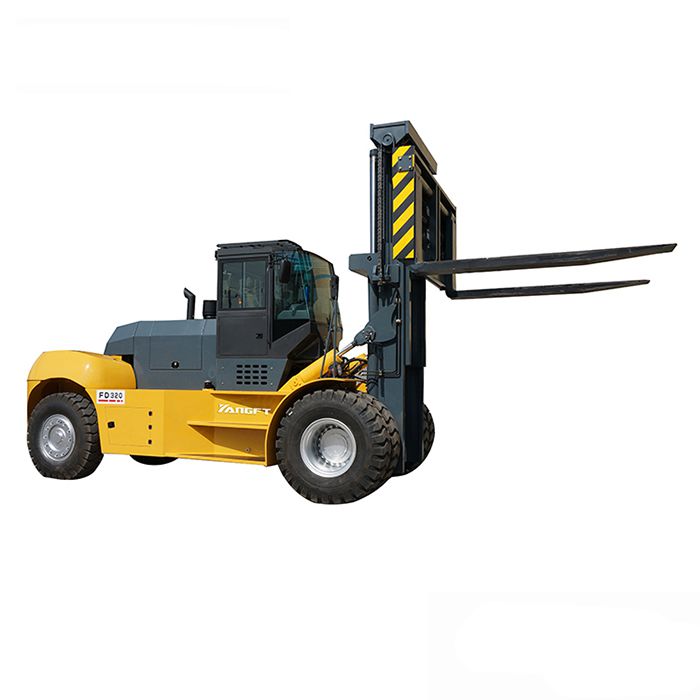

    The heavy-duty 6-cylinder forklifts are capable of lifting materials up to 50 tons. With strong driving force, the forklifts deliver stable and outstanding material handling performance.

    Equipped with a fuel-efficient turbocharged engine and lightweight, quick-cooling disc brakes, this forklift truck meets the standards required for heavy-duty forklifts. Its dual-pump hydraulic system reduces power consumption, maximizing the load-handling potential of high-capacity forklifts.

    • Capacity12000-50000 kg
    • Lift Height4000 mm
    • Travel Speed23-26 km/h
    • Min. Turning Radius4680-7730 mm
    Request a Quote
    Features
    • Adopting a turbocharged engine, the forklifts consume less energy while enjoying powerful driving force and they have larger torque reserve.
    • The disc brake features quick heat dissipation, light weight, a simple structure and easy adjustment. Therefore, they are heat-resistant in heavy-load conditions while delivering stable braking performance.
    • The forklifts are equipped with dual hydraulic pumps which ensure strong power and stable performance.
    • The braking system features a proven disc brake design, offering rapid cooling, lightweight structure, and easy adaptability. It delivers stable, high-performance braking, even under heavy loads and high temperatures.
    • Equipped with a domestic brand transmission, this forklift truck provides high driving and traction capabilities.
    • The hydraulic system features a dual-pump flow design, optimizing efficiency with lower power consumption and steady, reliable performance.
    • Reinforced drive axle offers greater load capacity, combining stability, comfort, safety, and high performance.
    Applications

    Heavy material handling operation in airports, ports and train stations.

    Forklift Truck Components

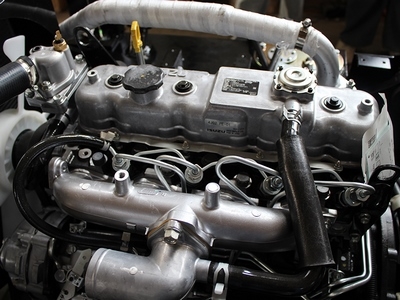

    • Engine (Optional)
    • Engine (Optional)

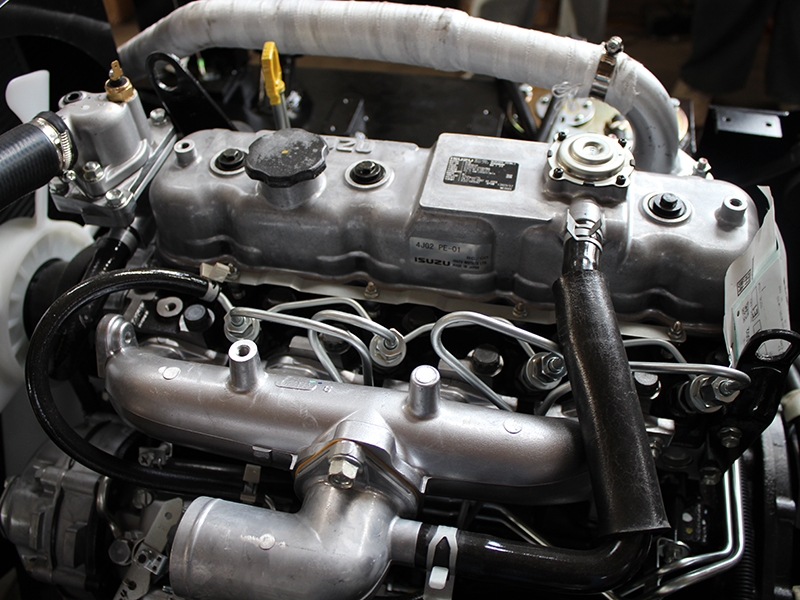

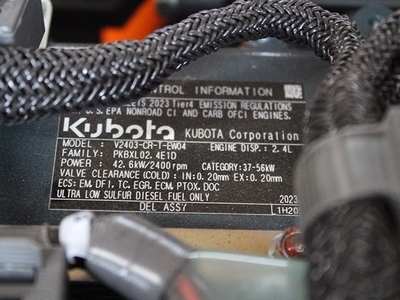

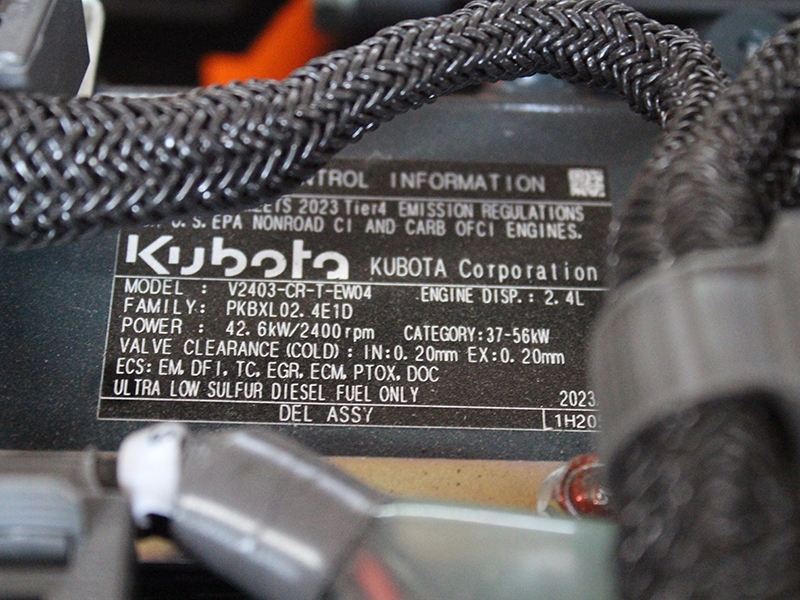

    Engine (Optional)

    Experience reliability and efficiency with optional advanced engine configurations from renowned brands such as ISUZU, Mitsubishi, Kubota, Yanmar and Euro3/5. These engines deliver efficient performance with environmental and cost benefits. They're designed for ease of maintenance and to increase productivity with minimum downtime.

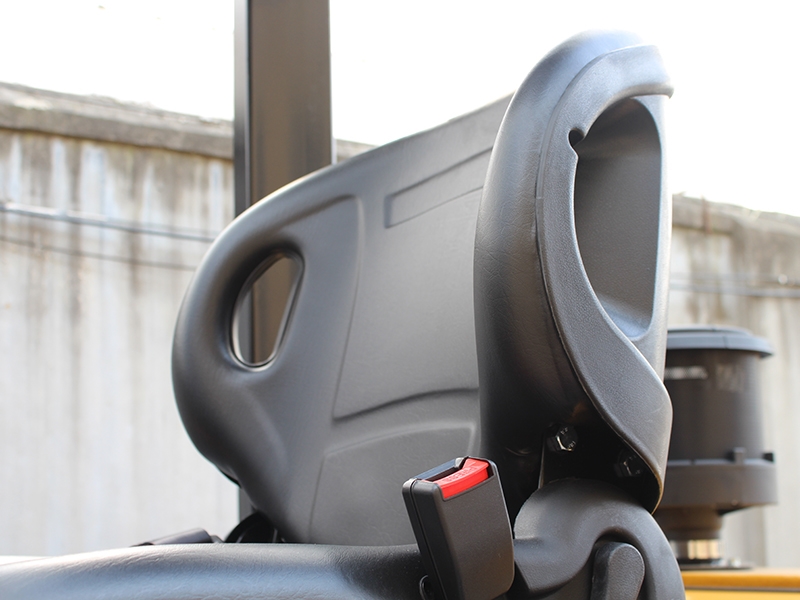

    • Seat (Optional)
    • Seat (Optional)

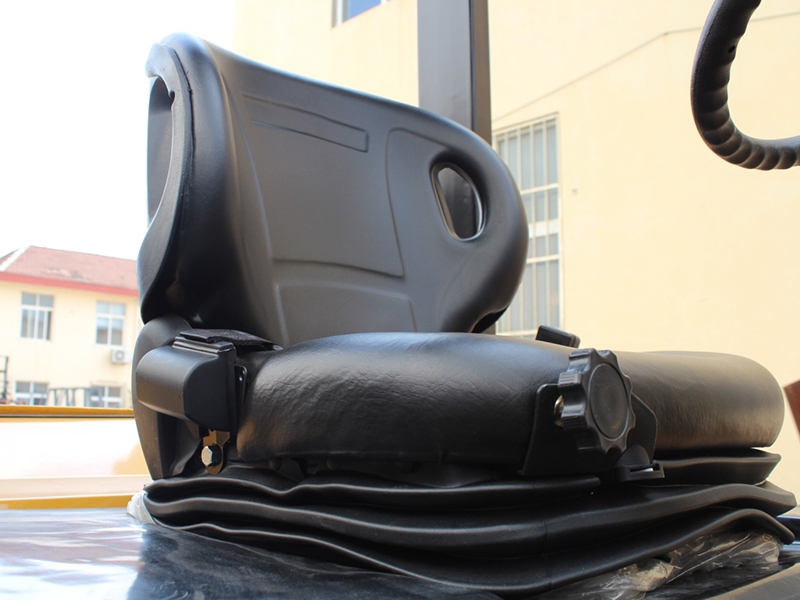

    Seat (Optional)

    Featuring an OPS system and ergonomic design with multiple adjustment options, it reduces operator fatigue and ensures comfort over long shifts.

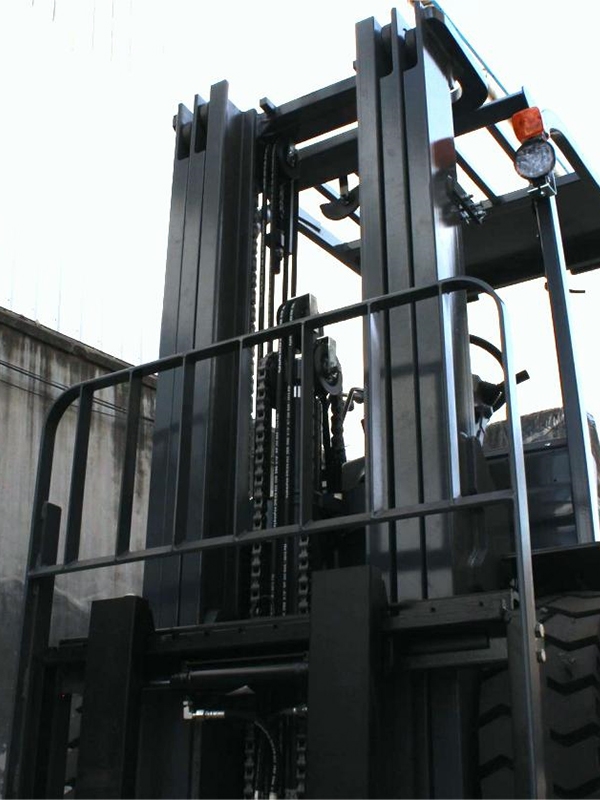

    • Mast (Optional)
    • Mast (Optional)

    Mast (Optional)

    Available with 2-3 stage standard masts and multi-stage full free lift masts, offering extensive customization options to meet diverse operational needs.

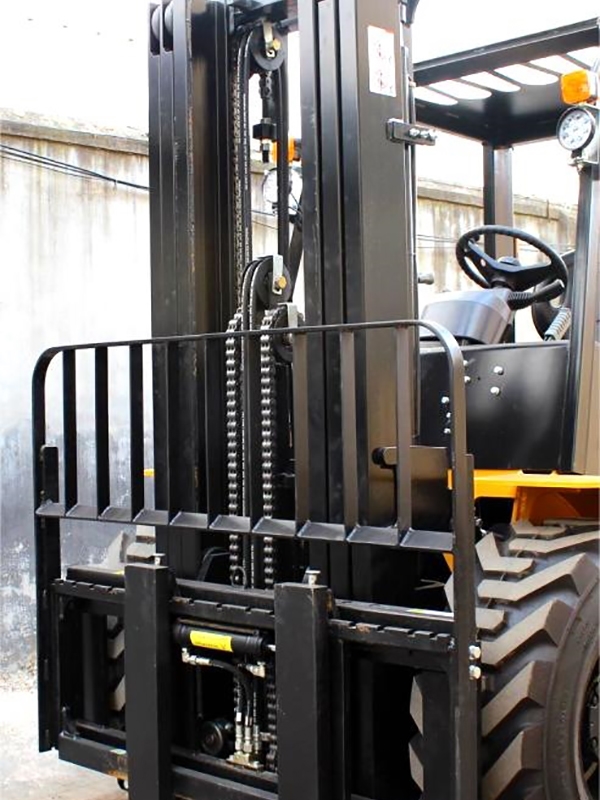

    • Load-BackrestBackrest
    • Load-Backrest

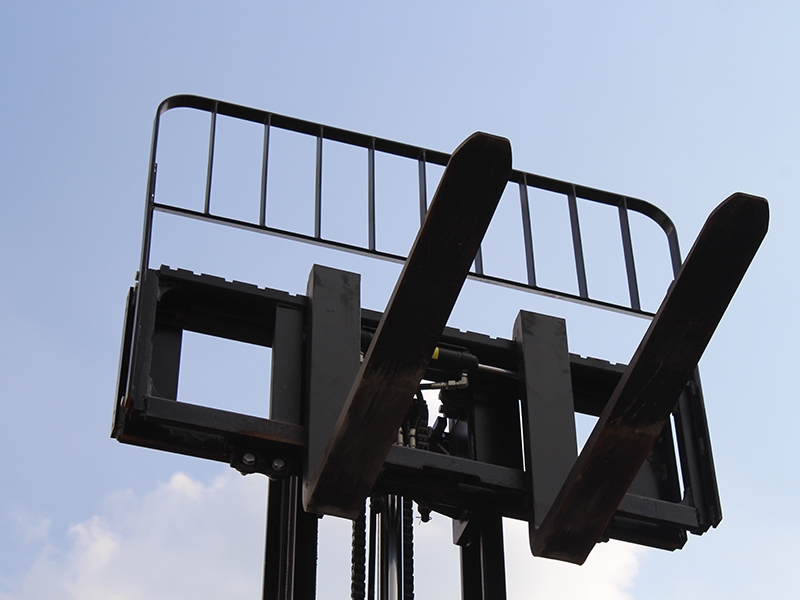

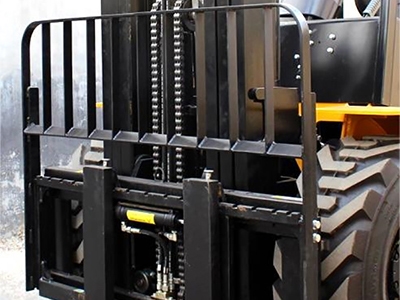

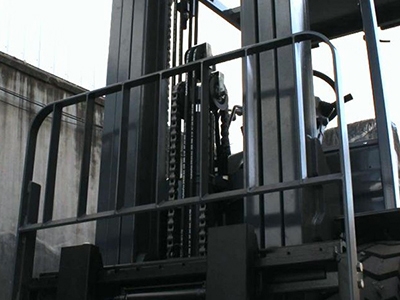

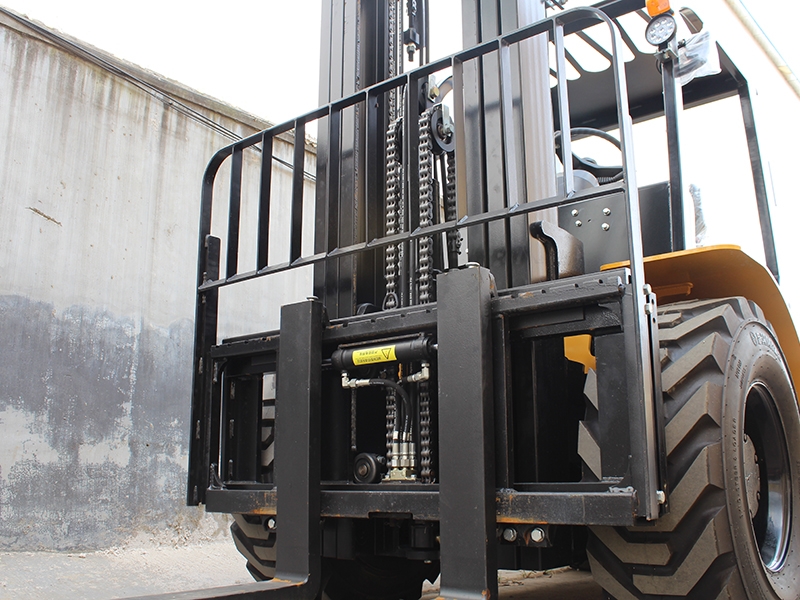

    Load-Backrest

    Equipped with a load-backrest, increases operational safety by preventing the load from slipping during handling.

    • Control system (Optional)
    • Control system (Optional)

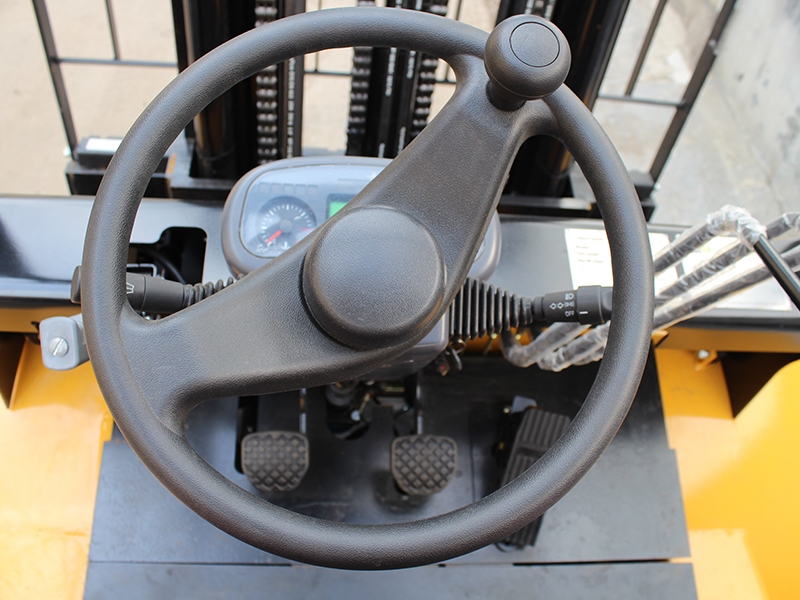

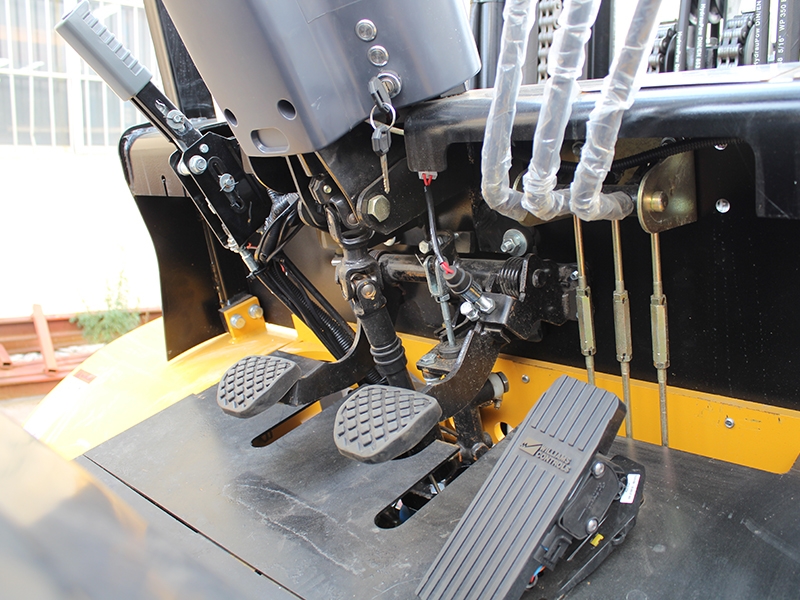

    Control System (Optional)

    The integrated dashboard, combined with an ergonomically designed steering wheel, throttle, and brake system, ensures safe, convenient, and comfortable operation for the driver.

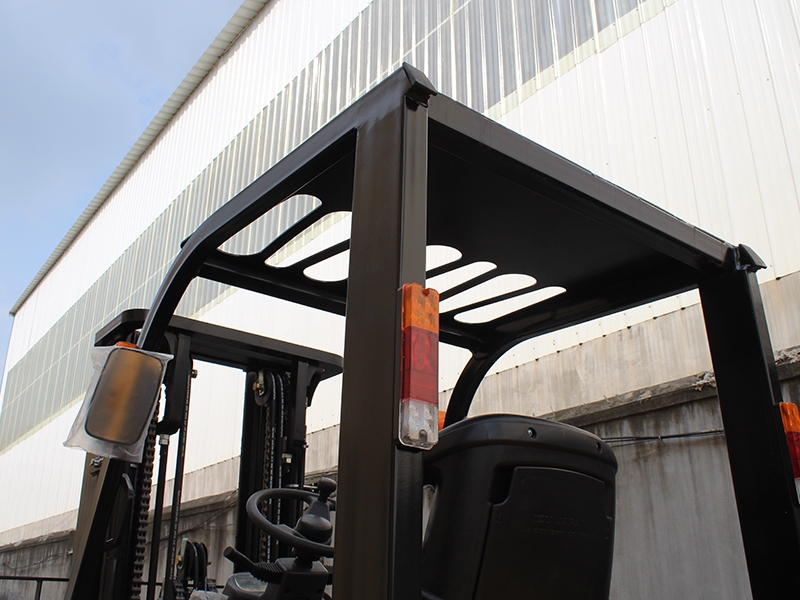

    • Overhead Guard
    • Overhead Guard

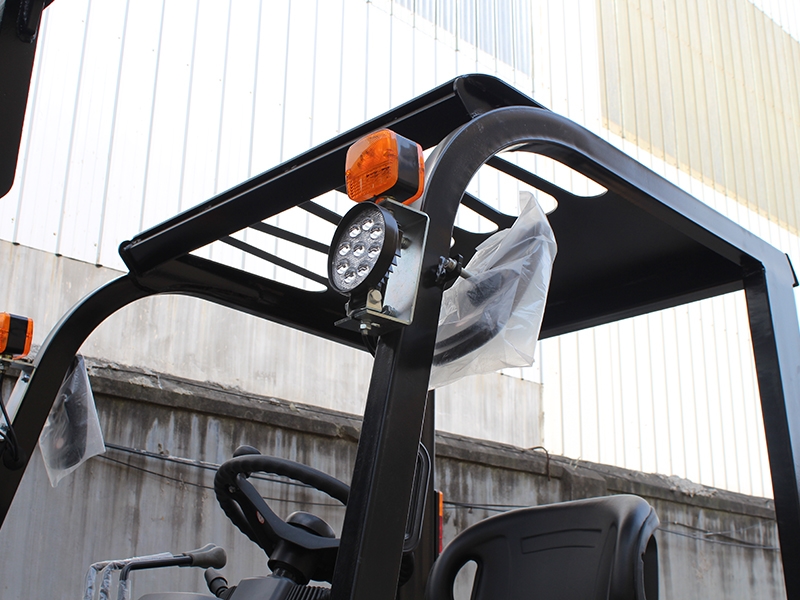

    Overhead Guard

    Designed with driver safety in mind, it also offers customizable width and height options to meet specific operational requirements.

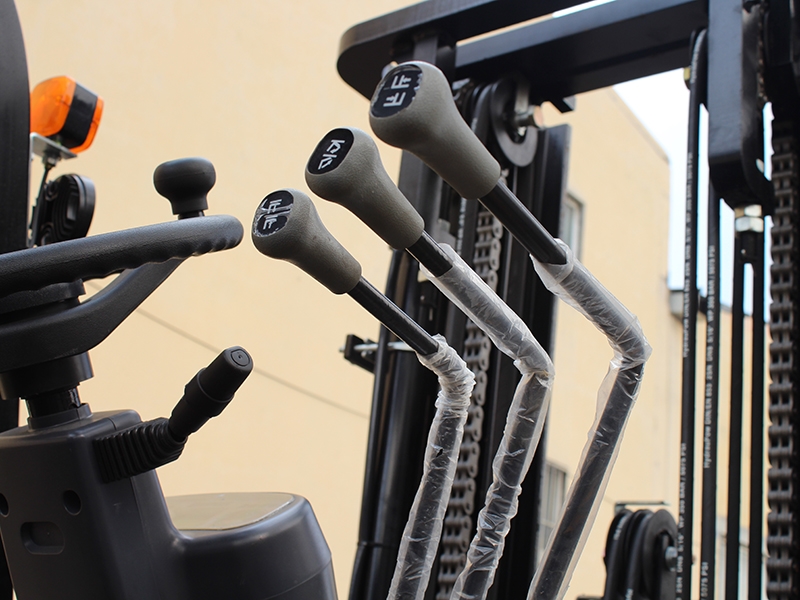

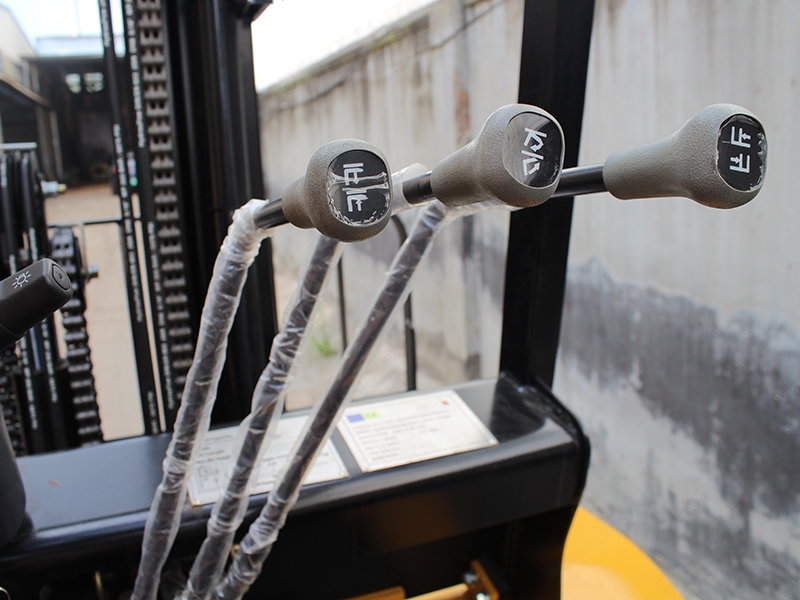

    • Control Valve
    • Control Valve

    Control Valve

    With a well-thought-out design, this model offers straightforward, user-friendly operation and customizable options to meet diverse requirements.

    Technical Specifications
    Model CPCD120 CPCD160 CPCD200 CPCD250 CPCD300 CPCD320 CPCD350 CPCD420 CPCD460 CPCD500
    Characteristics Power 　 　 Diesel
    Capacity 　 kg 12000 16000 20000 25000 30000 32000 35000 42000 46000 50000
    Load Centre 　 mm 600 900 900 1220 1220 1220 1250 1250 1250 1250
    Lift Height 　 mm 3000 3500 4000 4000 4000 4000 4000 4000 4000 4000
    Min. Turning Radius 　 mm 4680 5340 5940 6480 6600 6800 6900 7730 7730 7730
    Performance Travel Speed Load km/h 23 22 26 25 24 24 24 26 26 26
    Lift Speed Load mm/s 220 240 260 260 260 260 260 300 300 300
    Dimensions Total Lenth With Fork mm 6160 7530 8500 9040 9460 9460 9760 8170 8170 8170
    Total Width 　 mm 2250 2750 2930 3060 3060 3360 3360 3600 3600 3600
    Mast Height 　 mm 2950 3520 3930 3970 3970 4060 4150 5040 5040 5040
    Chassis Tyre Front 　 11.00-20-18PR 12.00-24 14.00-24 14.00-24 14.00-24 16.00-25 14.00-24-32PR 4X18.00-25-28PR 4X18.00-25-28PR 4X18.00-25-28PR
    Rear 　 10.00-20-18PR 12.00-20 12.00-24 14.00-24 14.00-24 14.00-24 14.00-24-32PR 2X16.00-25-28PR 2X16.00-25-28PR 2X16.00-25-28PR
    Wheelbase 　 mm 2950 1600 4200 4400 4600 4800 4800 5500 5500 5500
    Service Weight NO LOAD Kg 15500 3880 30000 33500 36500 38000 38000 51000 56000 60000
    Power Engine Model 　 Yuchai Yuchai WeiChai WeiChai WeiChai WeiChai WeiChai WeiChai WeiChai WeiChai
    Cylinders 　 6 6 6 6 6 6 6 6 6 6
    What is the load capacity of heavy-duty forklifts?
    Thanks to diesel engines, heavy-duty forklifts feature high lift height and load capacity up to 50 tons. Our CPCD500 industrial forklifts can lift materials up to 50 tons while maintaining a high travel speed which reaches 26 km/hour under full-loaded conditions.
    What are the common applications of heavy-duty forklifts?
    They are widely used in the mining industry, energy transportation, metal processing (metal materials handling) and construction materials transport.
