Gasoline/LPG Forklift 2-4 Tonne
  • Gasoline/LPG Forklift 2-4 Tonne
  • Gasoline/LPG Forklift 2-4 Tonne

    • Gasoline/LPG Forklift 2-4 Tonne

    T Series

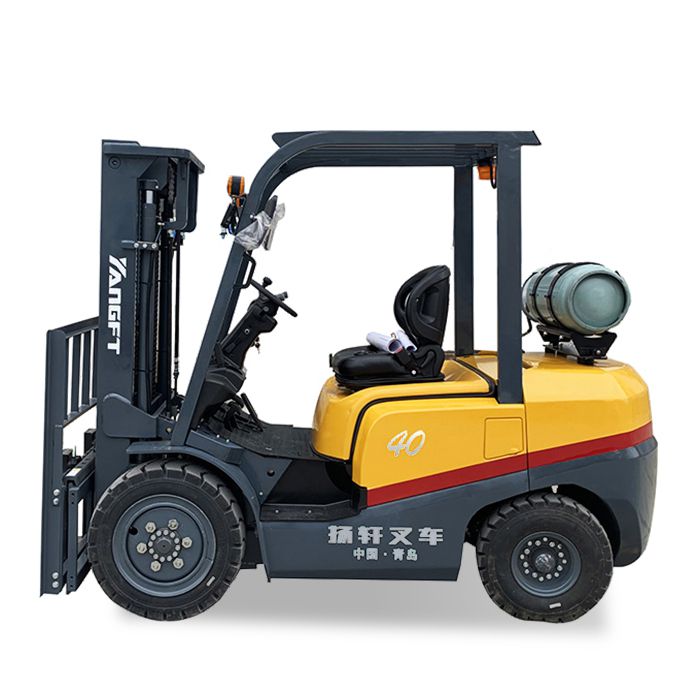

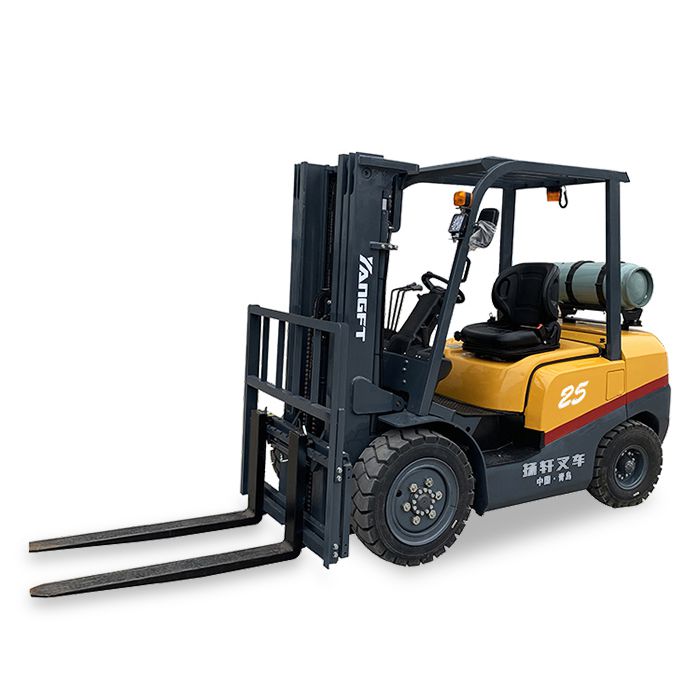

    The 4-cylinder LPG forklift is suitable for material handling jobs in limited space since it boasts a small turning radius. Its load capacity is 2 to 4 tons, with the standard lifting height of 3 meters and the maximum customized lifting height of 8 meters.

    The truck's interior is specially designed with plastic storage compartments for convenient storage of items such as water bottles, notebooks, etc. In addition, the electrical and other systems are integrated into an enclosure with a removable side panel, eliminating the need for lifting equipment during maintenance and inspection. This significantly reduces service costs and simplifies maintenance.

    • Capacity2000-4000 kg
    • Lift Height3000 mm
    • Travel Speed17-18 km/h
    • Min. Turning Radius2240-2530 mm
    Request a Quote
    Features
    • The engine is clean and efficient, meeting the requirements of Tier 3 Emission Standards.
    • The electrical system is integrated with other systems.
    • The detachable side cover design makes it more convenient to inspect and maintain the forklift.
    • Wide steps secure drivers’ safety and convenience to get on and off the truck.
    • Being flexible, reliable and energy-saving, the forklifts provide safe, smart and efficient driving experience.
    Applications

    Material handling in factories and workshops.

    Forklift Truck Components

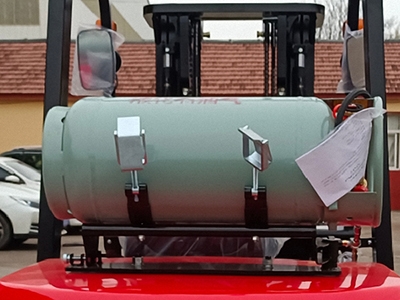

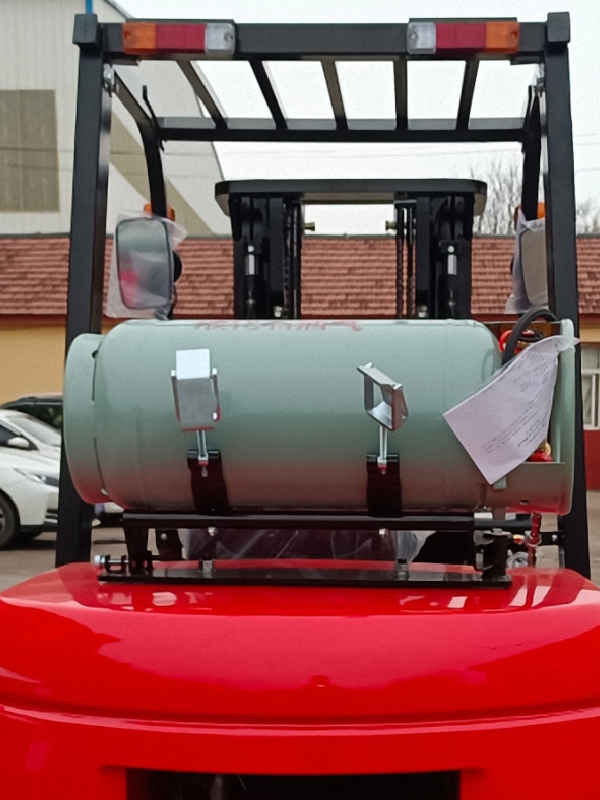

    • LPG & Gasoline Dual-Fuel Engine (Optional)
    • LPG & Gasoline Dual-Fuel Engine (Optional)

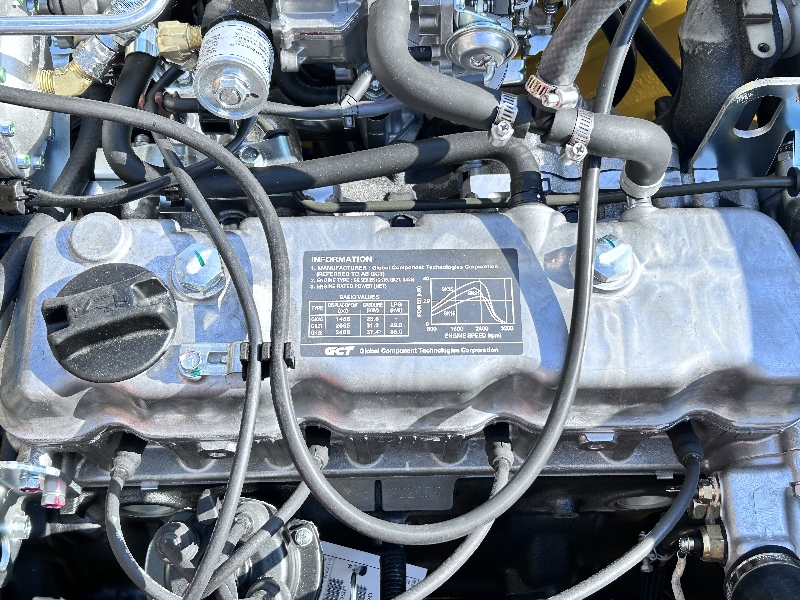

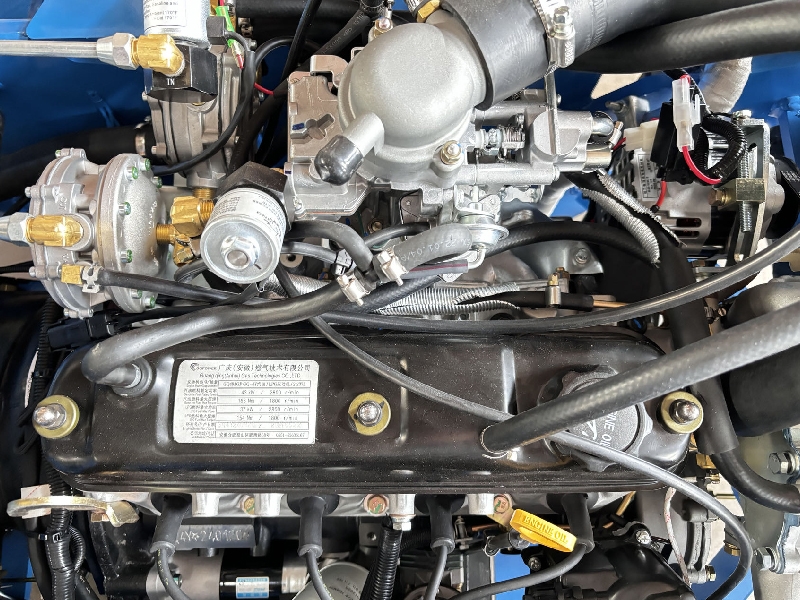

    LPG & Gasoline Dual-Fuel Engine (Optional)

    The advanced dual-fuel system provides flexible, safe, and efficient switching, with LPG as a clean, eco-friendly, and cost-effective fuel option. This system adapts easily to various environments and budget considerations.

    • Seat (Optional)
    • Seat (Optional)

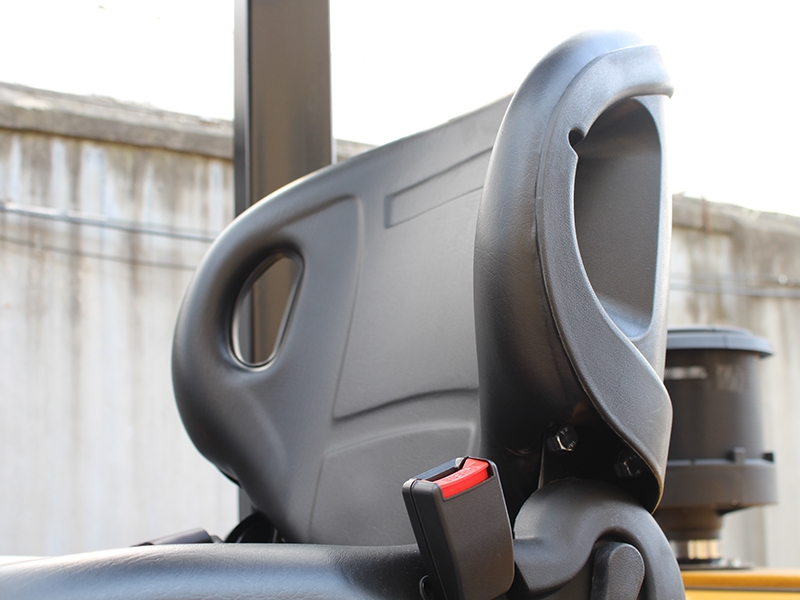

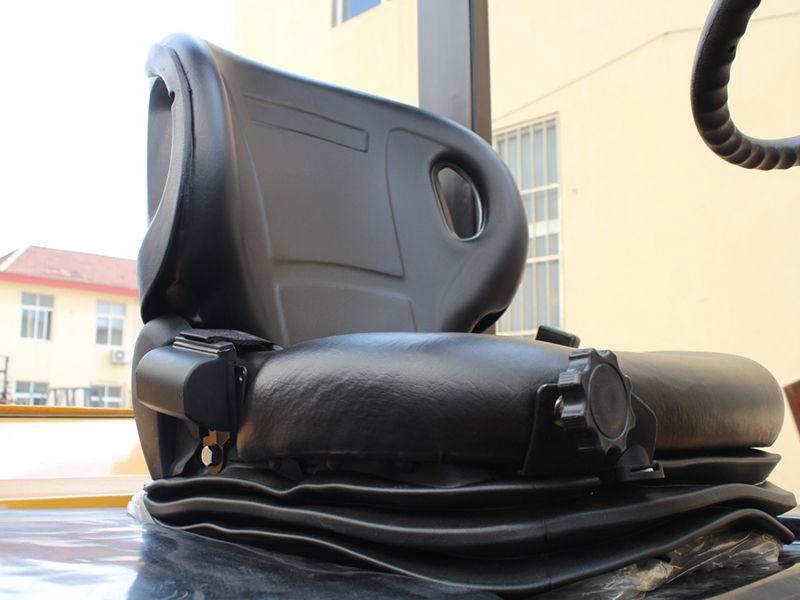

    Seat (Optional)

    Equipped with an OPS system and ergonomic adjustments, offering multiple settings to reduce operator fatigue and enhance comfort during extended use.

    • Mast (Optional)
    • Mast (Optional)

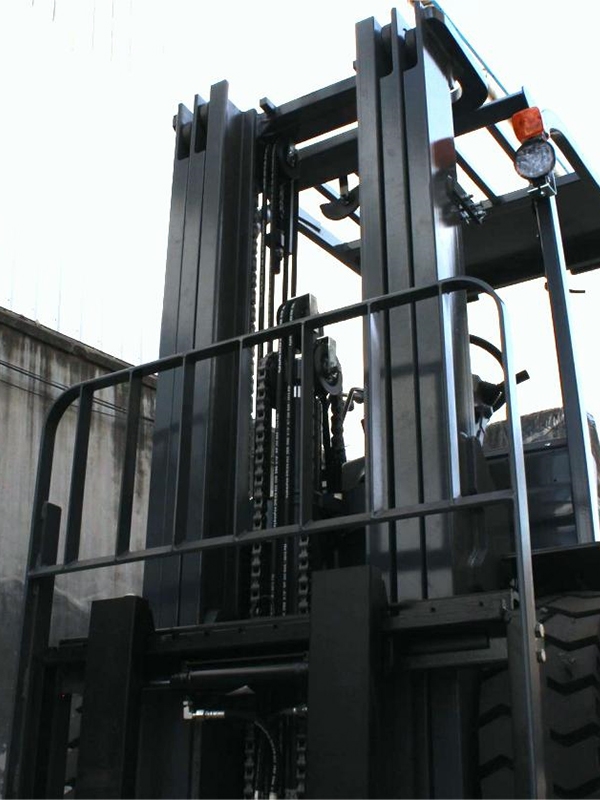

    Mast (Optional)

    Features 2-3 stage standard masts and multi-stage full free lift masts, providing high levels of customization to accommodate various operational requirements.

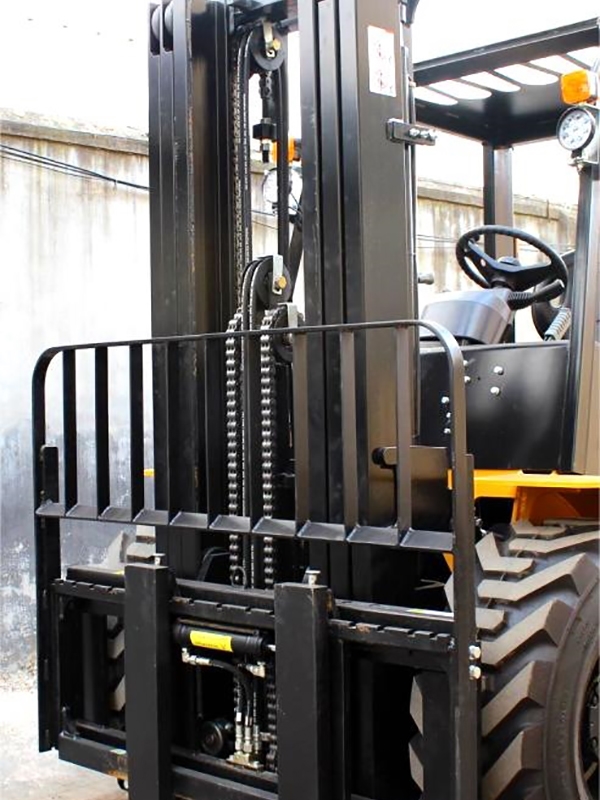

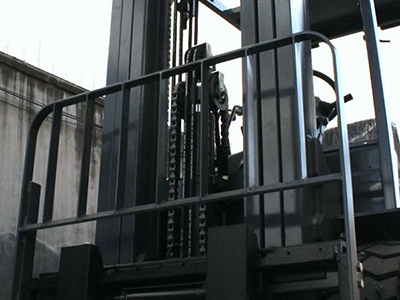

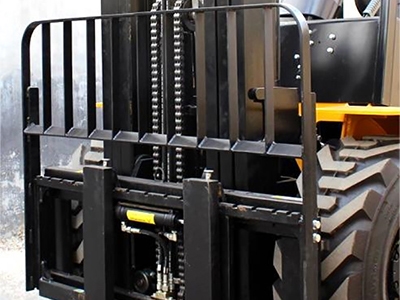

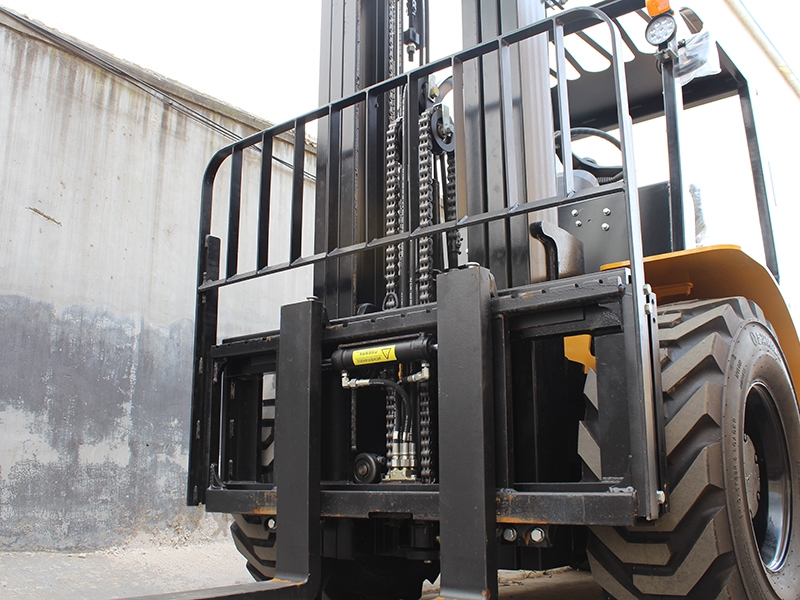

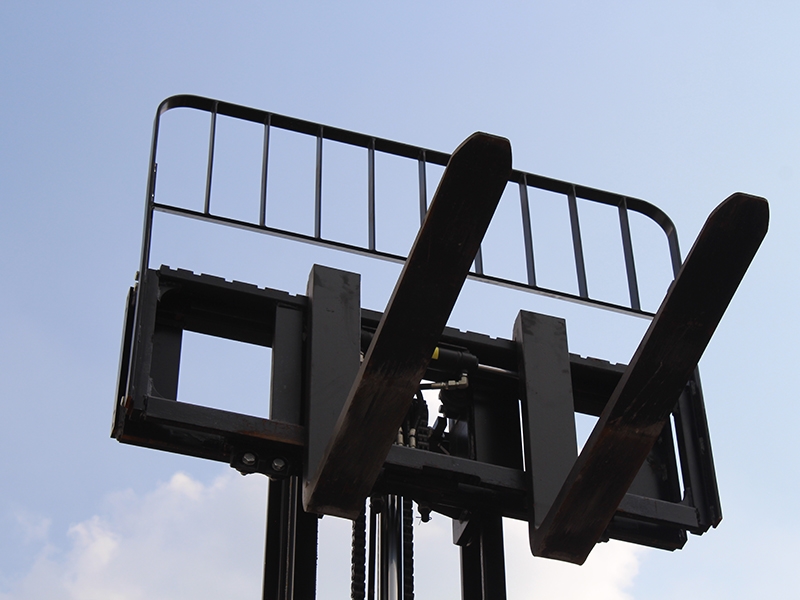

    • Load-BackrestBackrest
    • Load-Backrest

    Load-Backrest

    Designed to prevent cargo from slipping, this feature enhances safety during operation.

    • Control system (Optional)
    • Control system (Optional)

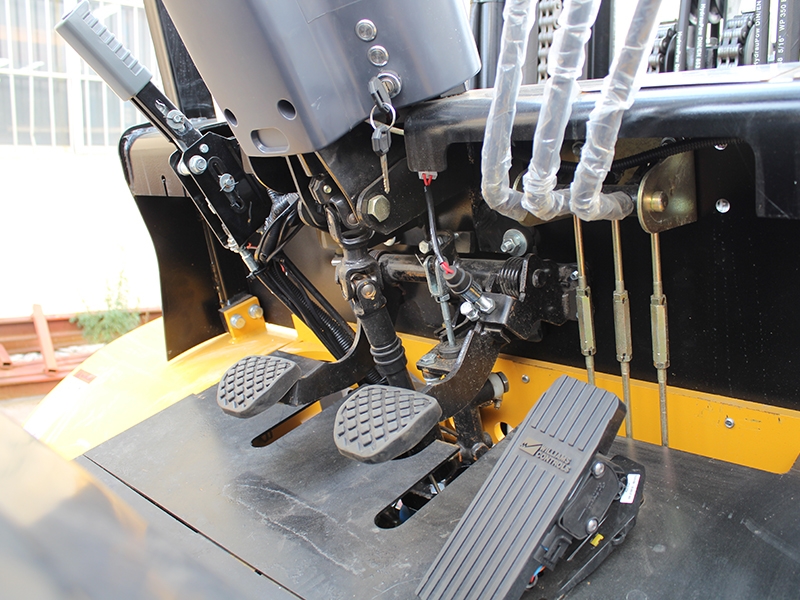

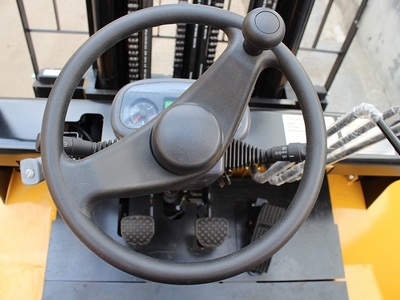

    Control System (Optional)

    The integrated dashboard, combined with an ergonomically designed steering wheel, throttle, and brake controls, ensures safe, convenient, and comfortable operation.

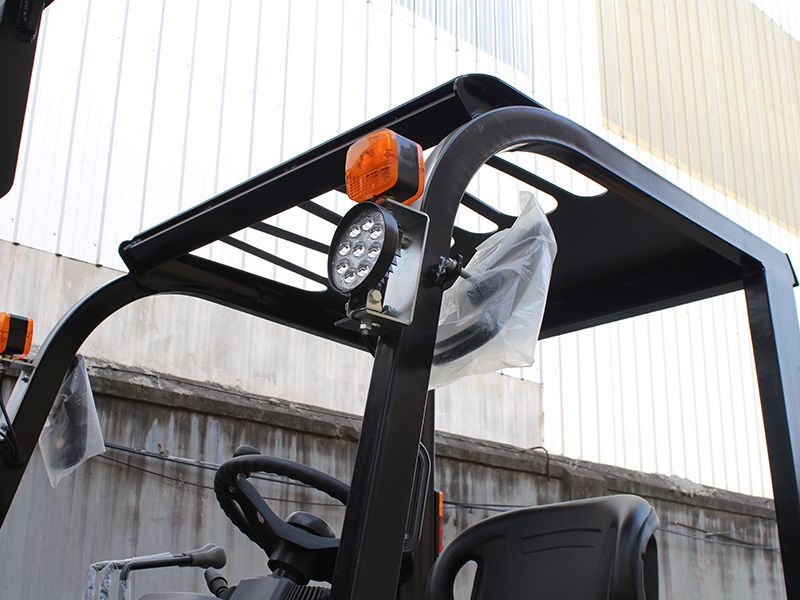

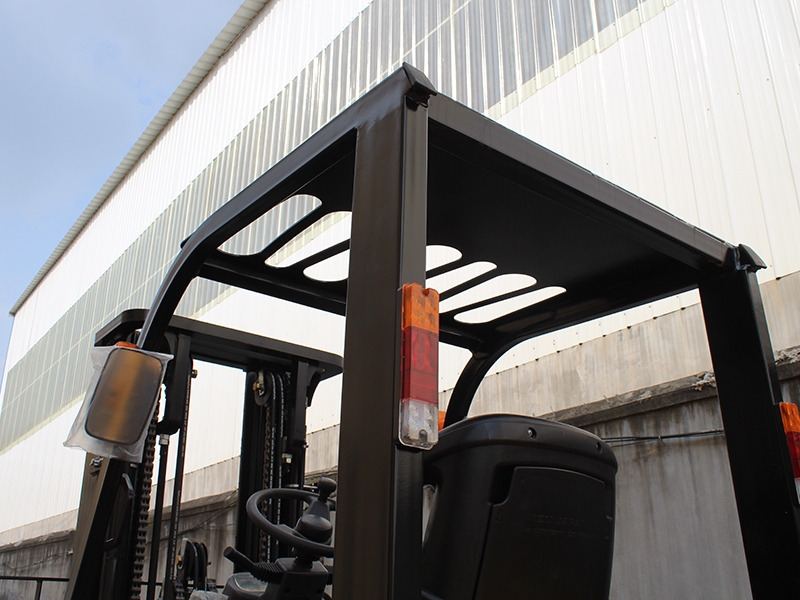

    • Overhead Guard
    • Overhead Guard

    Overhead Guard

    Designed to prioritize driver safety, it also supports customization options for increased width and height to meet specific operational needs.

    • Control Valve
    • Control Valve

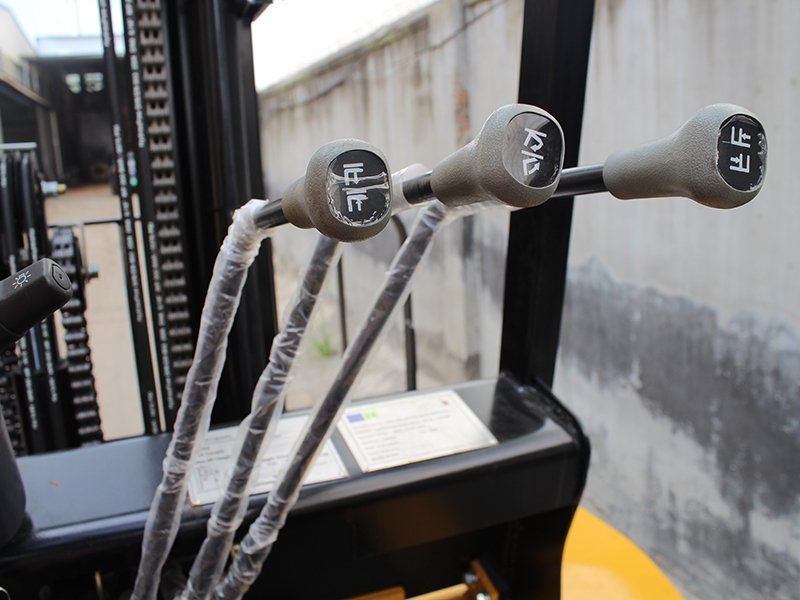

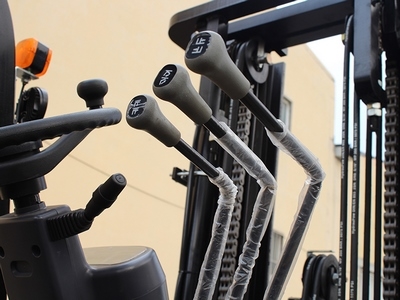

    Control Valve

    Thoughtfully designed, this control valve offers simple operation and customizable options to meet a variety of needs.

    • Air Filter & Air Tank
    • Air Filter & Air Tank

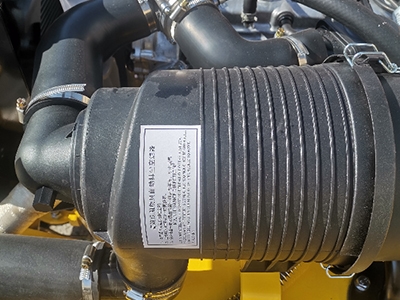

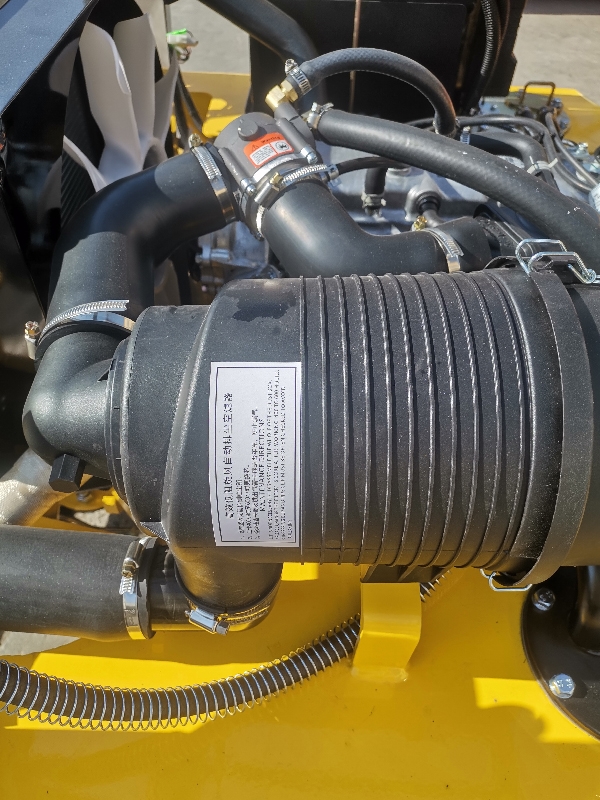

    Air Filter & Air Tank

    The air filter effectively removes impurities from the air, improving engine efficiency and extending its lifespan. The air tank is constructed from high-strength, corrosion-resistant steel, providing excellent sealing and enhanced safety.

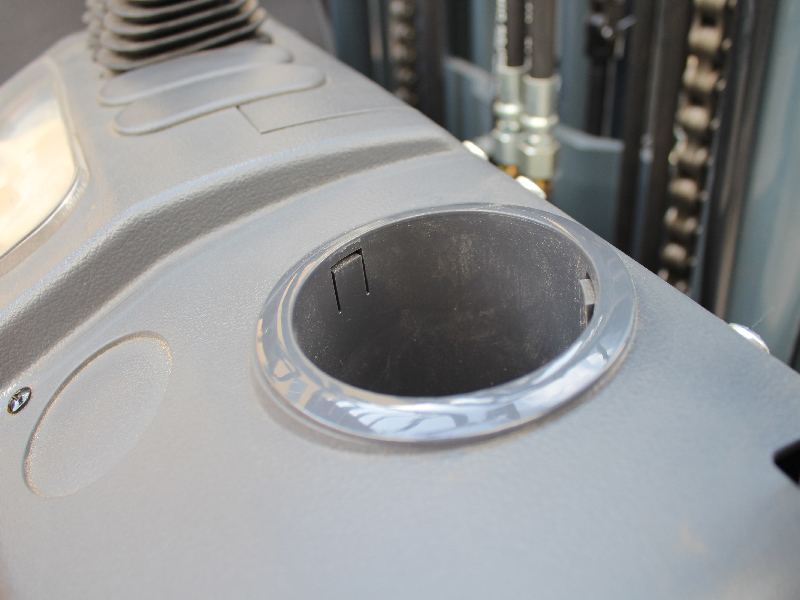

    • Storage Compartment
    • Storage Compartment

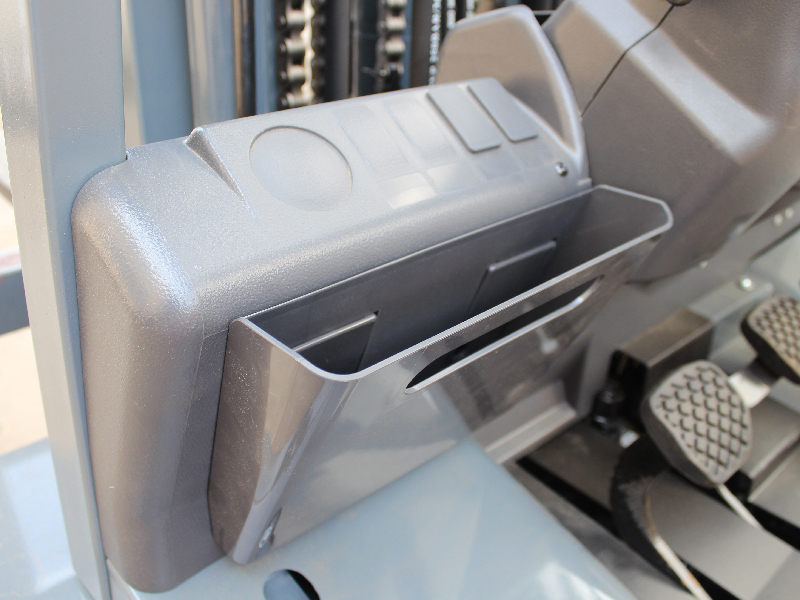

    Storage Compartment

    Designed for convenient access, this compartment is perfect for holding small items like water bottles, documents, and pens.

    Technical Specifications
    Model CPC(D)20 CPC(D)25 CPC(D)30 CPC(D)35 CPC(D)40
    Characteristics Power Gasoline/LPG
    Capacity kg 2000 2500 3000 3500 4000
    Load Centre mm 500 500 500 500 500
    Lift Height mm 3000 3000 3000 3000 3000
    Min. Turning Radius mm 2240 2240 2445 2495 2530
    Performance Travel Speed Load km/h 17 17 18 18 18
    Lift Speed Load mm/s 550 550 450 450 380
    Dimensions Total Width mm 1150 1150 1225 1225 1365
    Max. Height mm 4220 4220 4265 4265 4265
    Mast Height mm 3000 3000 3000 3000 3000
    Chassis Tyre Front 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR 28×9-15-12PR 250-15-16PR
    Rear 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
    Wheelbase mm 1600 1600 1700 1700 1800
    Service Weight No load kg 3330 3670 4380 4780 5050
    Power Engine Model Isuzu C240 Xinchai C490 Isuzu C240 Mitsubishi S4S Isuzu 4JG2
    Rated power kW/r.p.m 34.3/2500 36.8/2650 34.3/2500 35.4/2250 44.8/2450
    Rated torque Nm/r.p.m 138/1800 160/1800 138/1800 170/1700 186/1800
    Cylinders 4 4 4 4 4
