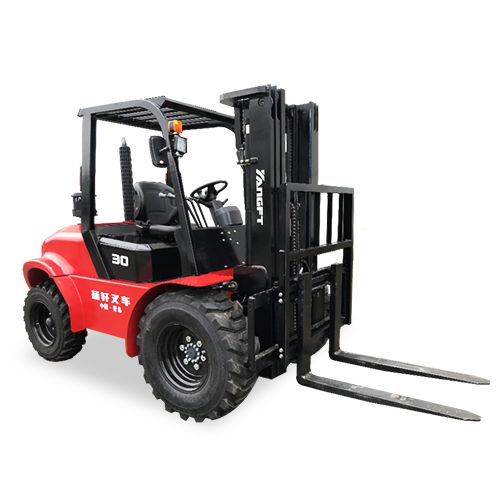

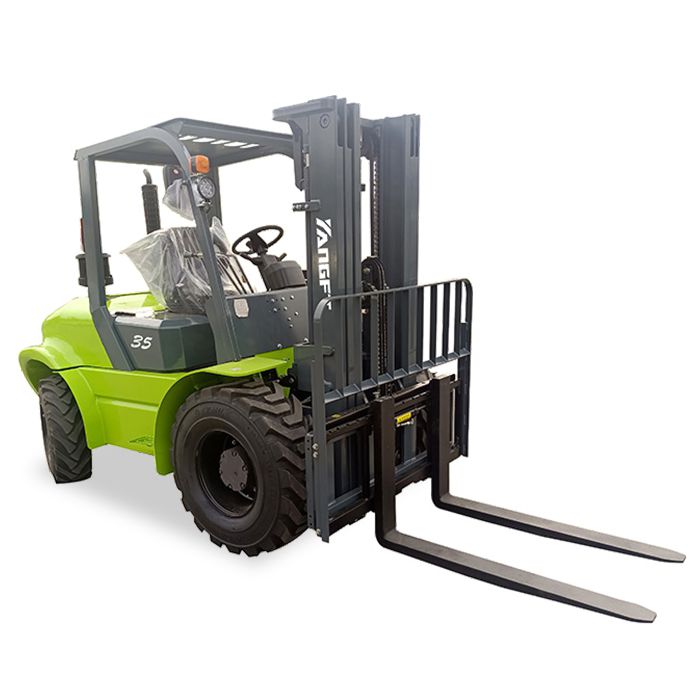

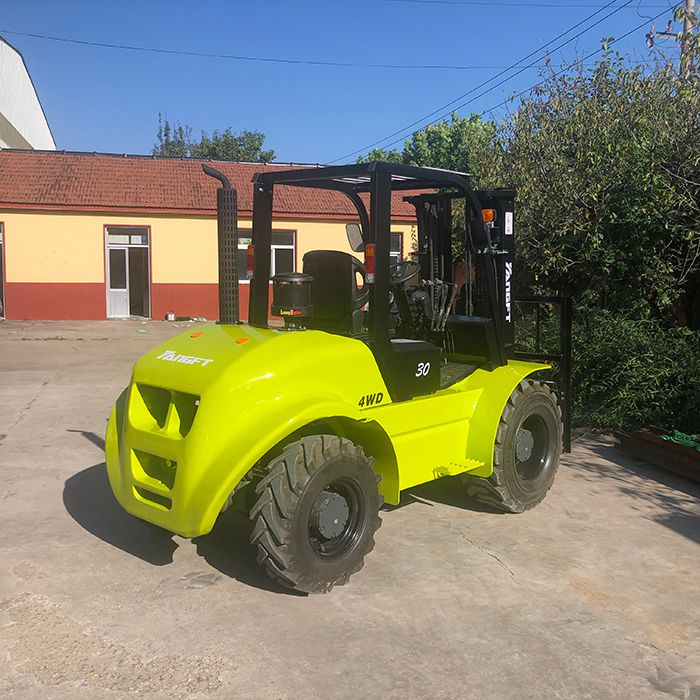

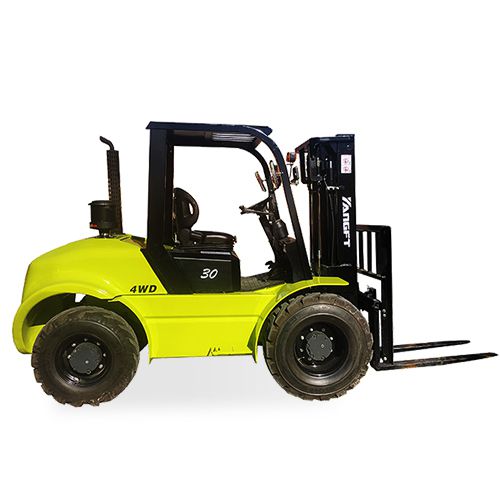

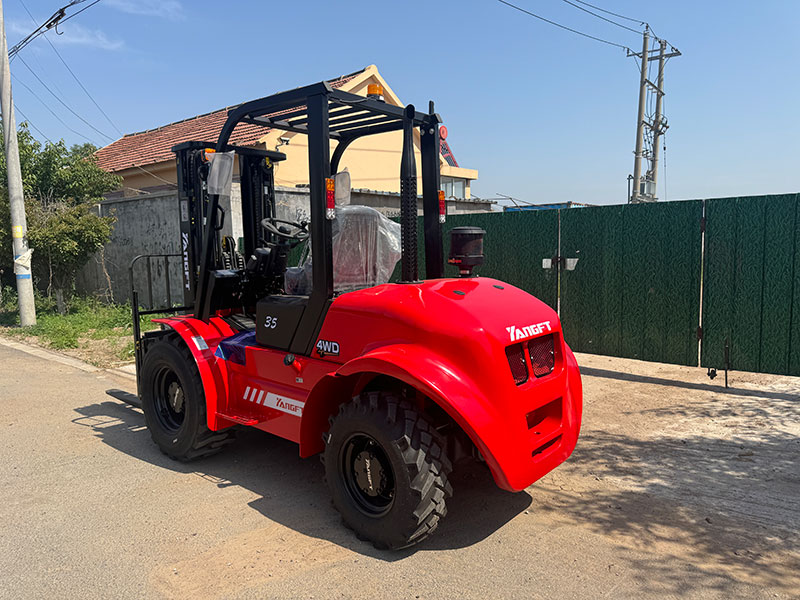

Features

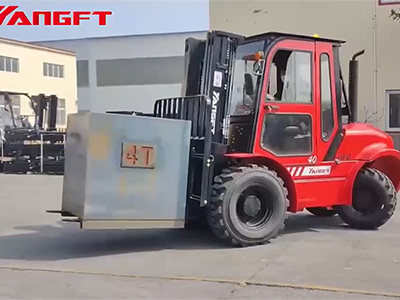

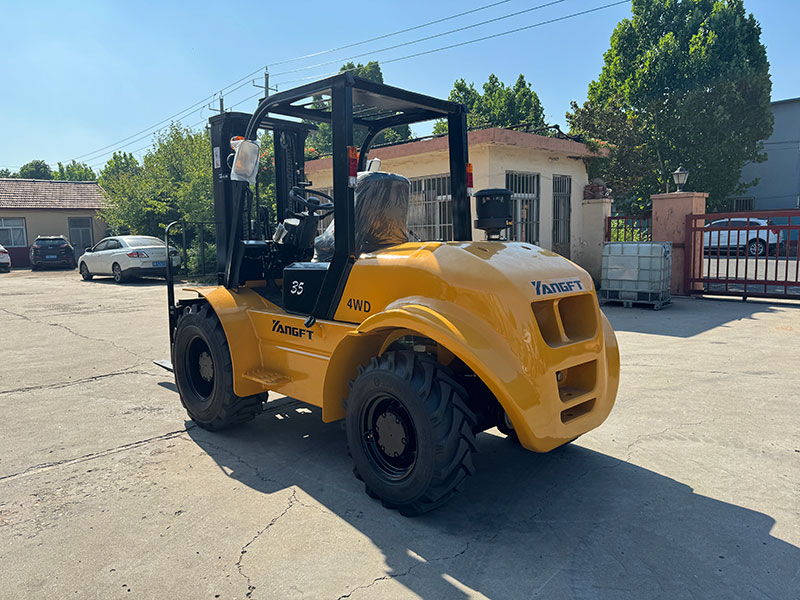

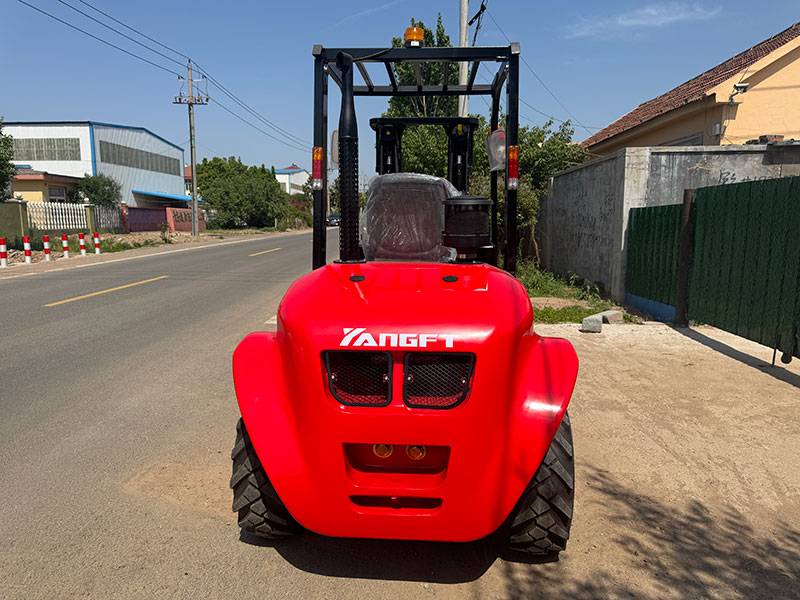

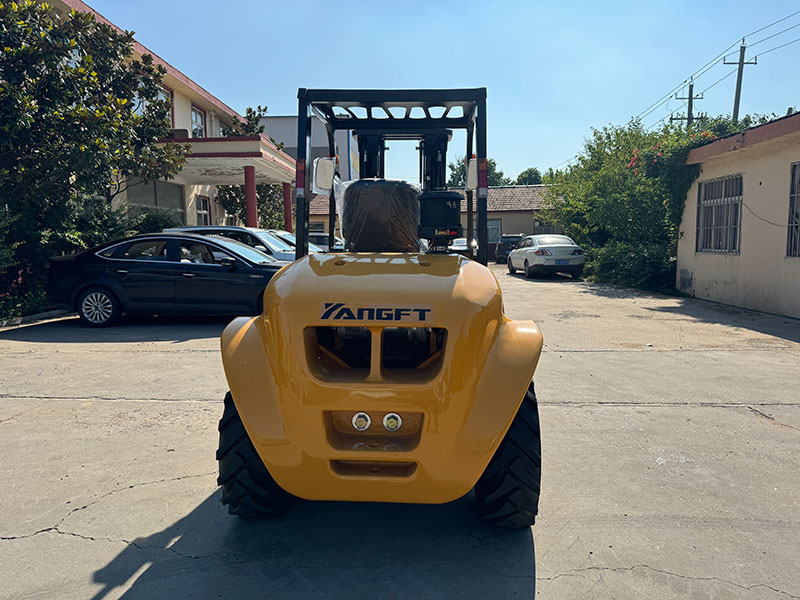

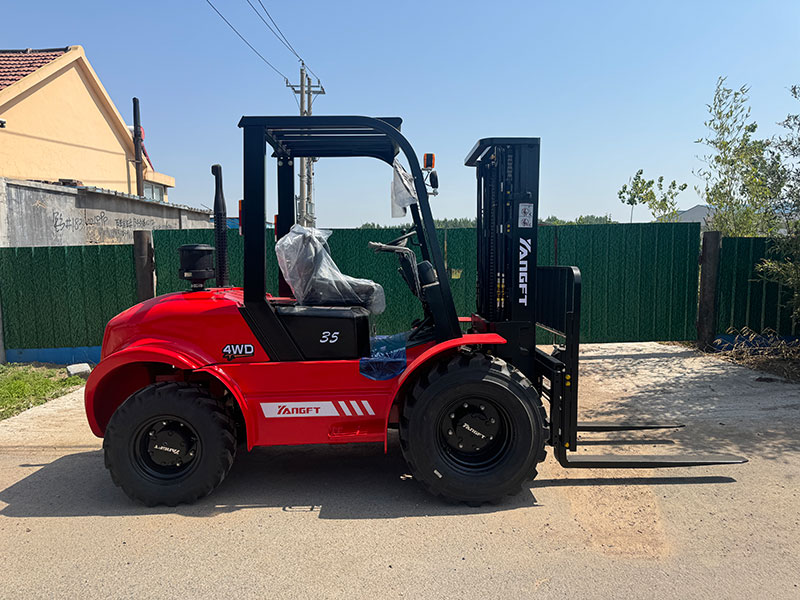

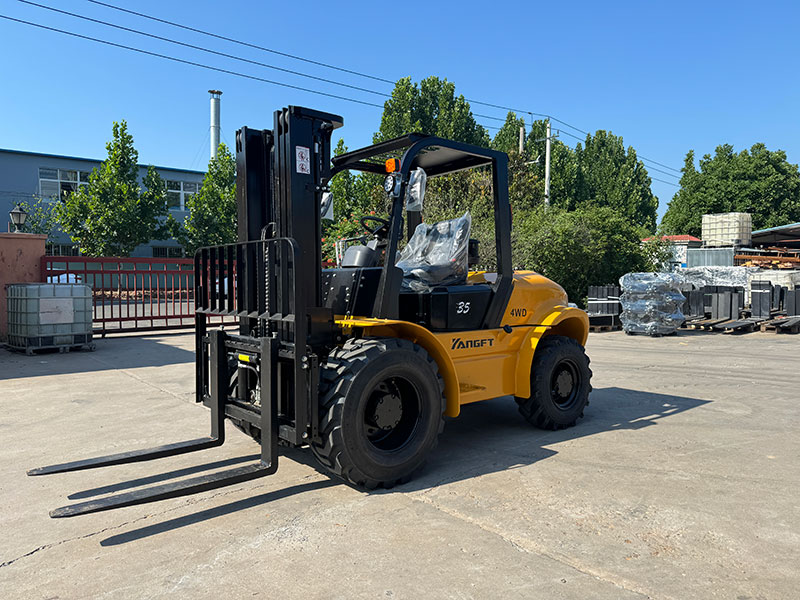

- The off-road forklift designed is suitable for unloading materials in outdoor terrains with complex road conditions, such as mines, farms, airports, docks, and stations.
- The wide mast design enhances visibility and increases stability and safety, making it ideal for outdoor operations.
- The upgraded cooling system is highly reliable, providing better heat dissipation to support continuous operation.
- This model offers excellent maneuverability, off-road performance, and reliability, enabling operators to work comfortably in any environment, especially in off-road situations.
Applications
Material handling jobs in farms, mine, airports, ports, train stations and complex outdoor terrains.
Forklift Truck Components

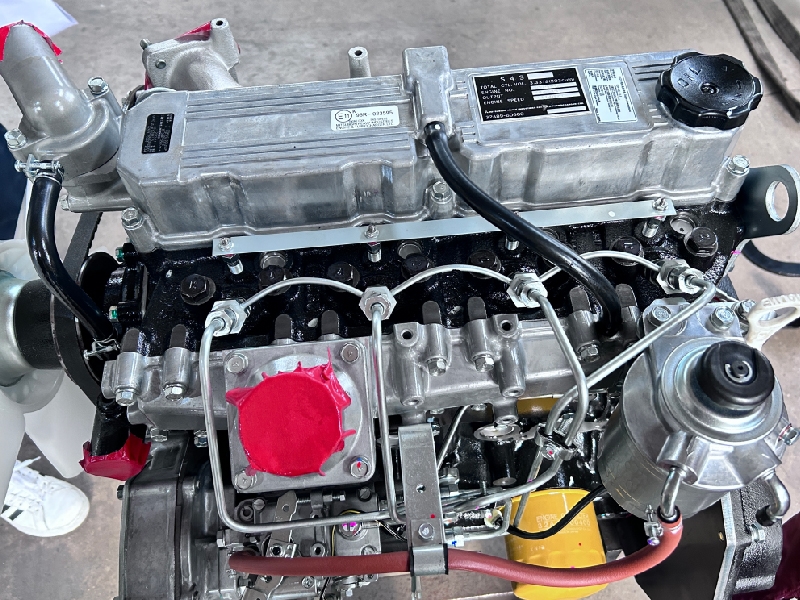

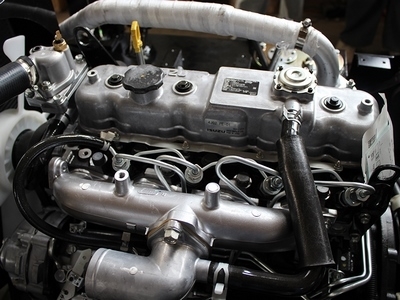

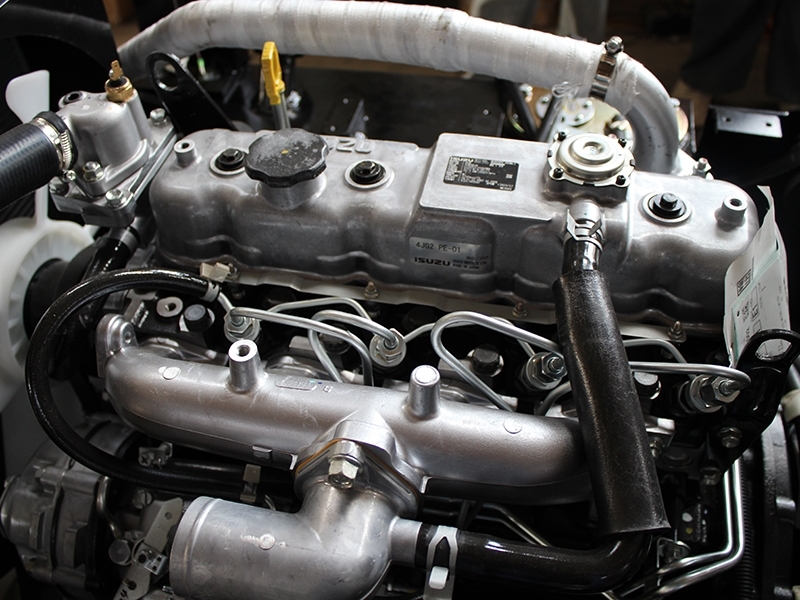

Engine (Optional)
Optional advanced engines from ISUZU, Mitsubishi, Kubota, Yanmar, and Euro3/5 are available, offering economical and environmentally friendly performance. These engines are designed for reliability and durability, making maintenance and servicing more convenient.

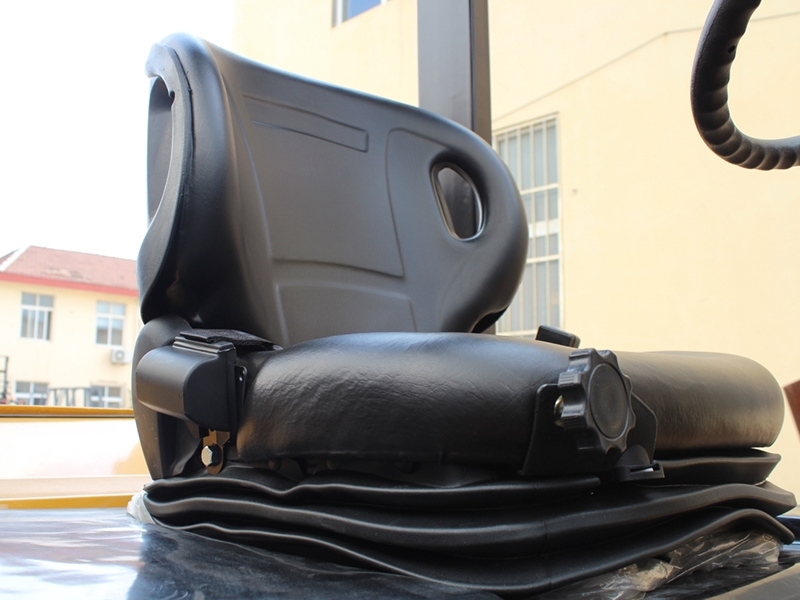

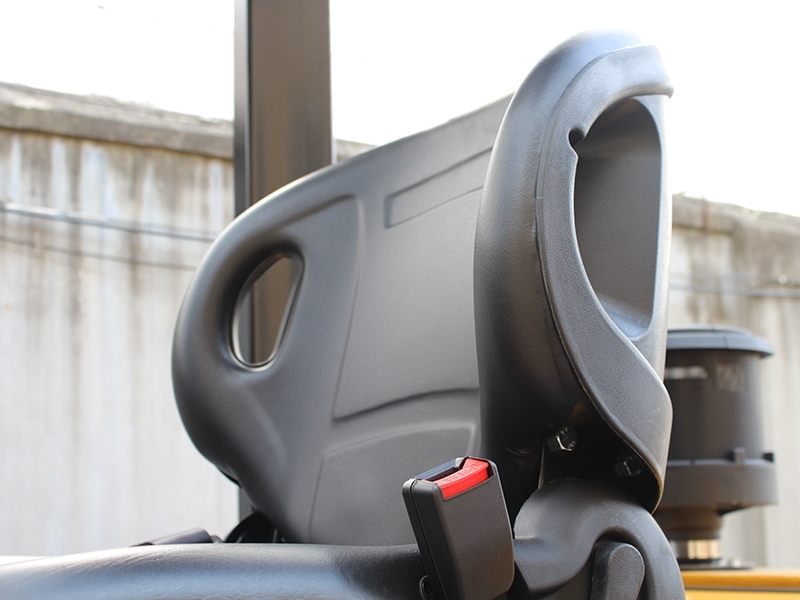

Seat (Optional)
Equipped with an OPS system and ergonomic design, it features multiple adjustable settings to alleviate operator fatigue and enhance comfort during long hours of driving.

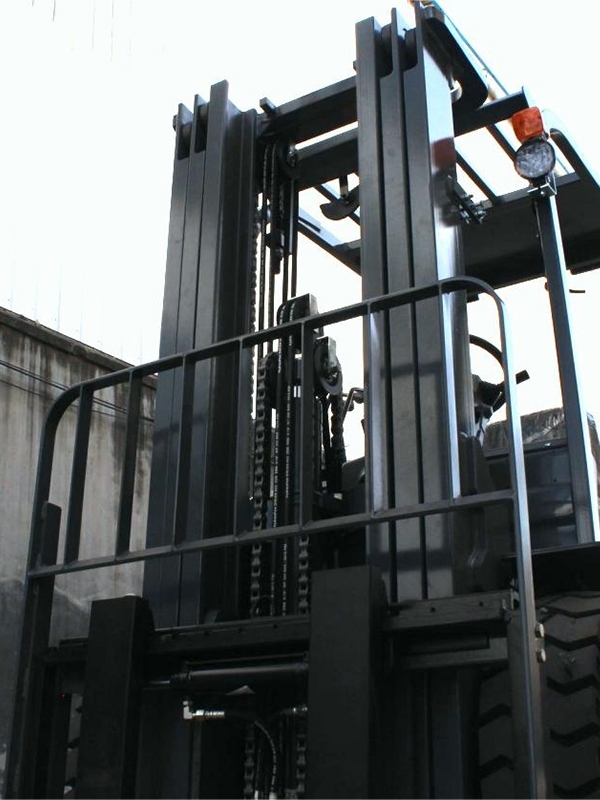

Mast (Optional)
Includes 2-3 stage standard masts and multi-stage full free lift masts, offering a high degree of customization to accommodate various operational requirements.

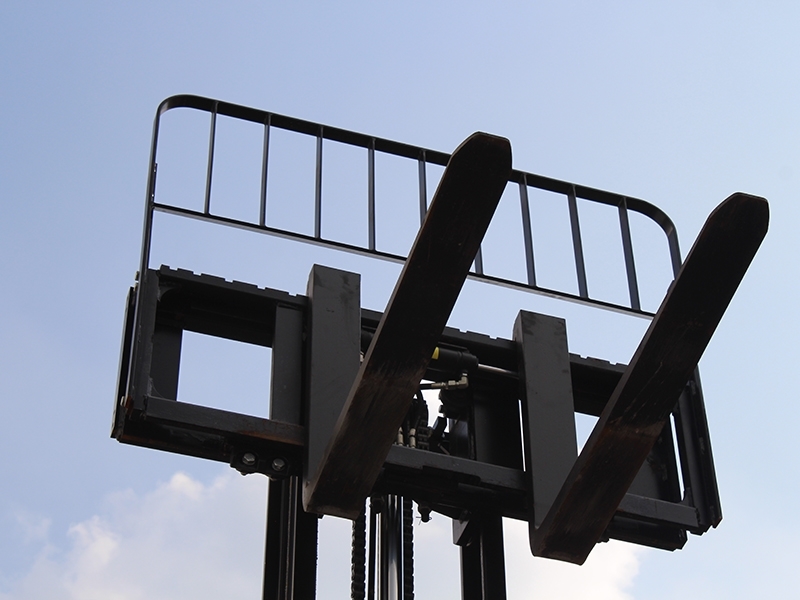

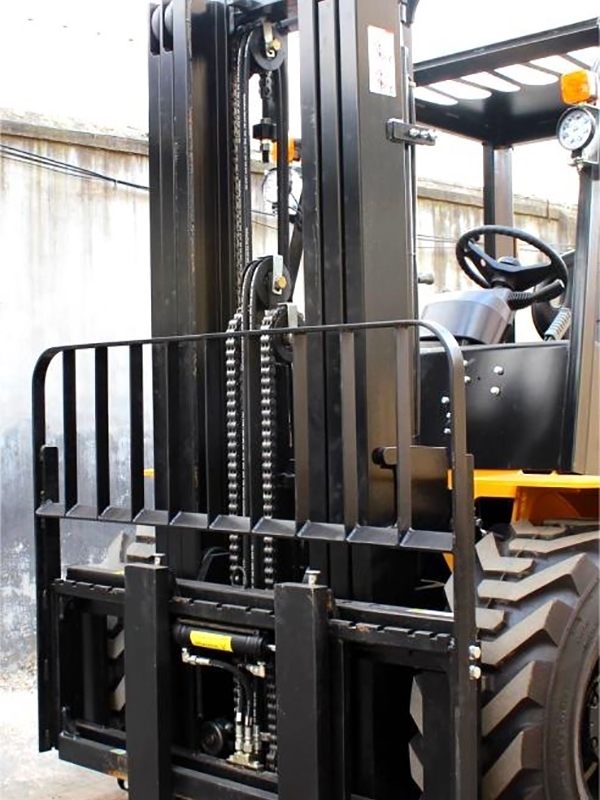

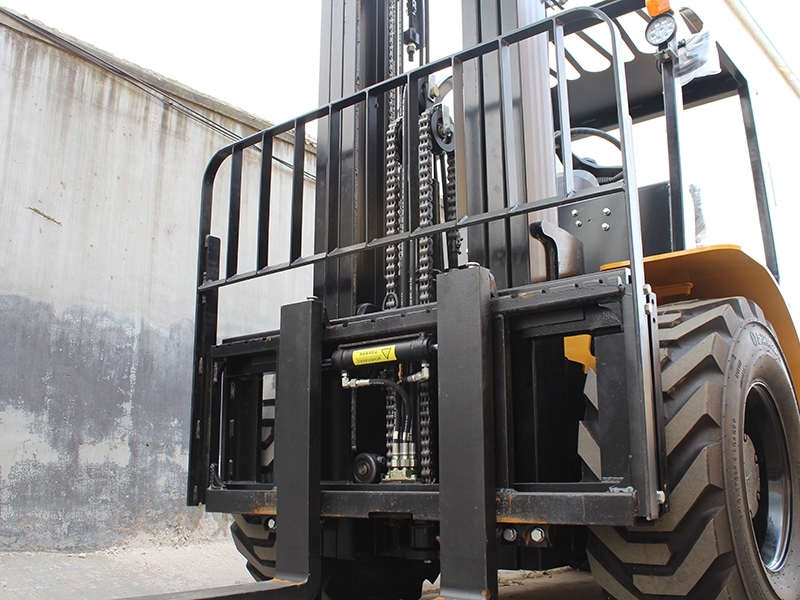

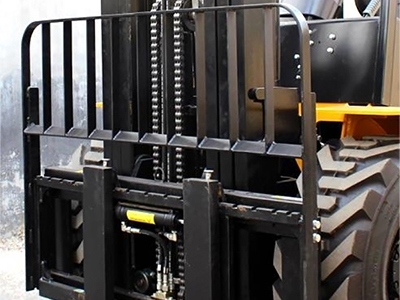

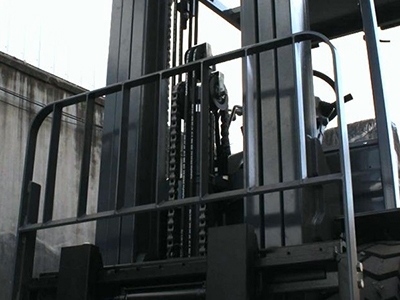

Load-Backrest
Designed to prevent cargo slippage, this feature enhances safety during operations.

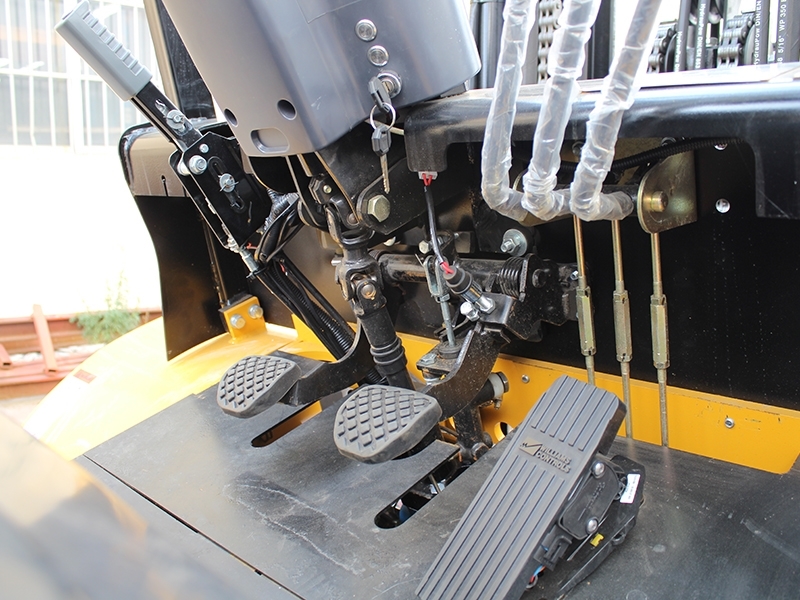

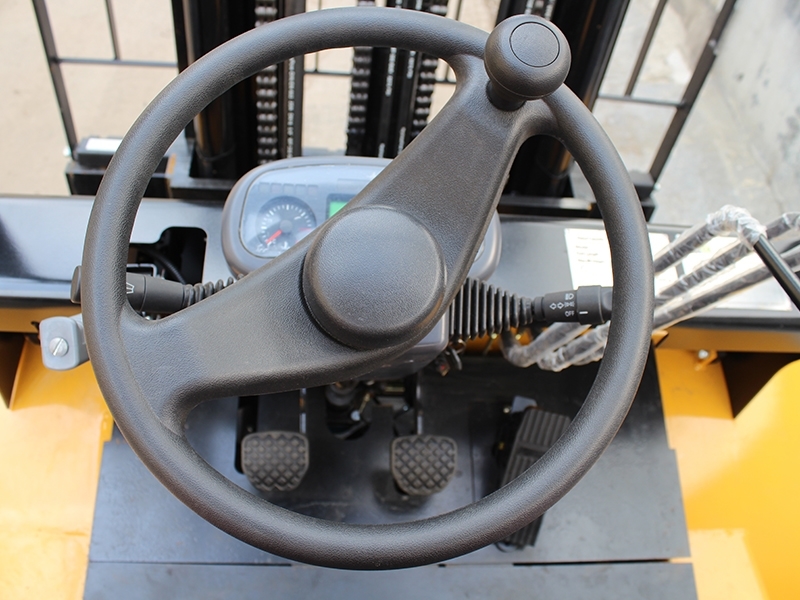

Control System (Optional)
The integrated dashboard, combined with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation for the user.

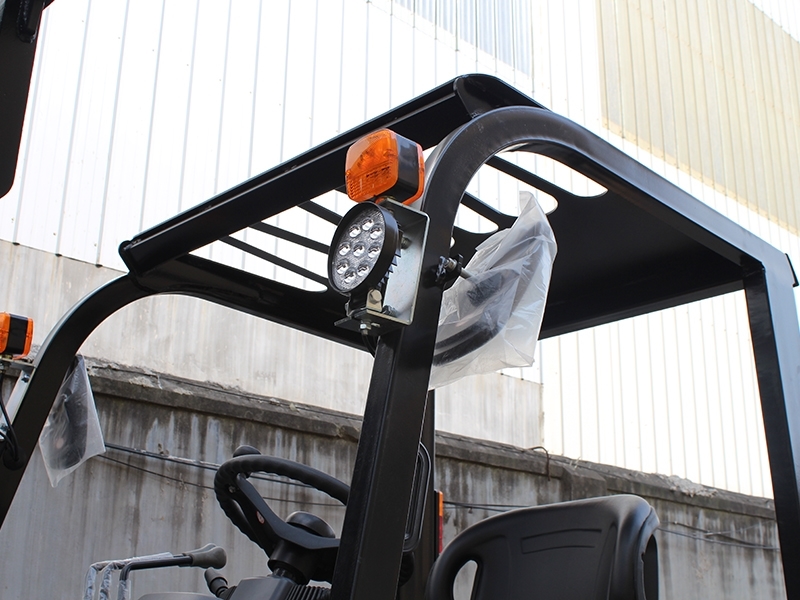

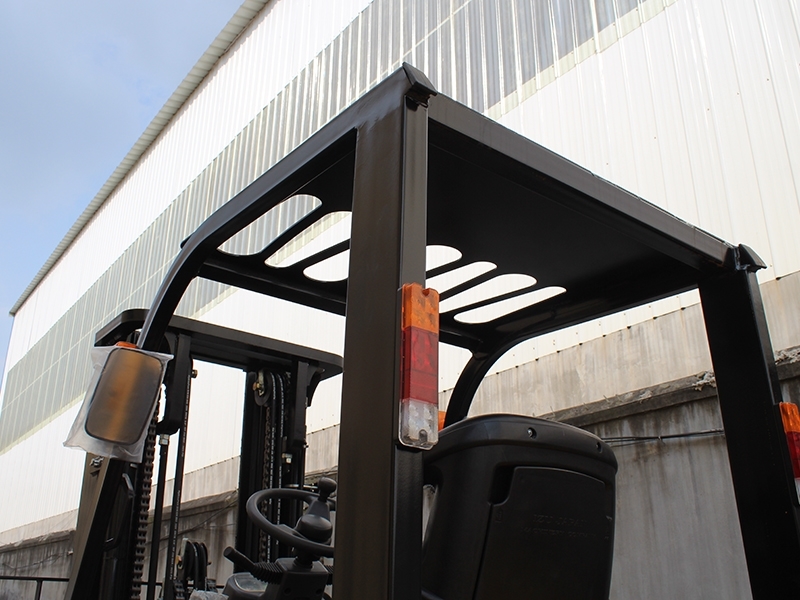

Overhead Guard
Engineered to ensure driver safety, offers customizable options for increased width and height to meet specific operational requirements.

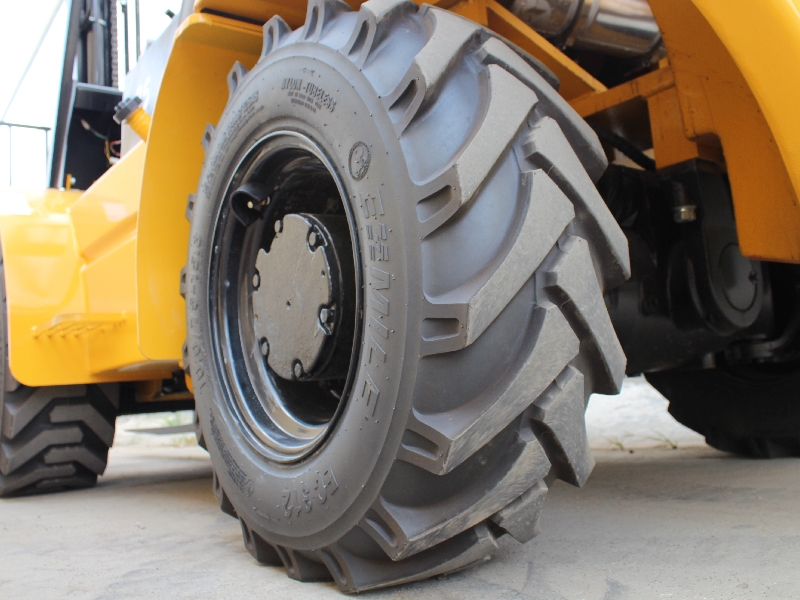

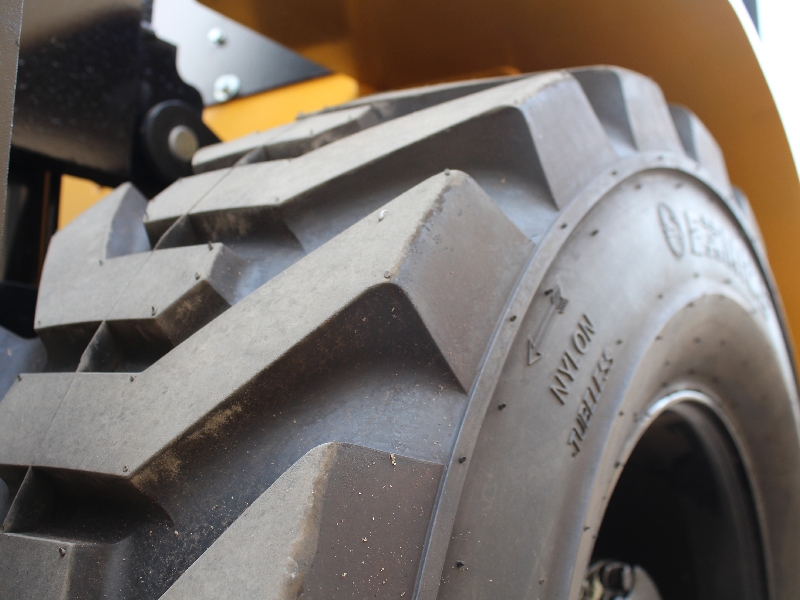

Off-road Tire
The off-road tires are specially designed with a wider profile and deeper tread patterns, providing enhanced traction, greater burst capability, and improved skid resistance.

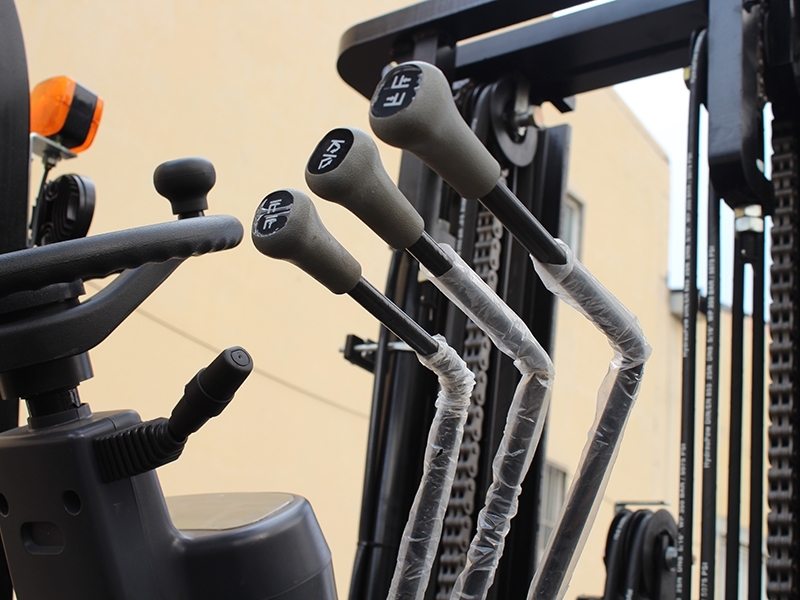

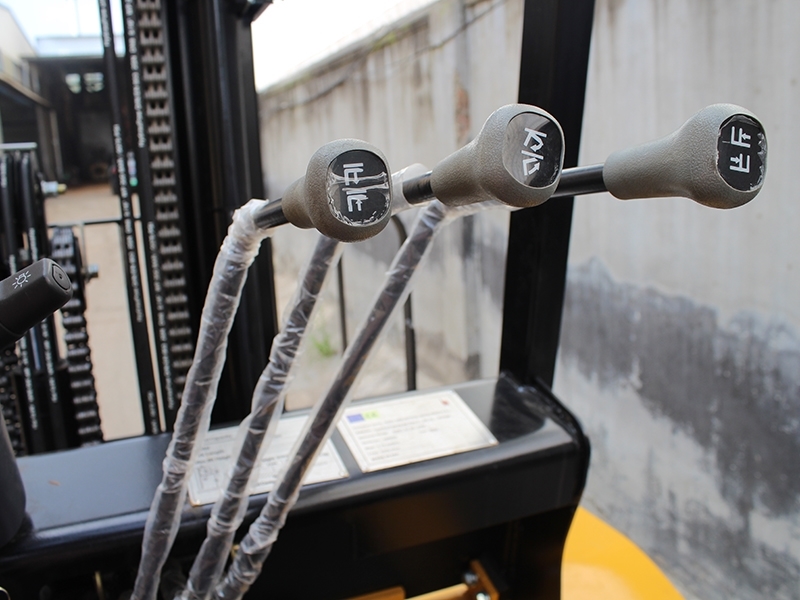

Control Valve (Optional)
With a smart, streamlined design, this control valve is simple and intuitive to operate and can be customized to meet unique requirements.

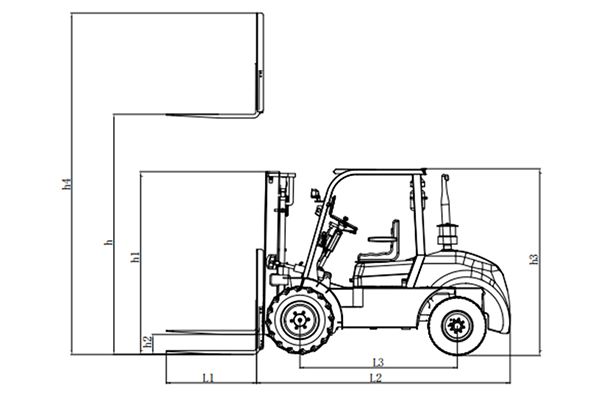

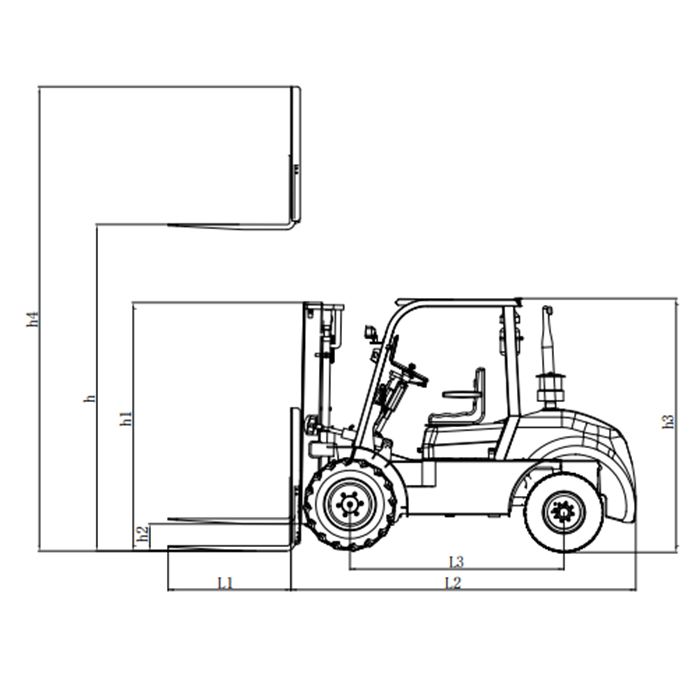

Technical Specifications
Model |
FD30-F
|
FD35-F
|
FD40-F
|
Characteristics |
Power |
|
|
|
|
|
|
Capacity |
|
|
kg |
3000 |
3500 |
4000 |
Load Centre |
|
|
mm |
500 |
500 |
500 |
Lift Height |
|
h |
mm |
3000 |
3000 |
3000 |

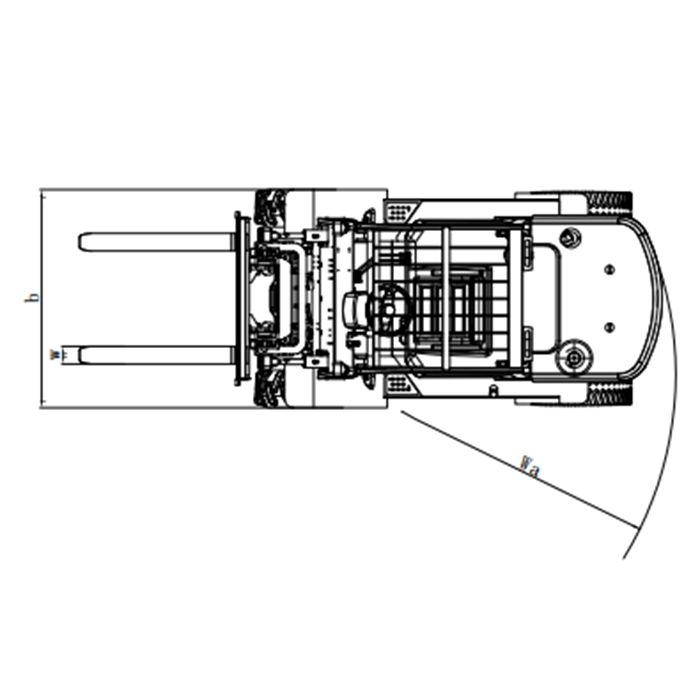

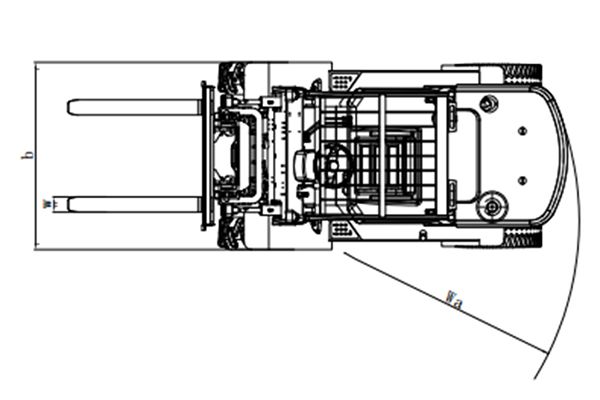

Min. Turning Radius |
|
Wa |
mm |
3120 |
3120 |
3120 |
Performance |
Travel Speed |
Load |
|
km/h |
20 |
20 |
20 |
Lift Speed |
Load |
|
mm/s |
530 |
480 |
480 |
Dimension |
Total Length |
With fork |
L1+L2 |
mm |
4136 |
4151 |
4151 |
Without fork |
h1 |
mm |
3081 |
3081 |
3081 |
Total Width |
|
b |
mm |
1600 |
1600 |
1600 |
Max. Lifting Height |
|
h4 |
mm |
4350 |
4350 |
4350 |
Mast Height |
|
h1 |
mm |
2235 |
2235 |
2235 |
Chassis |
Tyre |
Front |
|
|
14-17.5-14PR |
14-17.5-14PR |
14-17.5-14PR |
Rear |
|
|
10.0/75-15.3 |
10.0/75-15.3 |
10.0/75-15.3 |
Wheelbase |
|
L3 |
mm |
1880 |
1880 |
1880 |
Service Weight |
No load |
|
Kg |
5250 |
5545 |
5800 |
Power |
Engine |
Model |
|
|
A498BPG |
A498BPG |
A498BPG |
Rated power |
|
kW/r |
45/2500 |
45/2500 |
45/2500 |
Rated torque |
|
Nm/r.p.m |
193/1600-1800 |
193/1600-1800 |
193/1600-1800 |
